POWR
TR
4-23
BRAKE
SDN4500
SDN4510
CAUTION:
Disc brake components rarely require disassem-
bly. DO NOT:
• Do not disassemble components unless abso-
lutely necessary.
• Do not use solvents on internal brake compo-
nents.
• Do not use contaminated brake fluid for clean-
ing.
Use only clean brake fluid.
• Do not allow brake fluid to contact the eyes,
otherwise eye injury may occur.
• Do not allow brake fluid to contact painted
surfaces or plastic parts otherwise damage
may occur.
• Do not disconnect any hydraulic connection,
otherwise the entire system must be disas-
sembled, drained, cleaned, and then properly
filled and bled after reassembly.
BRAKE PAD REPLACEMENT
NOTE:
It is not necessary to disassemble the brake cali-
per and brake hose in order to replace the brake
pads.

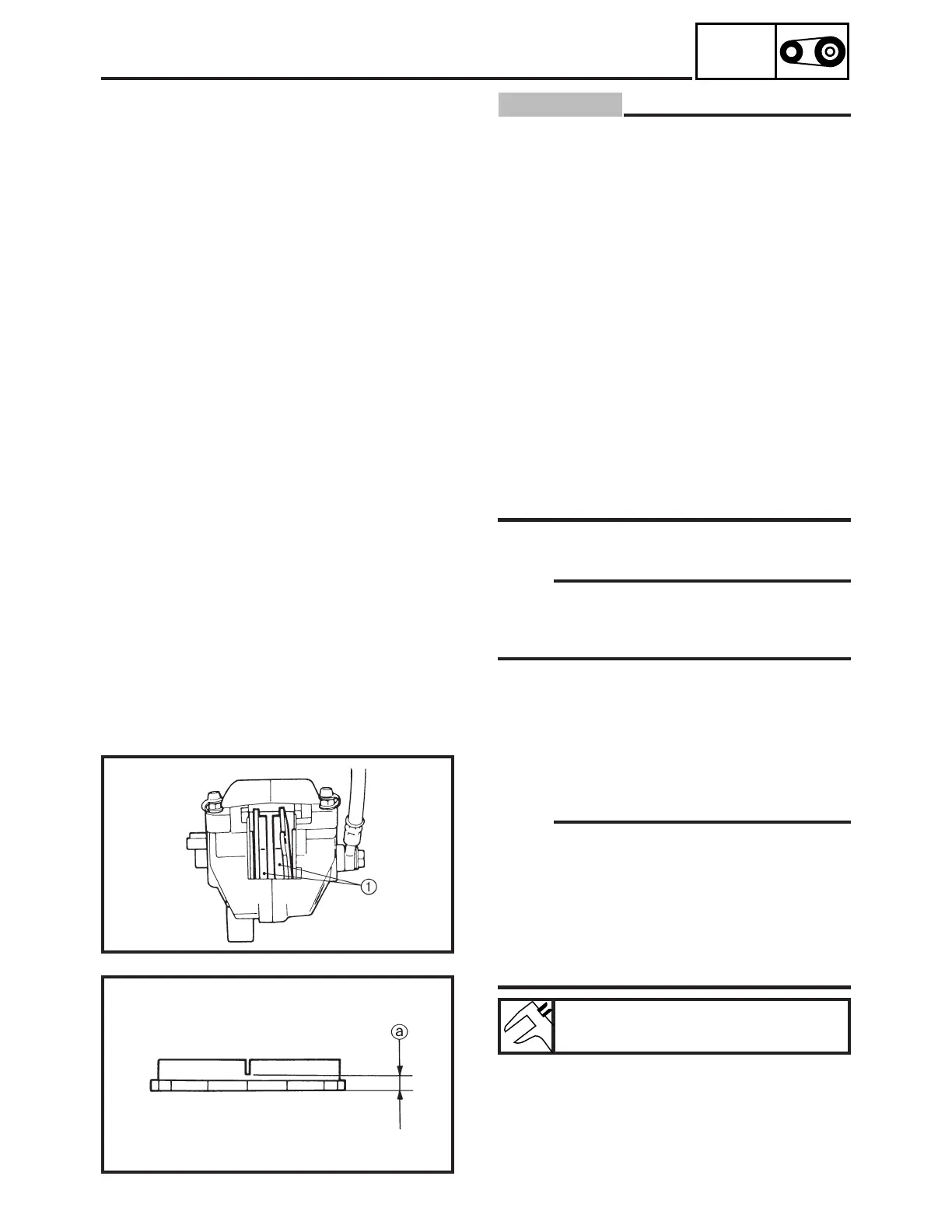

1. Remove:
• Brake pads 1
NOTE:
• Do not depress the brake lever when the caliper
or disc is off the machine otherwise the brake
pads will be forced shut.
• Install a new brake pad spring and shims when
the brake pads are replaced.
• Replace the pads as a set if either one is found
to be worn to the wear limit a.
Wear limit a:
4.7 mm (0.19 in)
