Yamaha SRX700D - Brake Caliper Disassembly

POWR
TR
4-26
BRAKE
SDN4550
Q’ty
1
1
1
2
2
2
2
4
2
Remarks
Remove the parts in the order listed below.
For assembly, reverse the disassembly pro-
cedure.
Order
1
2
3
4
5
6
7
8
9
Job name/Part name

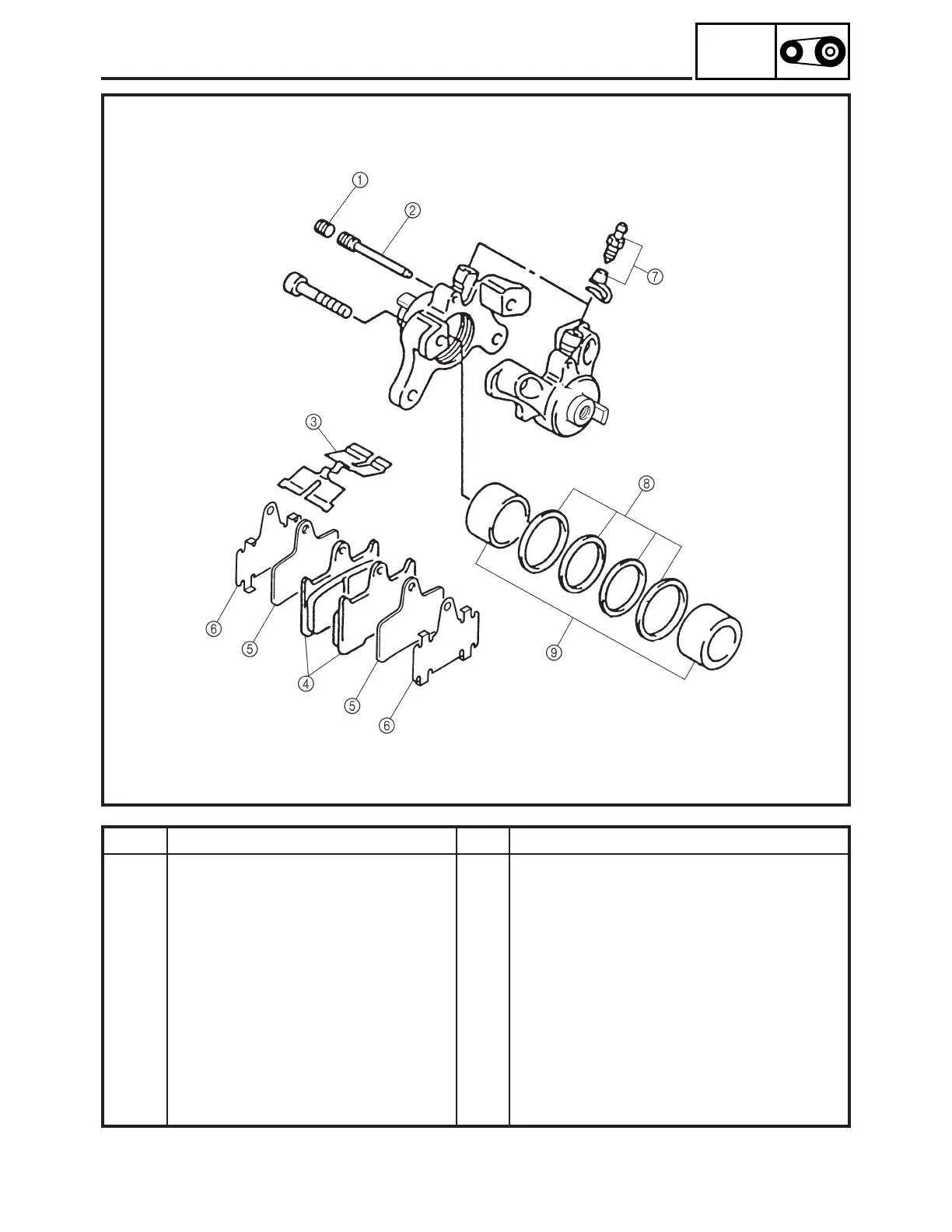

Brake caliper disassembly
Cap bolt
Retaining pin
Pad spring
Brake pad
Shim 1
Shim 2
Bleed screw
Oil seal
Piston
