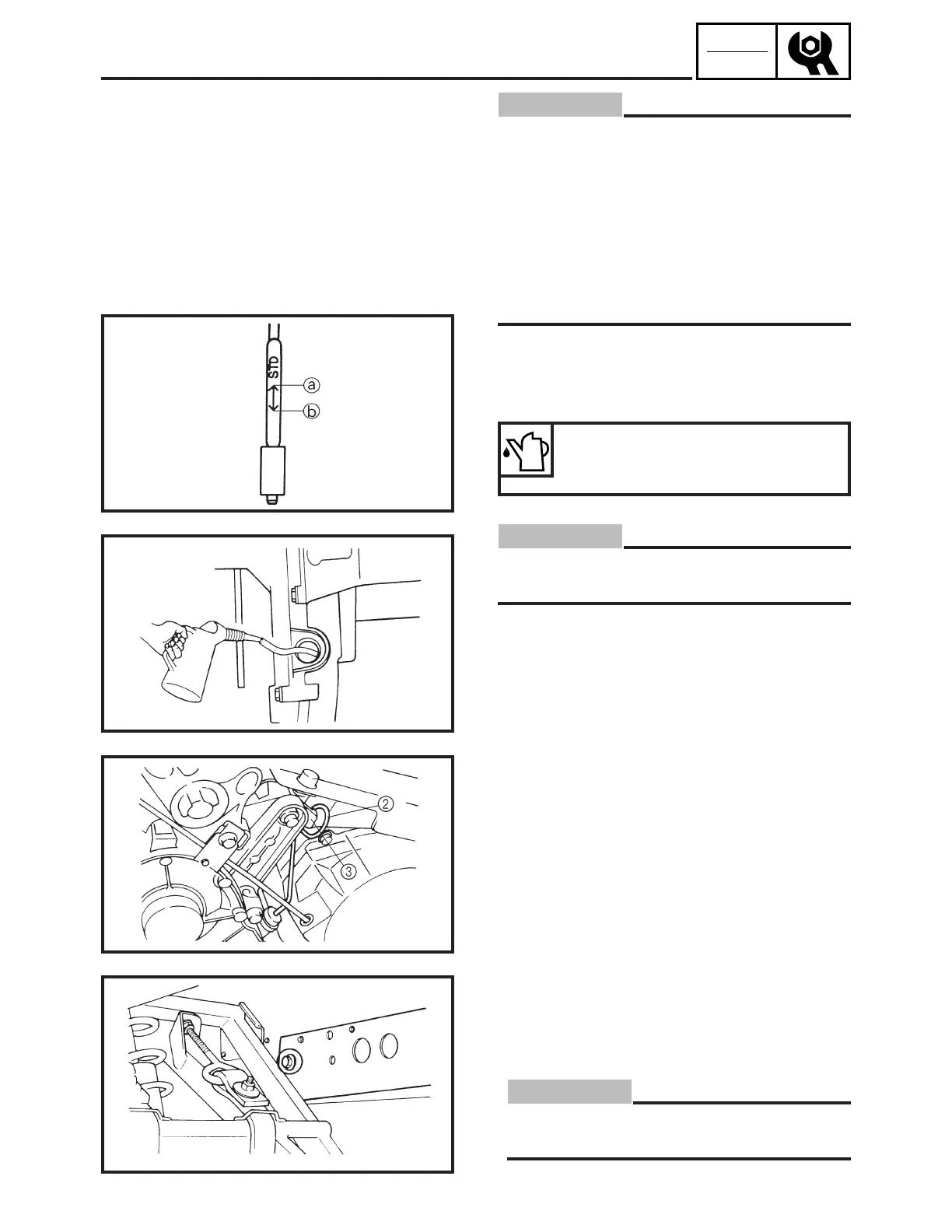

Yamaha SRX700D - Oil Replacement (Drive Chain)

2-27
INSP
ADJ
DRIVE CHAIN
SDN2530
SDN2540
SDN2550
SDN2560
CAUTION:
There is a magnet attached to the end of the
dipstick. It is used to remove any metal particles
that may accumulate in the drive chain housing.
Be sure to:
• Pull the dipstick out slowly and gently so the
metal particles do not fall off the magnet back
into the drive chain housing.
• Wipe off the magnet before reinserting the
dipstick into the drive chain housing.
• Remove the dipstick and check that the oil is
between the upper a and lower b levels. If
not, add oil to the upper level.
Recommended oil:
Gear oil API “GL-3”
SAE #75 or #80
CAUTION:
Make sure that no foreign material enters the
gear case.
• Reinsert the dipstick and fit the loop 2 of the
dipstick handle onto the projection 3 of the
gear case.
4. Install:
• Exhaust silencer
Refer to “EXHAUST ASSEMBLY” in CHAP-
TER 5.
Oil replacement
Oil replacement steps:
• Place the oil pan under the drain hole.
• Remove the oil drain bolt and drain the oil.
CAUTION:
Be sure to remove any oil from the heat protec-
tor.
