5-6
ENG
ENGINE ASSEMBLY
INSPECTION

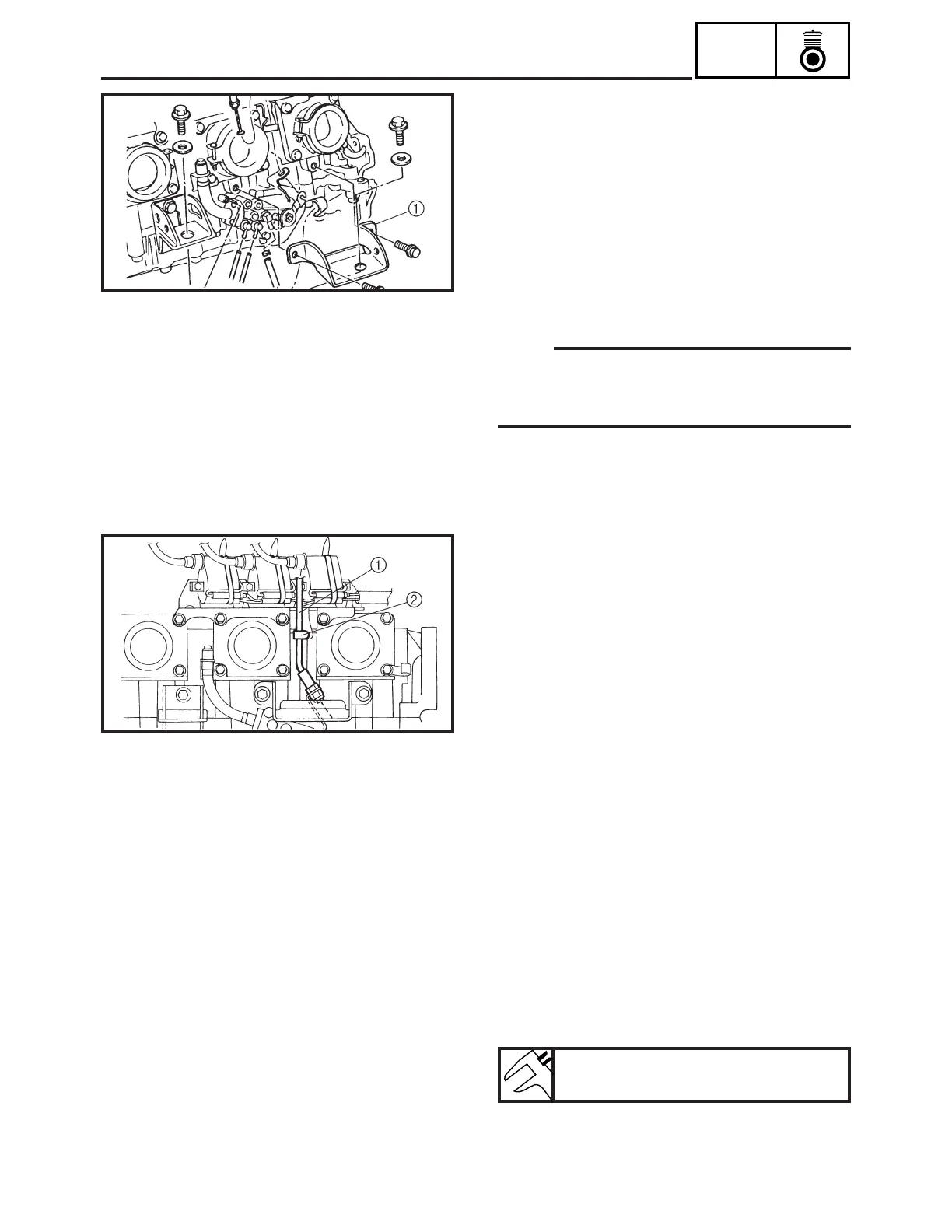

1. Inspect:
• Rear bracket (right) 1
Cracks/damage → Replace.
INSTALLATION
NOTE:
After installing all parts, refer to “CABLE ROUT-
ING” in CHAPTER 9, to check the cable, lead and
hose routings.
1. Be sure to fasten the oil pump cable 1 with
the cable holder 2 on the ignition coil bracket.
2. Bleed:
• Oil system
Refer to “OIL PUMP” in CHAPTER 2.
• Cooling system
Refer to “COOLING SYSTEM” in CHAPTER
2.
3. Adjust:
• Oil pump cable distance
Refer to “OIL PUMP” in CHAPTER 2.
Distance:
20 ~ 22 mm (0.79 ~ 0.86 in)
SDN5050
SDN5060
