8-11
–+
ELEC

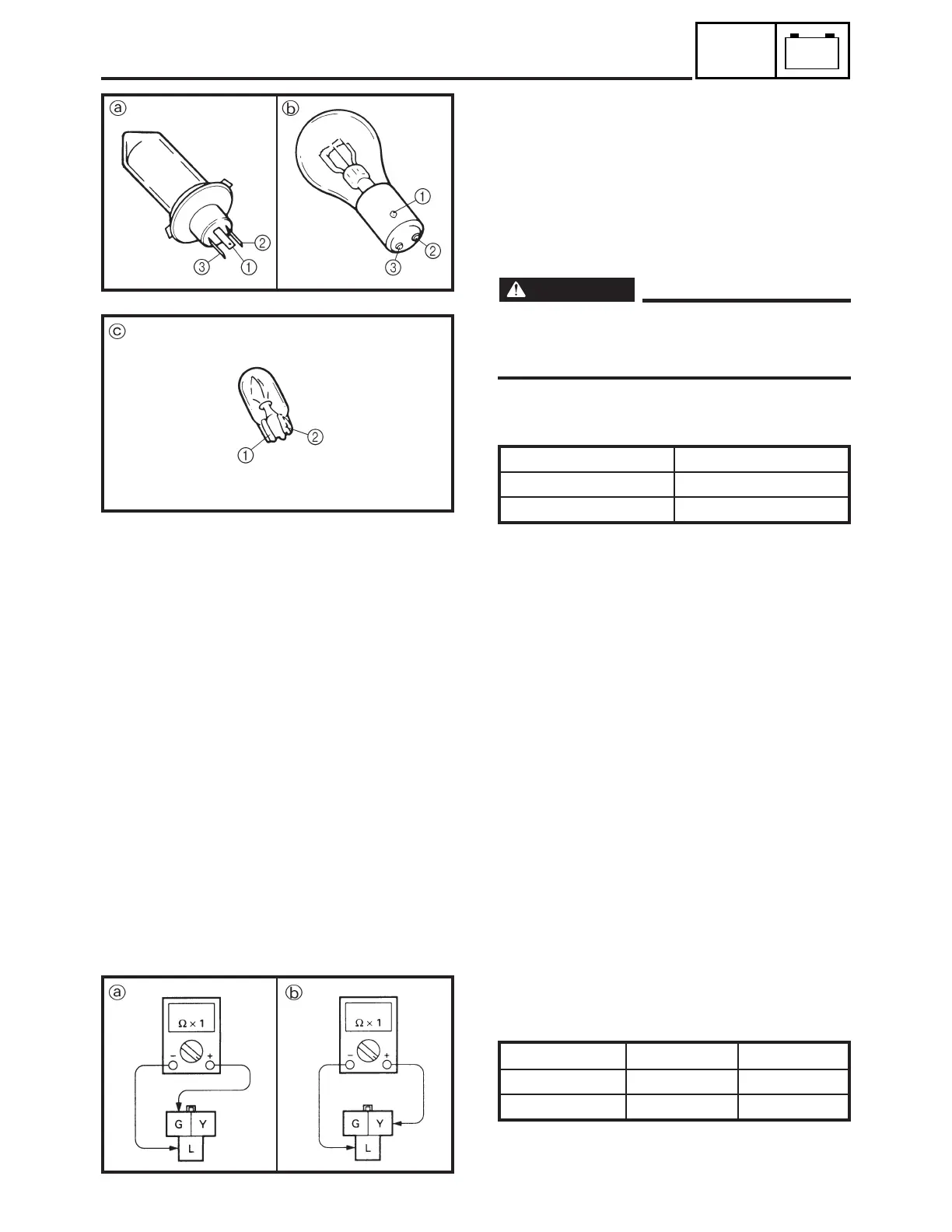

LIGHTING SYSTEM
BULB(S)
1. Remove:
• Headlight bulb a
• Tail/brake light bulb b
• Meter light bulb c
2. Connect:
• Pocket tester
(to the bulb terminals)
WARNING
Keep flammable products and your hands away
from the bulb while it is on; it will be hot. Do not
touch the bulb until it cools down.
3. Check:
• Bulb(s)
Terminal Continuity
1 – 2 Yes
1 – 3 Yes
HEADLIGHT BEAM SWITCH
1. Disconnect:
• Headlight beam switch coupler
2. Connect:
• Pocket tester
(to the headlight beam switch coupler)
3. Check:
• Headlight beam switch continuity
Faulty → Replace.
Switch position a Continuity b Continuity
HI No Yes
LO Yes No
SDN8220
SDN8230
SDN8240
