Yamaha SRX700D - Fuel Line Inspection

2-5
INSP
ADJ
2
2
1
SDN2060
SDN2070
13. Install:
• Gasket (bleed screw)
• Bleed screw
14. Install:
• Carburetors
Refer to “CARBURETORS” in CHAPTER 7.

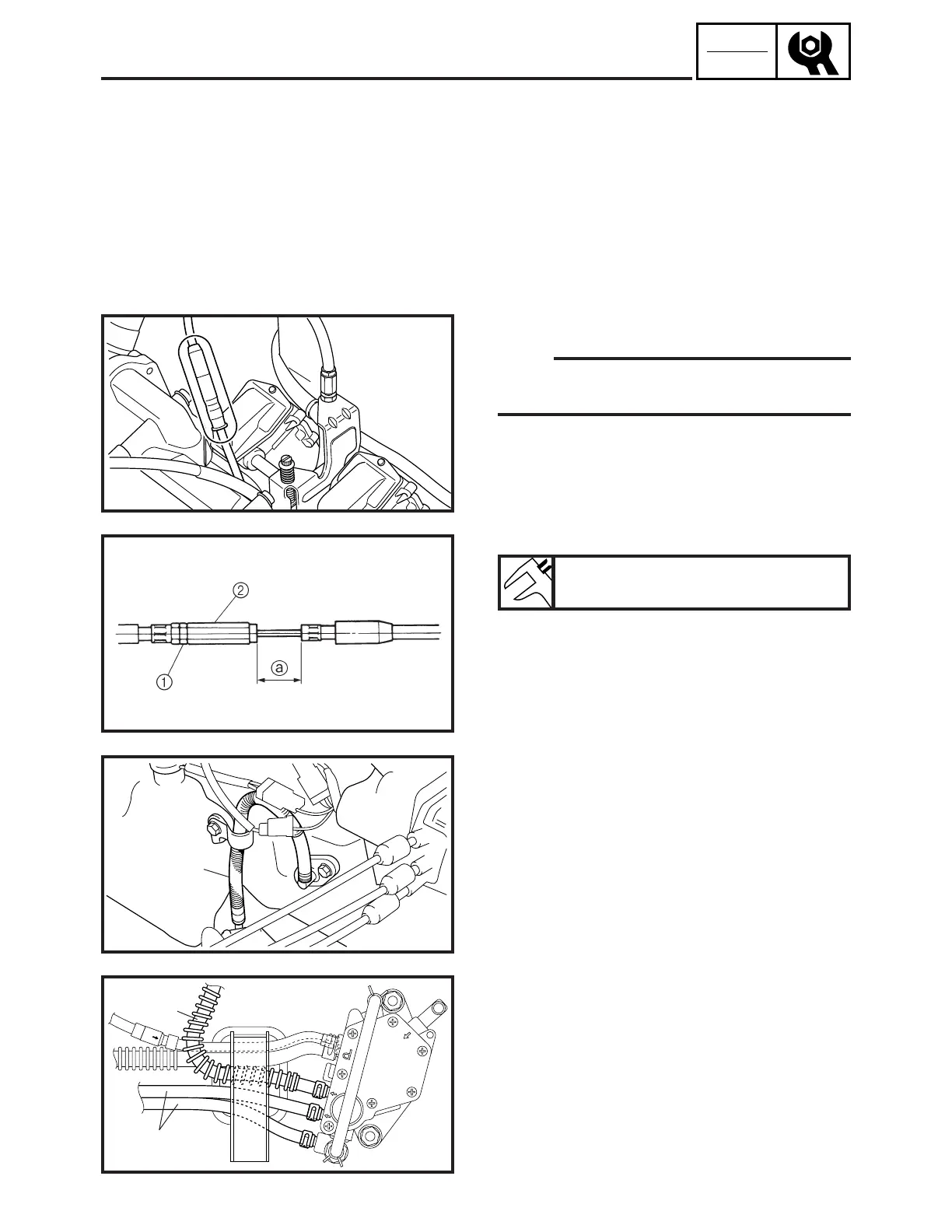

Cable adjustment
NOTE:
Before adjusting the oil pump cable, the throttle
cable distance should be adjusted.
Adjustment steps:
• Slide back the adjuster cover.
• Loosen the locknut 1.
• Turn the adjuster 2 in or out until the speci-
fied distance is obtained.
Distance a:
20 ~ 22 mm (0.79 ~ 0.86 in)
Turning in → Distance a is increased.
Turning out → Distance a is decreased.
• Tighten the locknut and push in the adjuster
cover.
FUEL LINE INSPECTION
1. Remove:
• Intake silencer
Refer to “FUEL PUMP” in CHAPTER 7.
2. Inspect:
• Fuel hose 1
• Fuel delivery hoses 2
Cracks/damage → Replace.
3. Install:
• Intake silencer
Refer to “FUEL PUMP” in CHAPTER 7.
OIL PUMP/FUEL LINE INSPECTION
SDN2080
SDN2090
