1-3
GEN
INFO
IMPORTANT INFORMATION
GASKETS, OIL SEALS, AND O-RINGS
1. All gaskets, seals, and O-rings should be replaced when an engine
is overhauled. All gasket surfaces, oil seal lips, and O-rings must be
cleaned.
2. Properly oil all mating parts and bearings during reassembly. Apply
grease to the oil seal lips.

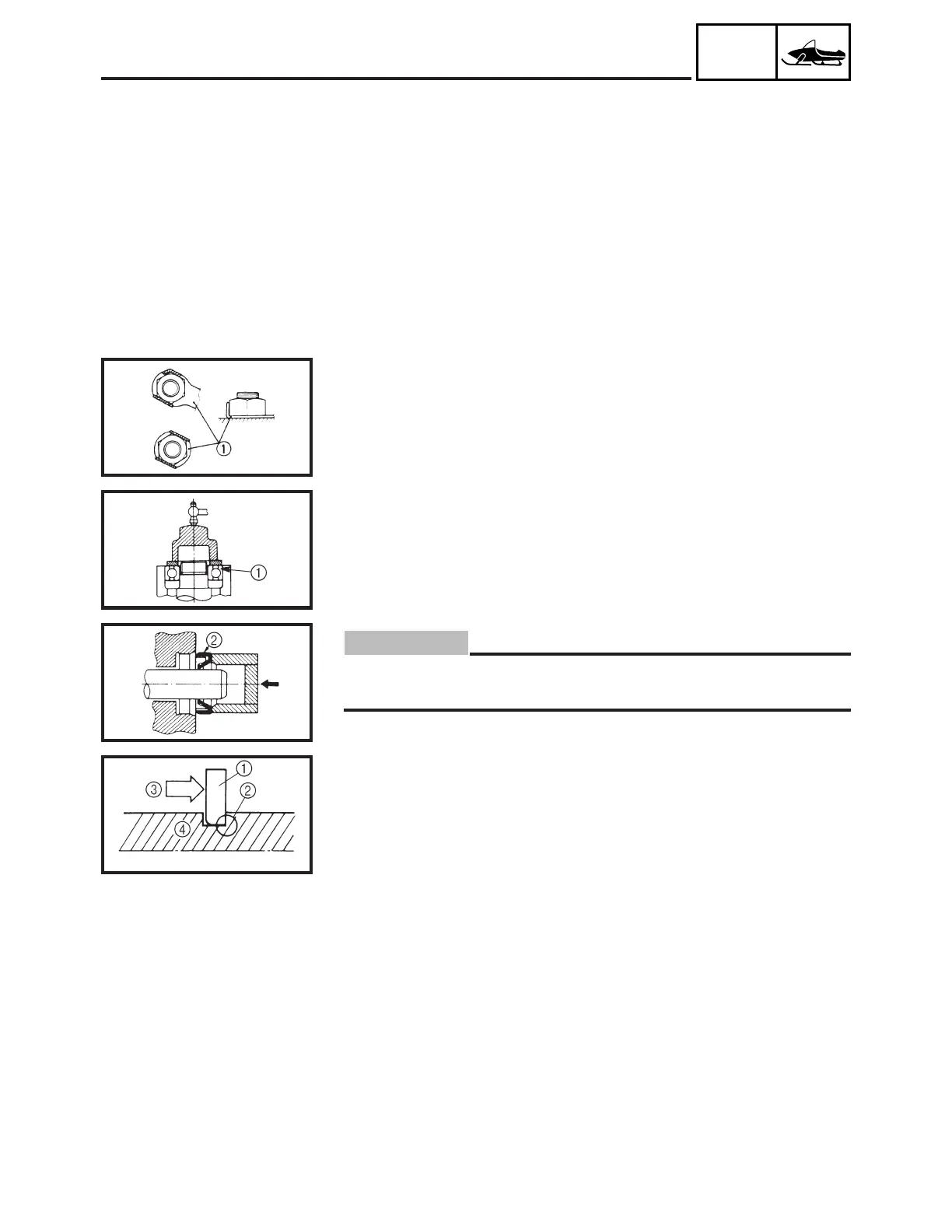

LOCK WASHERS/PLATES AND COTTER PINS
All lock washers/plates 1 and cotter pins must be replaced if they are
removed. Lock tab(s) should be bent along the bolt or nut flat(s) after the
bolt or nut has been properly tightened.
BEARINGS AND OIL SEALS
Install the bearings 1 and oil seals 2 with their manufacturer’s marks
or numbers facing outwards. (In other words, the stamped letters must
be on the side exposed to view.) When installing oil seals, apply a light
coating of lightweight lithium base grease to the seal lips. Oil the
bearings liberally when installing.
CAUTION:
Do not use compressed air to spin the bearings dry. This causes
damage to the surface of the bearings.
CIRCLIPS
All circlips should be inspected carefully before reassembly. Always
replace piston pin clips after one use. Replace misshapen circlips.
When installing a circlip 1, make sure that the sharp edged corner 2
is positioned opposite to the thrust 3 it receives. See the sectional view.
4 Shaft
LOCTITE
®
After installing fasteners that have LOCTITE
®
applied, wait 24 hours
before using the machine. This will give the LOCTITE
®
time to dry
properly.
SDN1090
SDN1100
SDN1110
SDN1120
