5-3
ENG

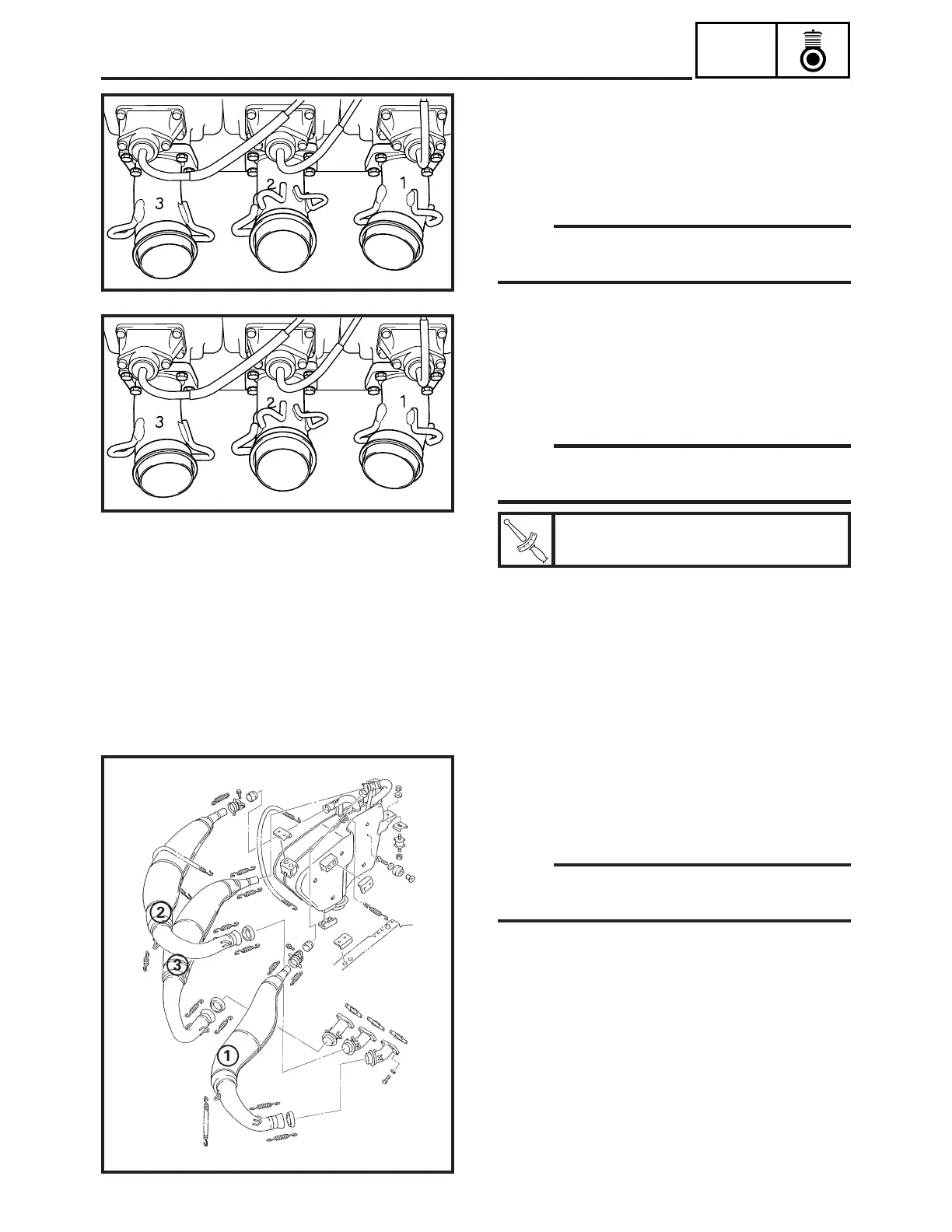

EXHAUST ASSEMBLY
SDN5023
SDN5025
SDN5027
REMOVAL
1. Remove:
• Exhaust pipe joint #1 (L)
• Exhaust pipe joint #2
• Exhaust pipe joint #3 (R)
NOTE:
Put identification marks on each exhaust pipe
joint for reference during reinstallation.
INSTALLATION
1. Install:
• Exhaust pipe joint #3 (R)
• Exhaust pipe joint #2
• Exhaust pipe joint #1 (L)
NOTE:
Position each exhaust pipe joint very carefully in
its original place.
Bolt (exhaust joint):
15 Nm (1.5 m • kg, 11 ft • lb)
2. Install:
• Exhaust pipe #1
• Exhaust pipe #3
• Exhaust pipe #2
NOTE:
Position each exhaust pipe very carefully in its
original place.
T
R
.
.
