2-30
INSP
ADJ
4
5

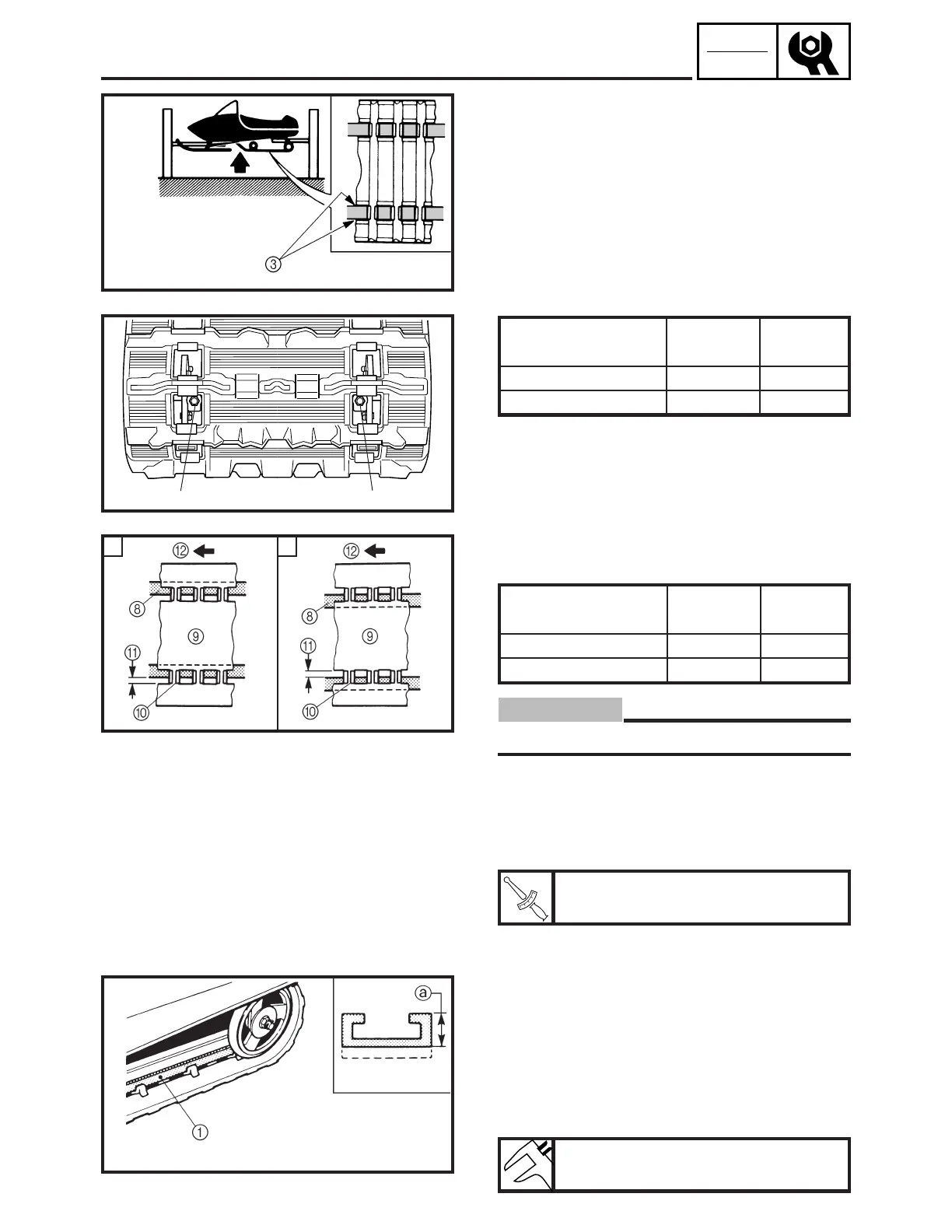

TRACK TENSION ADJUSTMENT/
SLIDE RUNNER INSPECTION
Track alignment
4 Left adjuster
5 Right adjuster
6 Shifted
to right
Turn out
Turn in
7 Shifted
to left
Turn in
Turn out
67
Track deflection
4 Left adjuster
5 Right adjuster
More than
specified
Turn in
Turn in
Less than
specified
Turn out
Turn out
T
R
.
.
SDN2600
SDN2620
SDN2630
SDN2610
a. Start the engine and rotate the track once or
twice. Stop the engine.
b. Check the track alignment with the slide run-
ner 3.
If the alignment is incorrect, turn the left and
right adjusters to adjust.
8 Slide runner 9 Track
0 Track metal A Gap B Forward
c. Adjust the track deflection until the specified
amount is obtained.
CAUTION:
The adjusters should be turned an equal amount.
• Recheck the alignment and deflection. If nec-
essary, repeat steps (a) to (c) until the speci-
fied amount is obtained.
• Tighten the rear axle nut.
Nut (rear axle):
75 Nm (7.5 m • kg, 54 ft • lb)
SLIDE RUNNER INSPECTION
1. Inspect:
• Slide runner 1
Cracks/damage/wear → Replace.
2. Measure:
• Slide runner thickness a
Out of specification → Replace.
Slide runner wear limit:
10 mm (0.39 in)
