1-4
GEN
INFO
SPECIAL TOOLS
SDN1130
SDN1160
SDN1150
SDN1140

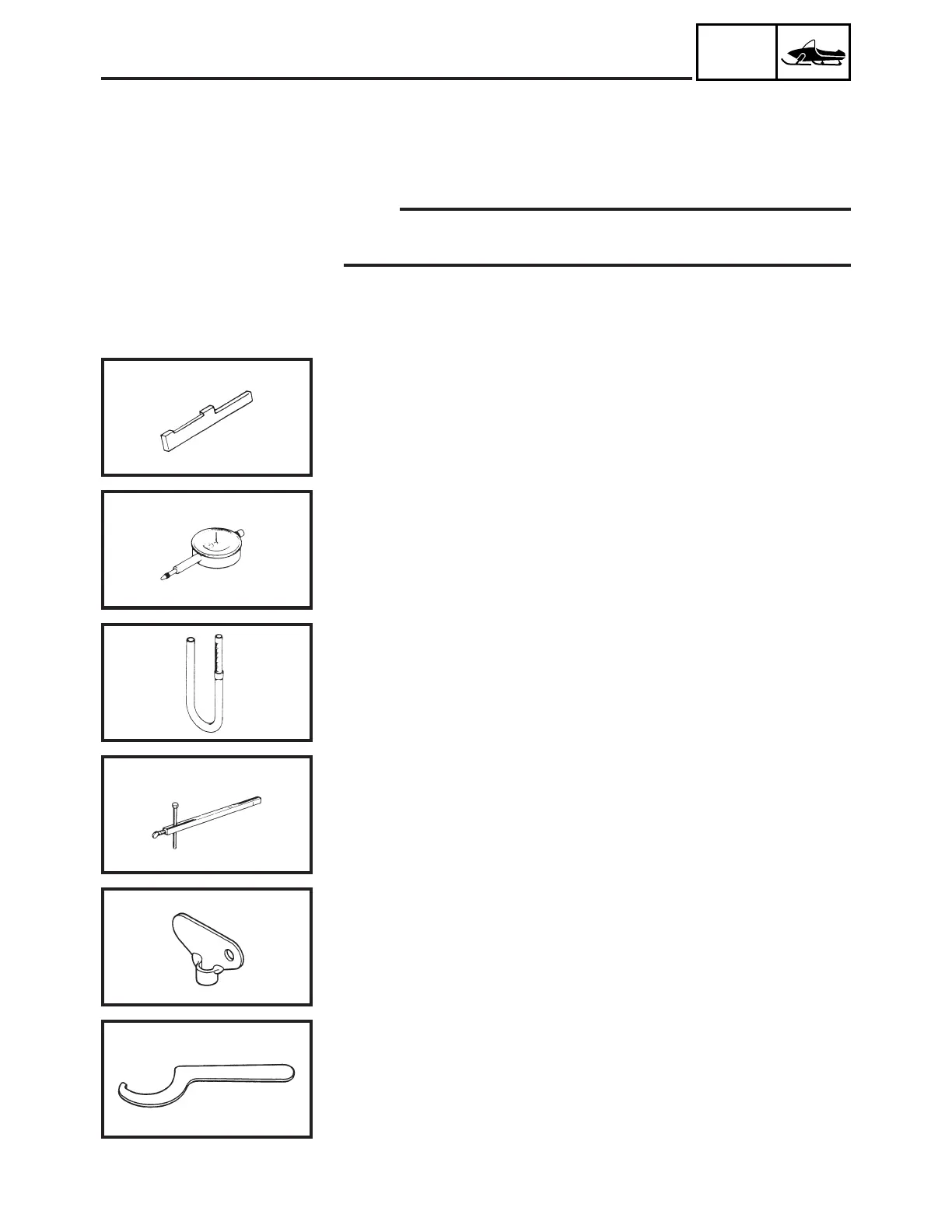

SPECIAL TOOLS
Some special tools are necessary for a completely accurate tune-up and
assembly. Using the correct special tool will help prevent damage that
can be caused by the use of improper tools or improvised techniques.
NOTE:
Be sure to use the correct part number when ordering the tool, since the
part number may differ according to country.
FOR TUNE UP
• Sheave gauge
P/N: YS-42421-1 (15 mm offset)
This gauge is used to measure the sheave distance and for offset
adjustment.
• Dial gauge
P/N: YU-03097 (for U.S.A./Canada)
90890-03097 (for Europe)
This gauge is used for run out measurement.
• Fuel level gauge
P/N: YM-01312-A (for U.S.A./Canada)
90890-01312 (for Europe)
This gauge is used to measure the fuel level in the float chamber.
• Distance gauge
P/N: YS-91047-3 (for U.S.A./Canada)
90890-01702 (for Europe)
This gauge is used to measure the distance between the center of the
primary sheave and the center of the secondary sheave.
• Adjusting screwdriver (SRX700S)
P/N: 8DE-23703-00
This tool is used to adjust the damping force in the front suspension.
• Special wrench (SRX700S)
P/N: 4PU-28135-00
This tool is used to adjust the spring preload in the front suspension.
SDN1170
SDN1180
