BRAKE LEVER ADJUSTMENT
1. Adjust:
• Brake lever position
(distance from the grip to the brake lever)
Adjustment steps:

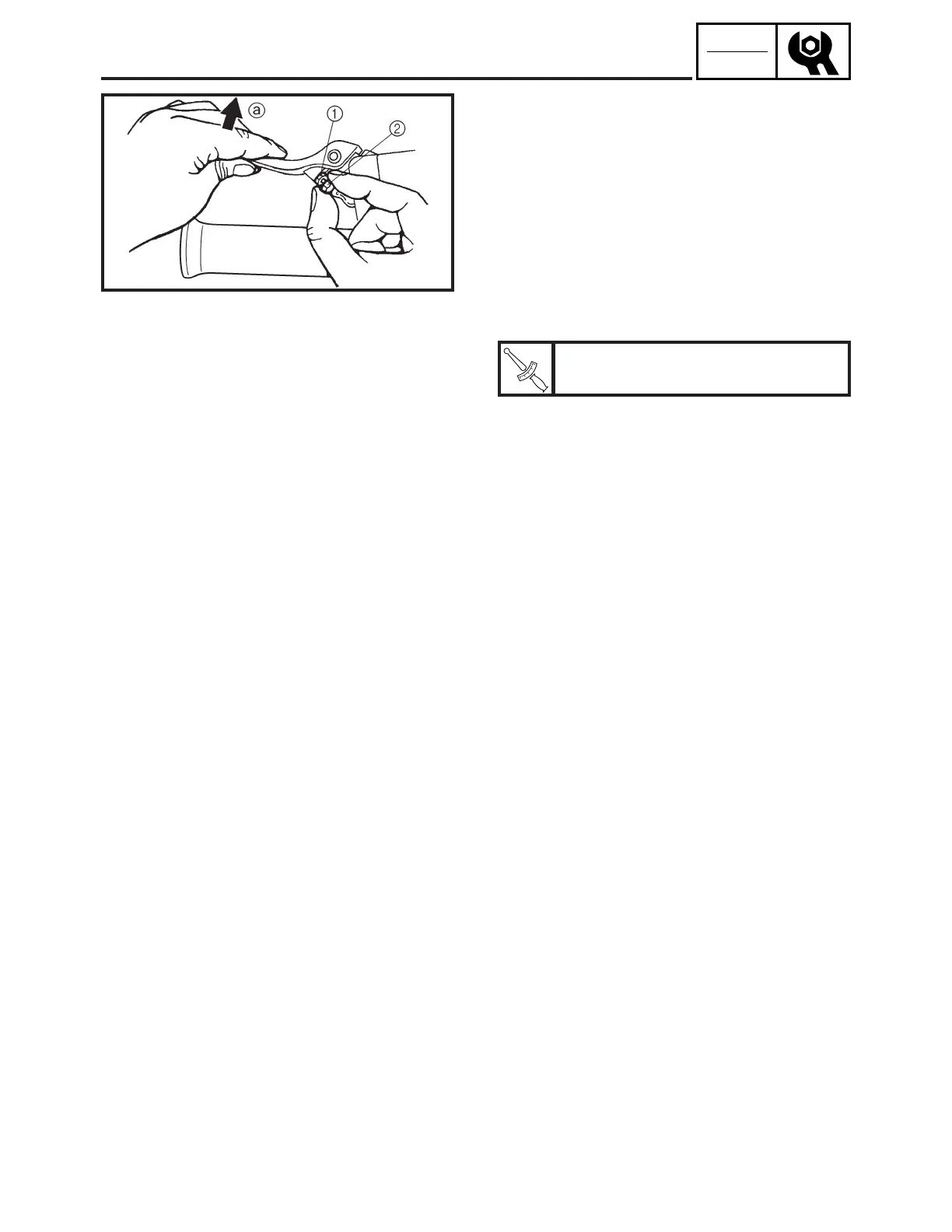

• Loosen the locknut 1.
• While lightly pushing the brake lever in direc-
tion a, turn the adjusting bolt 2 by fingers to
set the brake lever to the desired position.
• Tighten the locknut securely after adjusting.
Locknut:
6 Nm (0.6 m • kg, 4.3 ft • lb)
SDN2480
