Yamaha SRX700D - Page 429

SPEC
9-4
MAINTENANCE SPECIFICATIONS

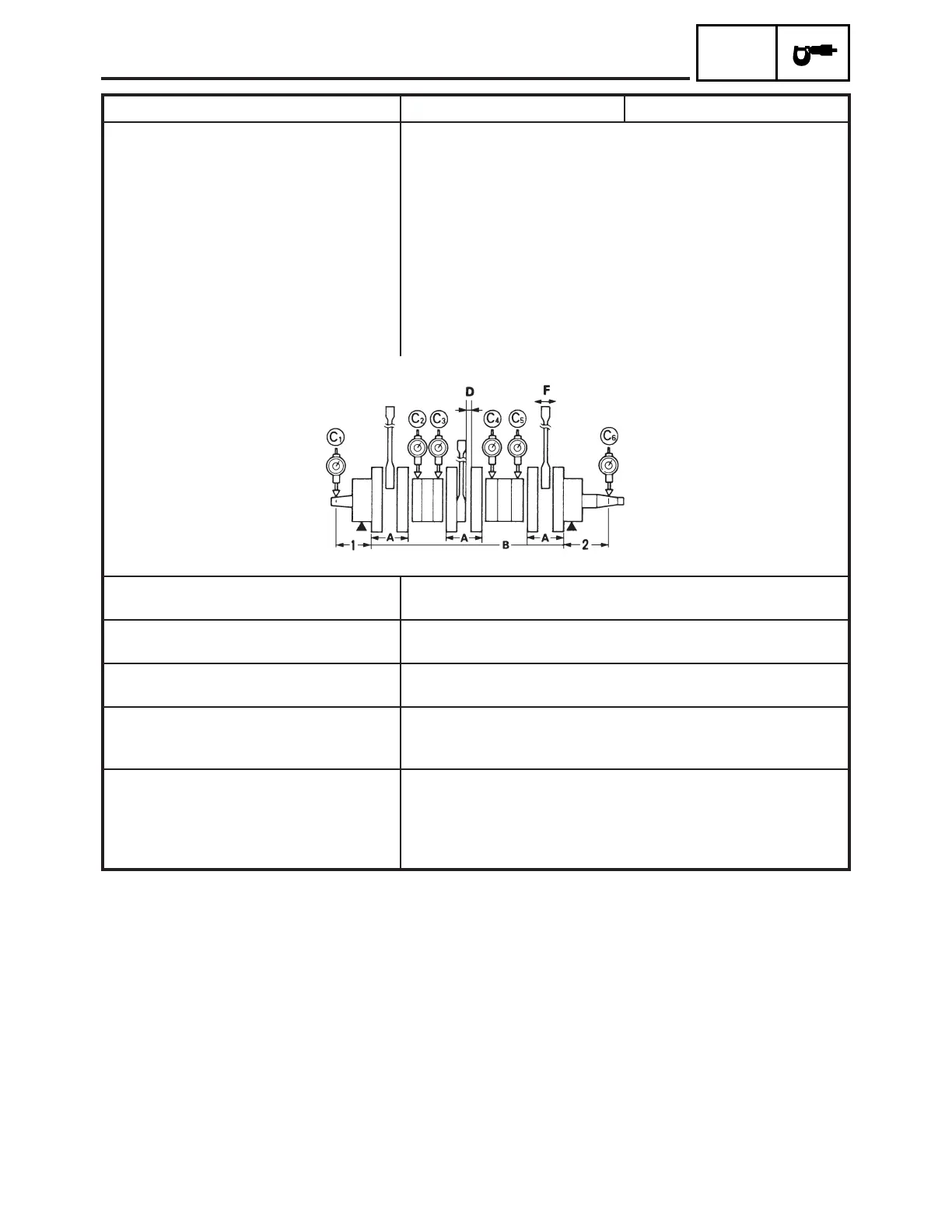

Crankshaft:
Crank width “A”
Crank width “B”
Crankshaft deflection “C”: C1
C2 ~ C5
C6
Measuring points: 1
2
Connecting rod big end side clear-
ance ”D”
Connecting rod small end free play ”F”
Big end bearing:
Type
Small end bearing:
Type
Crank pin:
Crank pin outside diameter
Connecting rod:
Small end diameter
Big end diameter
Read valve:
Material
Thickness
<Bending limit>
Stopper height
56.95 ~ 57.00 mm (2.242 ~ 2.244 in)
292.75 ~ 293.30 mm (11.526 ~ 11.547 in)
Below 0.03 mm (0.0012 in)
Below 0.04 mm (0.0016 in)
Below 0.03 mm (0.0012 in)
89.5 mm (3.52 in)
84.5 mm (3.33 in)
0.25 ~ 0.75 mm (0.01 ~ 0.03 in)
0.8 ~ 1.0 mm (0.03 ~ 0.04 in)
Needle bearing
Needle bearing
26.991 ~ 27.000 mm (1.0627 ~ 1.0630 in)
24.995 ~ 25.005 mm (0.9841 ~ 0.9844 in)
34.020 ~ 34.033 mm (1.3394 ~ 1.3399 in)
Resin
0.35 ~ 0.49 mm (0.014 ~ 0.019 in)
<1.5 mm (0.059 in)>
10.3 ~ 10.7 mm (0.41 ~ 0.42 in)
Model
SRX700 SRX700S
