2-7
INSP
ADJ
SDN2120

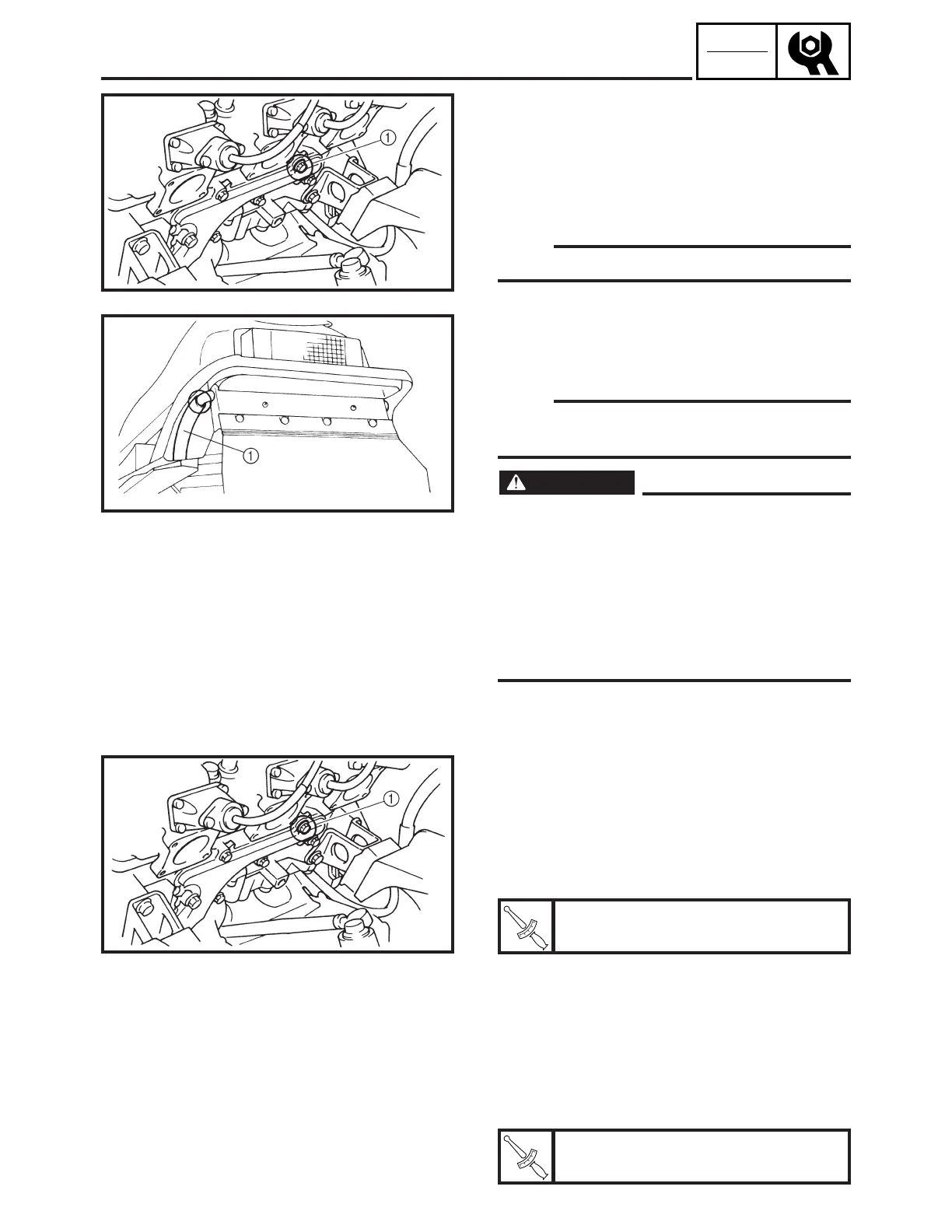

5. Place an open container under the coolant
drain bolt 1.
6. Remove:
• Coolant drain bolt
• Gasket (coolant drain bolt)
7. Drain the coolant.
NOTE:
Lift up the tail of the machine to drain the coolant.
8. Disconnect:
• Coolant hose 6 1
9. Drain the coolant.
NOTE:
Lift up the tail of the machine to drain the coolant
completely.
WARNING
Coolant is poisonous. It is harmful or fatal if
swallowed.
• If coolant is swallowed, induce vomiting imme-
diately and get immediate medical attention.
• If coolant splashes in your eyes, thoroughly
wash them with water and consult a doctor.
• If coolant splashes on your skin or clothes,
quickly wash it away with soap and water.
10. Inspect:
• Gasket (coolant drain bolt)
Damage → Replace.
11. Install:
• Gasket
• Coolant drain bolt 1
Coolant drain bolt 1:
13 Nm (1.3 m • kg, 9.4 ft • lb)
12. Connect:
• Coolant hose 6
13. Install:
• Exhaust pipe joint #1 (L), #2, #3 (R)
• Exhaust pipe #1 (L), #2, #3 (R)
Refer to “EXHAUST ASSEMBLY” in CHAP-
TER 5.
Bolt (exhaust joint):
15 Nm (1.5 m • kg, 11 ft • lb)
COOLING SYSTEM
SDN2130
T
R
.
.
T
R
.
.
SDN2135
