3 - 18
INSP
ADJ

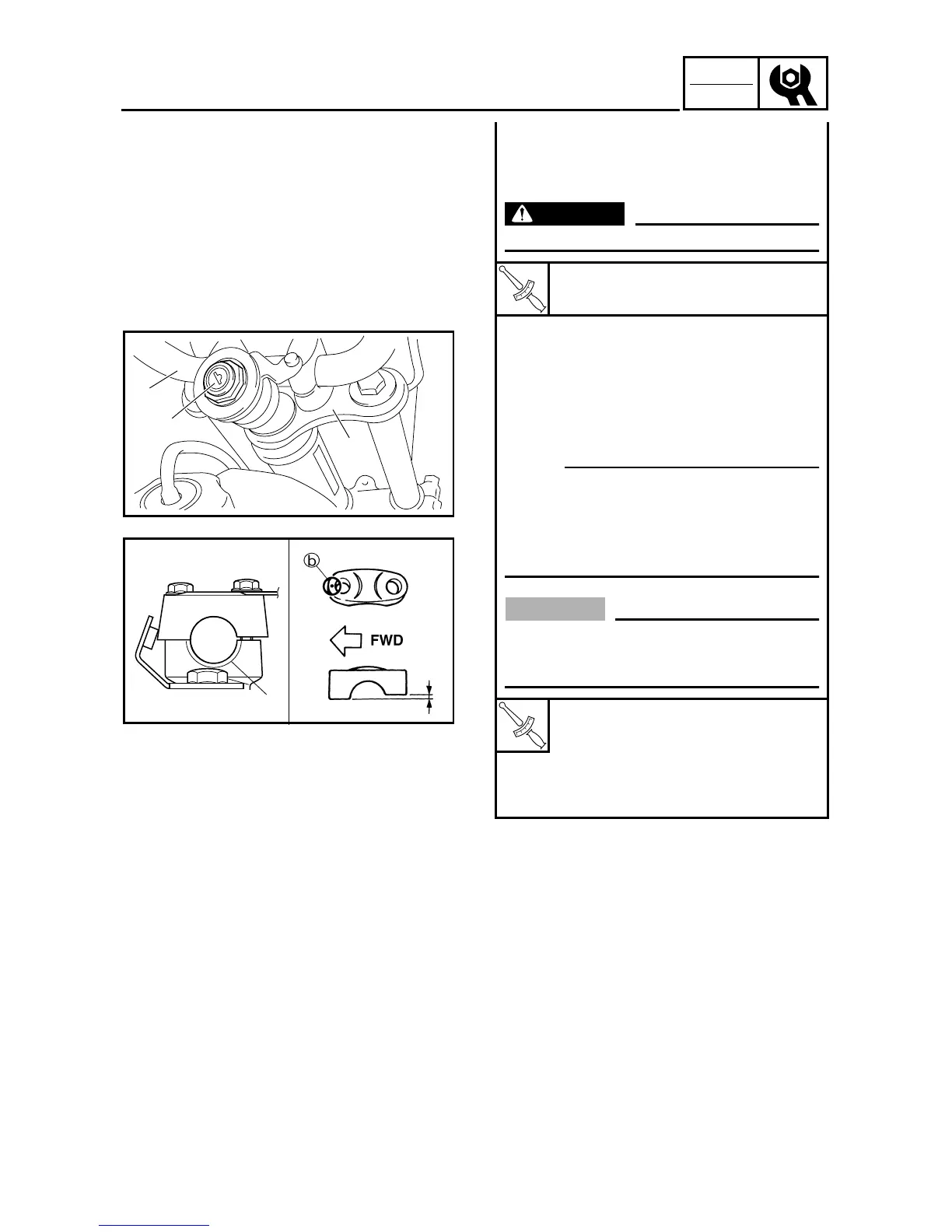

STEERING HEAD INSPECTION AND ADJUSTMENT
● Loosen the ring nut one turn.
● Retighten the ring nut using the ring nut
wrench.
WARNING
Avoid over-tightening.
T
R
.
.
Ring nut (final tightening):
1 Nm (0.1 m • kg, 0.7 ft • lb)
● Check the steering shaft by turning it lock
to lock. If there is any binding, remove the
steering shaft assembly and inspect the
steering bearings.
● Install the handle crown 6, main switch
7, handlebar 8, and front fender.
OTE:
● Install the handlebar holder with its groove
a facing outward.
● The upper handlebar holder should be
installed with the punched mark b for-
ward.
CAUTION:
First tighten the bolts on the front side of
the handlebar holder, and then tighten
the bolts on the rear side.
T
R
.
.
Steering stem bolt:
40 Nm (4.0 m • kg, 2.9 ft • lb)
Front fork cap bolt:
40 Nm (4.0 m • kg, 2.9 ft • lb)
Handlebar upper holder:
23 Nm (2.3 m • kg, 17 ft • lb)
8
7
6
a
