To ensure smooth operation of all compo-
nents, lubricate your machine during setup,
after break-in, and after every race.

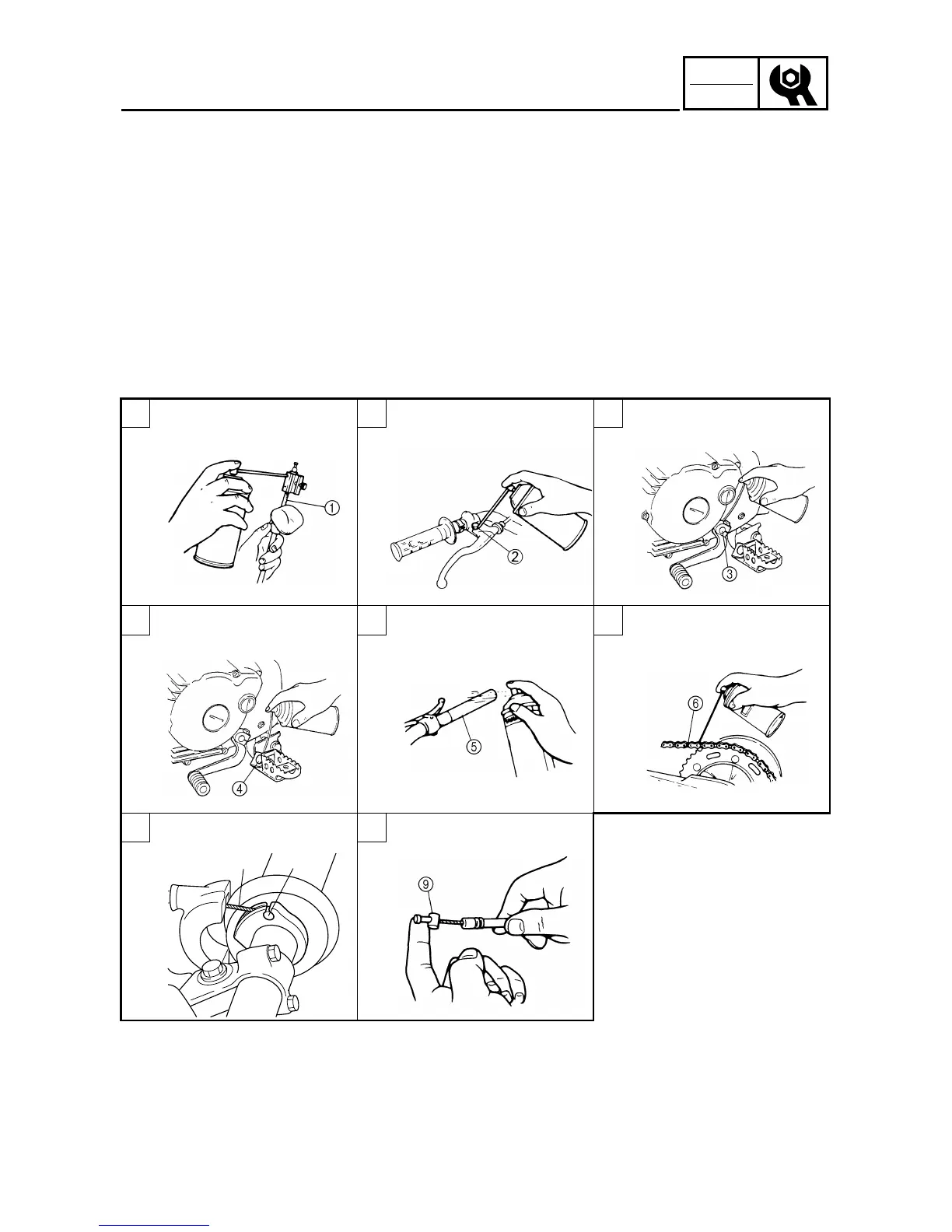

1 All control cable
2 Brake lever pivot
3 Shift pedal pivot
4 Footrest pivot
5 Throttle-to-handlebar contact
6 Drive chain
7 Tube guide cable winding portion
8 Throttle cable end
9 Brake cable end
Å Use Yamaha cable lube or equivalent on these
areas.
ı Use SAE 10W-30 motor oil or suitable chain
lubricants.
Ç Lubricate the following areas with high quality,
lightweight lithium-soap base grease.
