4 - 37
ENG

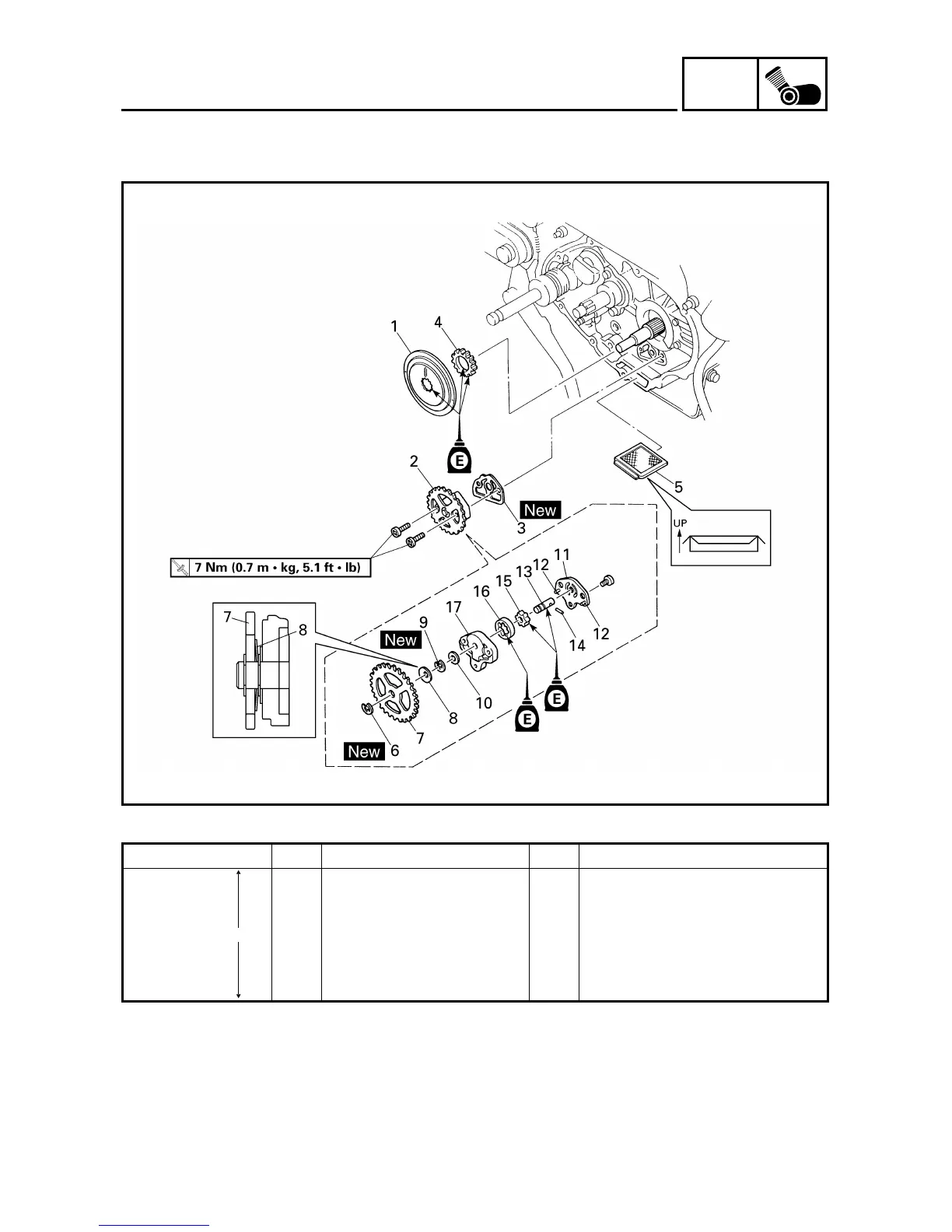

OIL PUMP
Extent of removal Order Part name Q’ty Remarks
11 Oil pump cover 1
12 Dowel pin 2
13 Oil pump drive shaft 1
14 Pin 1
15 Inner rotor 1
16 Outer rotor 1
17 Rotor housing 1
3
