4 - 43
ENG
INSPECTION

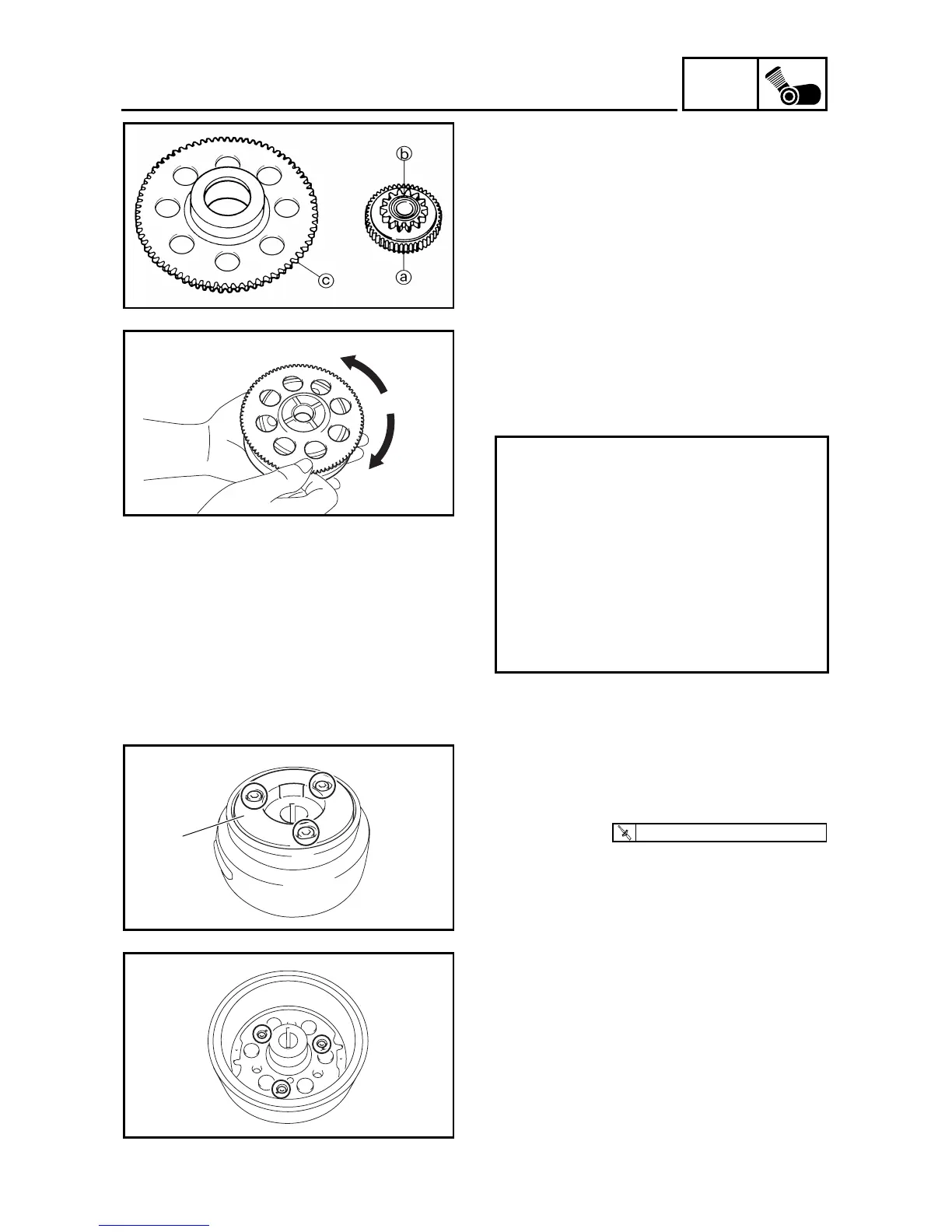

Starter clutch
1. Inspect:
● Starter idle gear teeth a
● Starter drive gear teeth b
● Starter wheel gear teeth c
Burrs/chips/roughness/wear →
Replace.
2. Check:
● Starter clutch operation
Push the dowel pins to the arrow direc-
tion.
Unsmooth operation → Replace.
Checking steps:
● Hold the starter clutch.
● When turning the starter wheel gear clock-
wise Å, the starter clutch and the starter
wheel gear should be engaged.
● If not, the starter clutch is faulty. Replace
it.
● When turning the starter wheel gear coun-
terclockwise ı, it should turn freely.
● If not, the starter clutch is faulty. Replace
it.
ı
Å
ASSEMBLY AND INSTALLATION
Starter clutch
1. Install:
● Starter clutch 1
1
T
R
.
.
14 Nm (1.4 m · kg, 10 ft · lb)
2. Unloosen the starter clutch assembly by
using the center punch.
CDI MAGNETO AND STARTER CLUTCH (TT-R90E)
