4 - 50
ENG

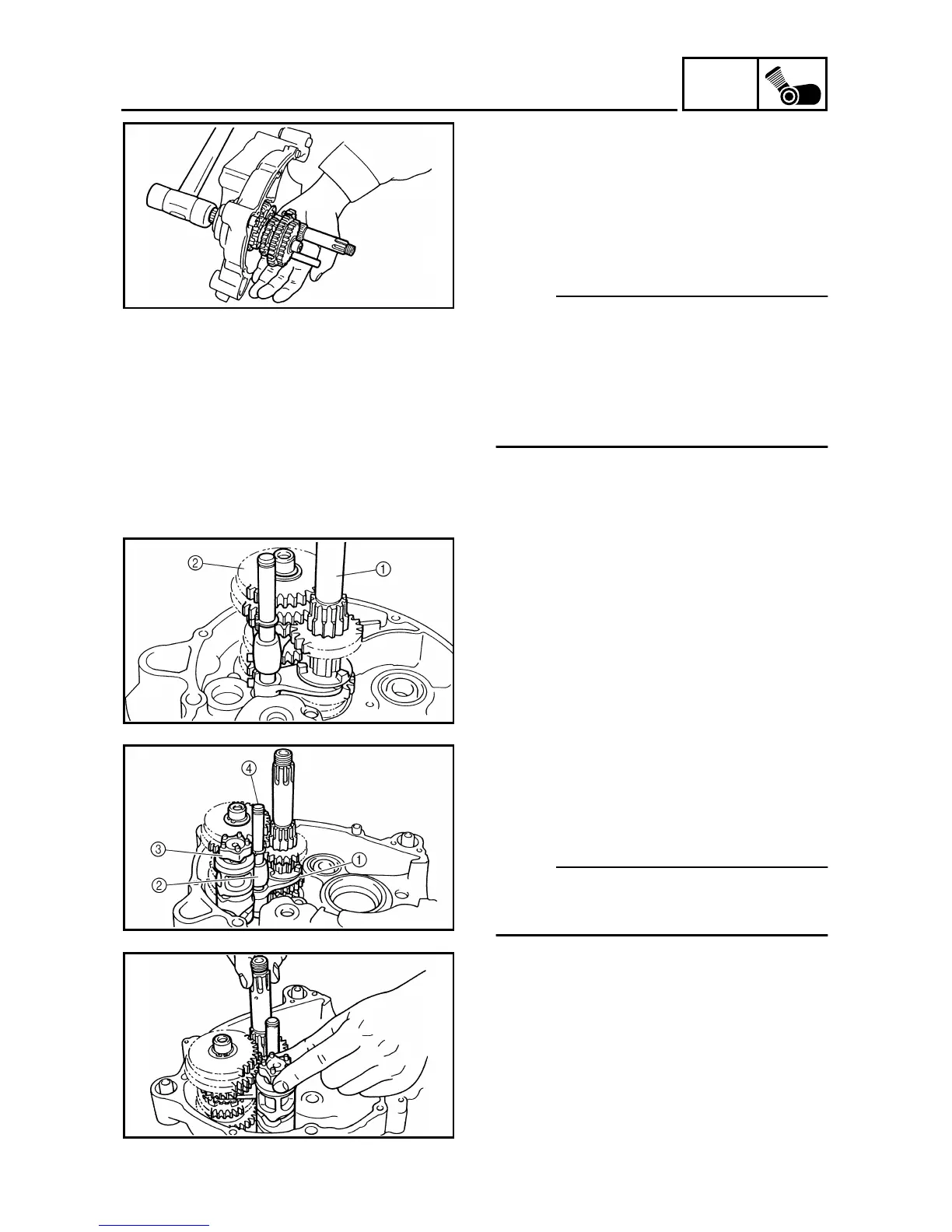

SHIFT FORK, SHIFT CAM AND TRANSMISSION
EC4H3000
REMOVAL POINTS
Shift fork, shift cam and transmission
1. Remove:
● Shift forks
● Shift cam
● Drive axle assembly
● Main axle assembly
NOTE:
● Tap lightly on the transmission drive axle
and shift cam with a soft hammer to
remove.
● Remove assembly carefully. Note the
position of each part. Pay particular atten-
tion to the location and direction of shift
forks.
ASSEMBLY AND INSTALLATION
Transmission, shift cam shift fork
1. Install:
● Main axle assembly 1
● Drive axle assembly 2
2. Install:
● Shift fork 1 “L” 1
● Shift fork 2 “R” 2
● Shift cam 3
● Guide bar 4
NOTE:
The embossed marks on the shift forks should
face towards the right side of the engine and
be in the following sequence: “R”, “L”.
3. Check:
● Shifter operation
● Transmission operation
Unsmooth operation → Repair.
