FRONT BRAKE
4-13

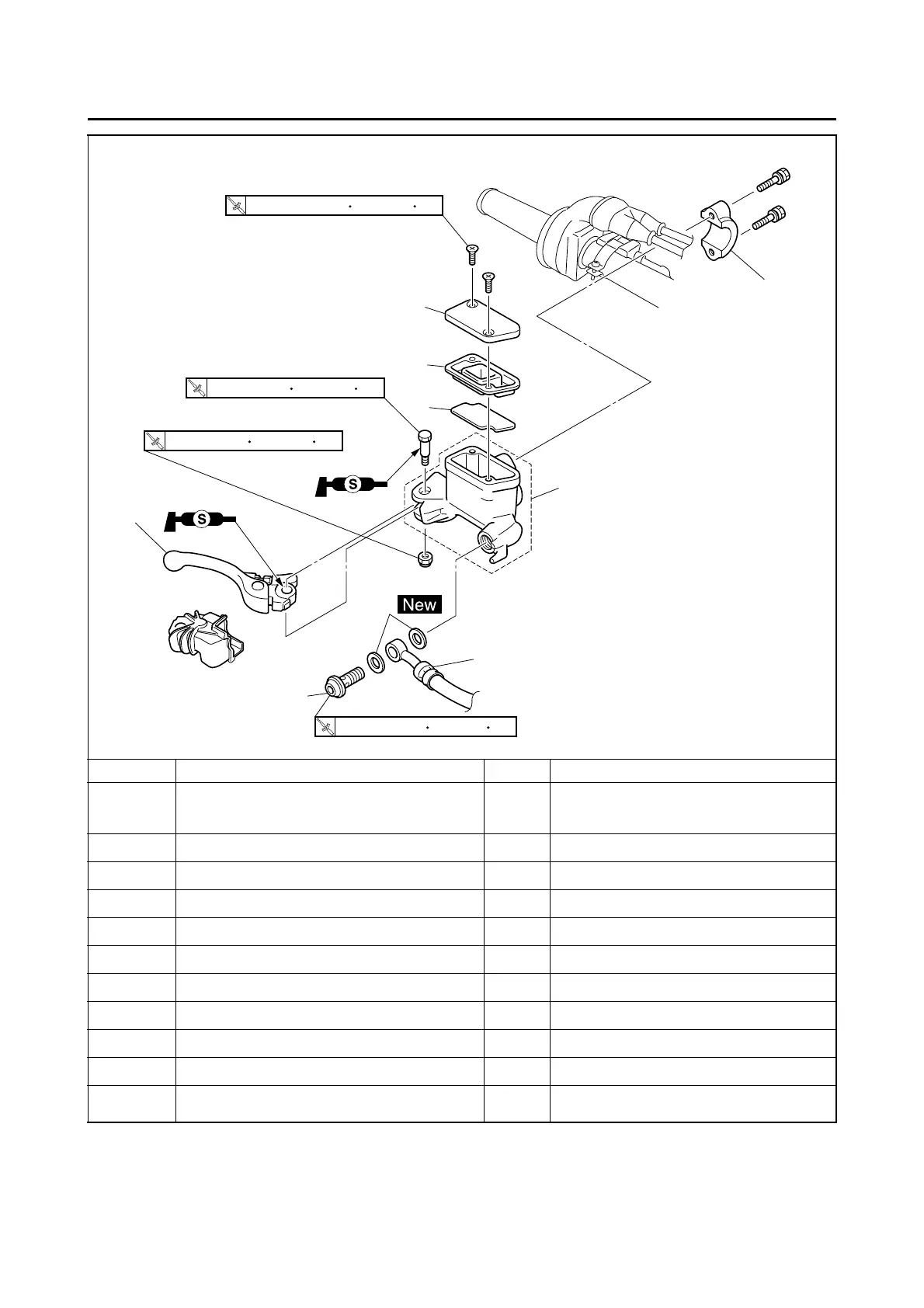

Removing the front brake master cylinder
Order Part name Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE BRAKE SYSTEM”
on page 3-21.
1 Brake lever 1
2 Union bolt 1
3 Copper washers 2
4 Front brake hose 1
5 Brake master cylinder reservoir cap 1
6 Brake master cylinder reservoir diaphragm 1
7 Front brake master cylinder float 1
8 Front brake master cylinder holder 1
9 Front brake master cylinder 1
For installation, reverse the removal proce-
dure.
5
6
7
2
3
4
8
9
1
T
.R.
30 Nm (3.0 m lbf)kgf, 22 ft
T
.R.
1.5 Nm (0.15 m
lbf)
kgf, 1.1 ft
T
.R.
6 Nm (0.6 m
lbf)kgf, 4.3 ft
T
.R.
6 Nm (0.6 m
lbf)kgf, 4.3 ft
To Next Page
