FRONT FORK
4-44

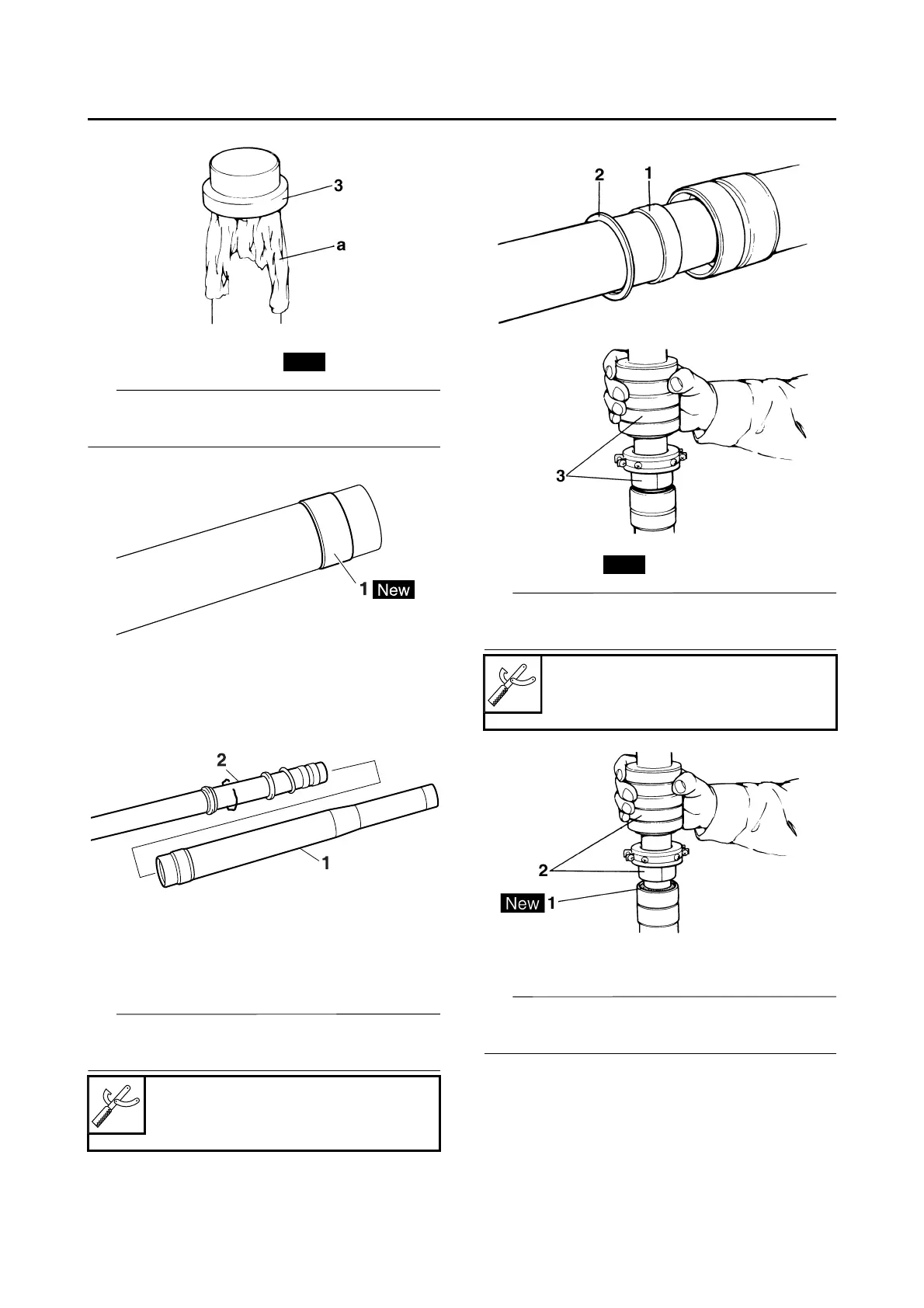

15.Install:
• Inner tube bushing “1”
TIP
Install the inner tube bushing onto the slot on
inner tube.
16.Install:
• Outer tube “1”
(to the inner tube “2”)
17.Install:
• Inner tube bushing “1”
• Washer “2”
(to the outer tube)
TIP
Press the inner tube bushing into the outer tube
with fork seal driver “3”.
18.Install:
• Oil seals “1”
TIP
Using a fork seal driver “2”, press the oil seal in
until the stopper ring groove fully appears.
19.Install:
• Oil seal clip “1”
TIP
Fit the oil seal clip correctly in the groove in the
outer tube.
Fork seal driver
90890-01502
YM-A0948
New
Fork seal driver
90890-01502
YM-A0948
New
