ENGINE REMOVAL
5-3

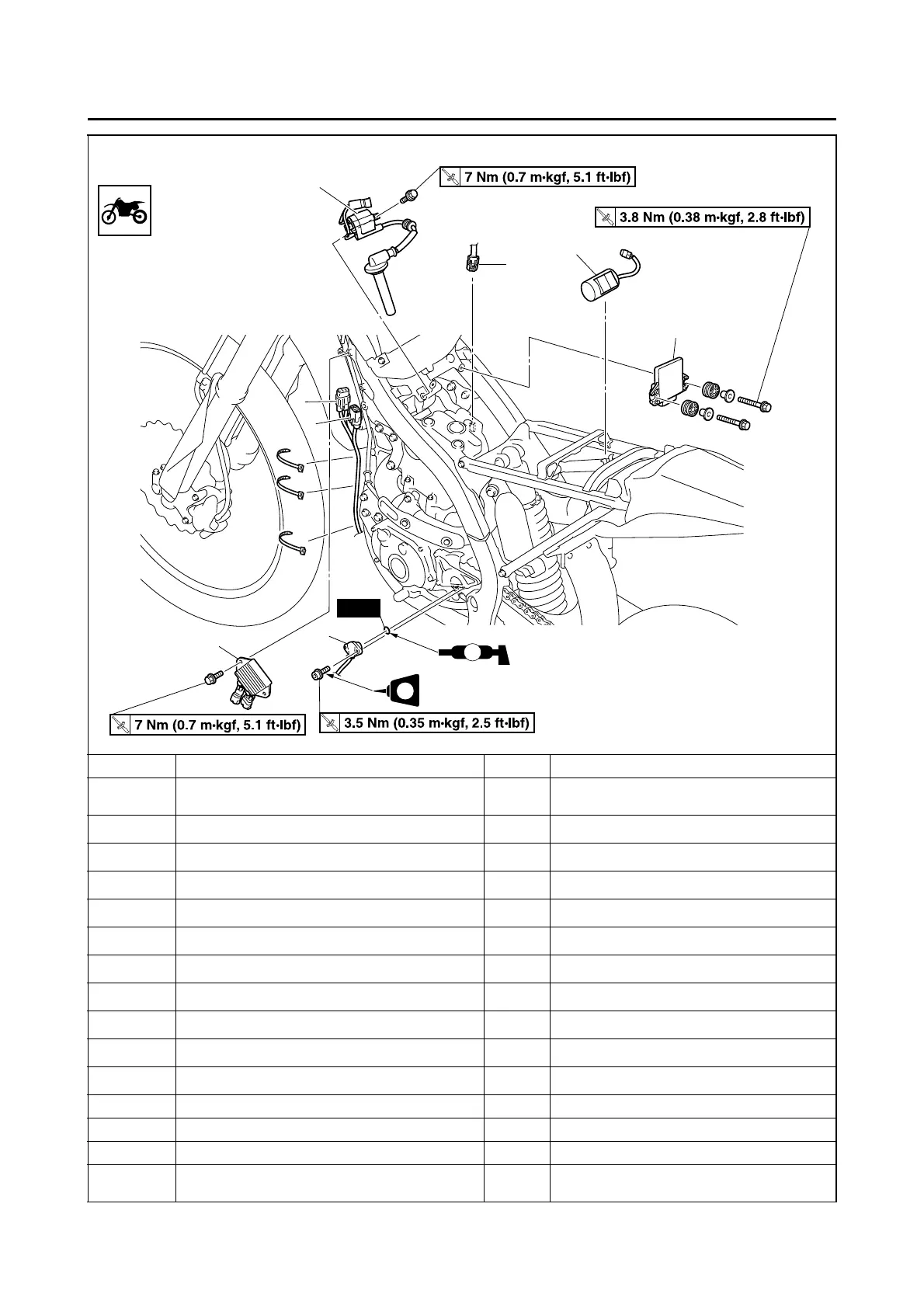

Removing the electronic parts
Order Part name Q’ty Remarks
Use a suitable stand to raise the front wheel
off the ground.
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left / right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case cover
1 Rectifier/regulator 1
2ECU 1
3 Ignition coil 1
4 Condenser 1
5 Neutral switch 1
6 AC magneto lead 1 Disconnect.
7 Crankshaft position sensor coupler 1 Disconnect.
8 Coolant temperature sensor coupler 1 Disconnect.
For installation, reverse the removal proce-
dure.
