Yamaha YZ250F(E) - Page 197

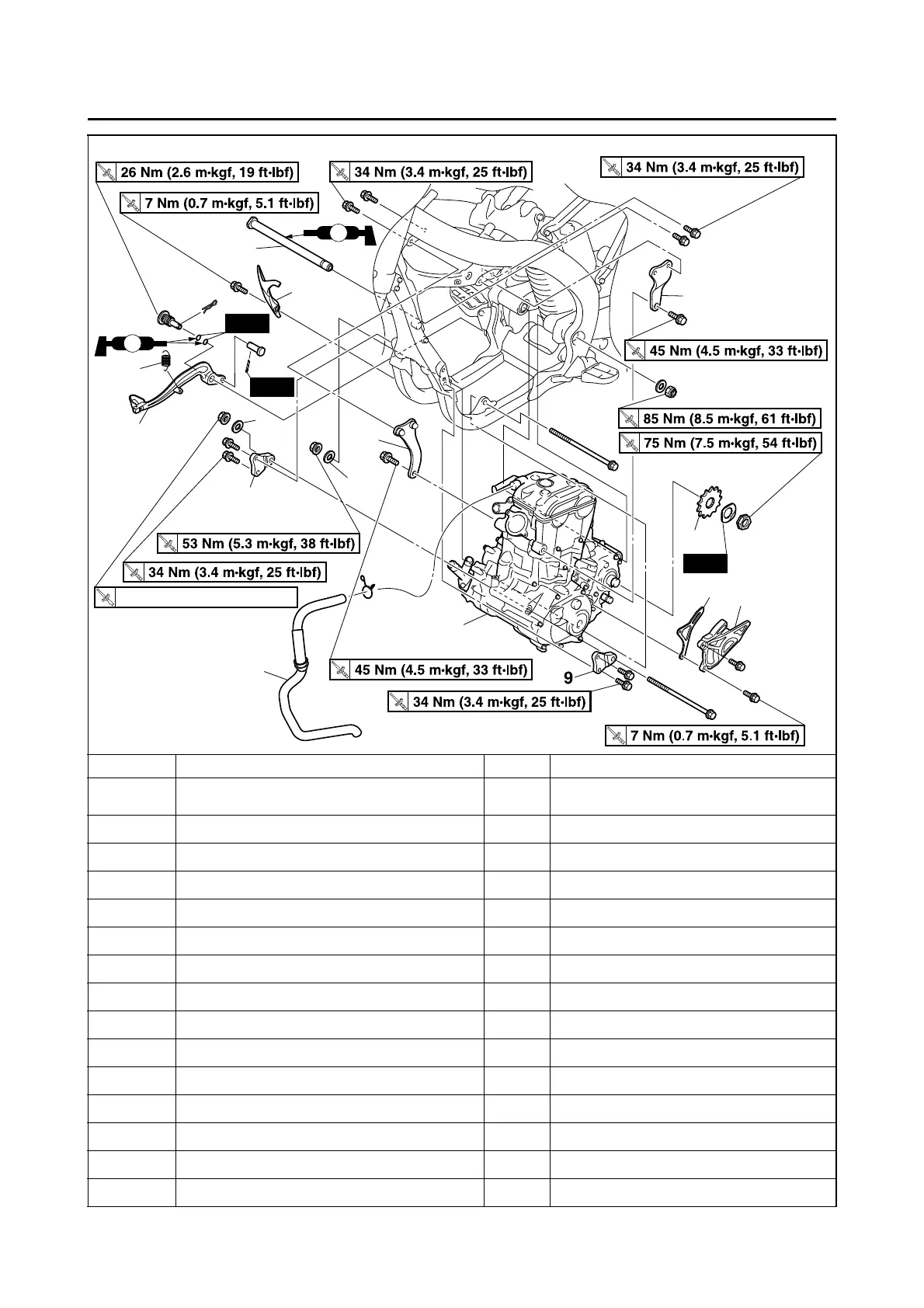

ENGINE REMOVAL
5-4
Removing the engine
Order Part name Q’ty Remarks
Use a suitable stand to raise the front wheel
off the ground.
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left / right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Exhaust pipe and silencer Refer to “ENGINE REMOVAL” on page 5-1.
Air filter case Refer to “THROTTLE BODY” on page 7-5.
Throttle body Refer to “THROTTLE BODY” on page 7-5.
Clutch cable Refer to “CLUTCH” on page 5-35.
Shift pedal Refer to “SHIFT SHAFT” on page 5-47.
1 Engine guard 1
2 Brake pedal 1
3Spring 1
4 Cylinder head breather hose 1
5 Drive sprocket cover 1
New
New
LS
M
8
8
7
6
13
4
5
New
1
12
3
2
11
10
9
55 Nm (5.5 m
•
kgf, 40 ft
•
Ibf)
T
.R
.
