YASKAWA GA800 Series User Manual

13 European Standards
100 YASKAWA TOEPC71061737B GA800 Drive Installation & Primary Operation

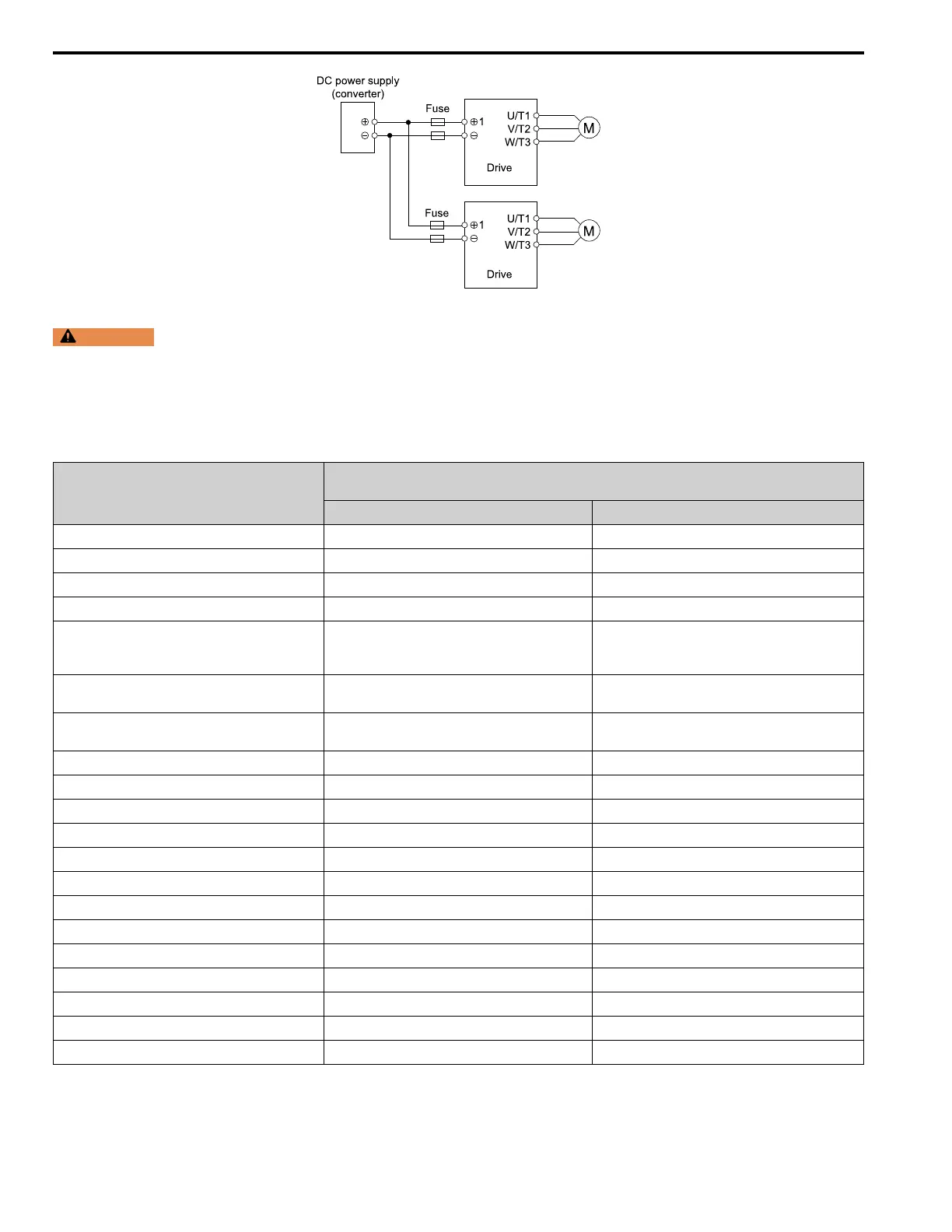

Figure 13.3 Wiring Example for DC Power Supply Input
WARNING
Electrical Shock Hazard. Do not ground the main circuit bus. Incorrect wiring can cause serious injury or death.
Note:
• Install a fuse for each drive when operating more than one drive. If one fuse blows, replace all fuses.
• Install the external filter (system) to comply with the EMC Directive.
Refer to Table 13.4 and Table 13.5 for the recommended fuses.
Table 13.4 Recommended Fuse (Three-Phase 200 V Class)
Drive Model
Fuse
Manufacturer: Bussmann
Model Quantity
2004 FWH-45B 2
2006 FWH-45B 2
2008 FWH-45B 2
2010 FWH-45B 2
2012
FWH-50B
FWH–80B
FWH–100B
2
2018
FWH-80B
FWH-100B
2
2021
FWH-80B
FWH-100B
2
2030 FWH-125B 2
2042 FWH-150B 2
2056 FWH-200B 2
2070 FWH-225A 2
2082 FWH-250A 2
2110 FWH-250A 2
2138 FWH-300A 2
2169 FWH-350A 2
2211 FWH-450A 2
2257 FWH-600A 2
2313 FWH-800A 2
2360 FWH-1000A 2
2415 FWH-1000A 2

YASKAWA GA800 Series Specifications

General

Series	GA800
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication	Ethernet/IP, Modbus RTU/TCP, PROFIBUS, PROFINET, DeviceNet
Safety	STO (Safe Torque Off)
Enclosure	IP00, IP20, IP55
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Ground Fault, Short Circuit
Enclosure Rating	IP00, IP20, IP55
Voltage Class	200V, 400V
