YASKAWA GA800 Series User Manual

6 Mechanical Installation
YASKAWA TOEPC71061737B GA800 Drive Installation & Primary Operation 17

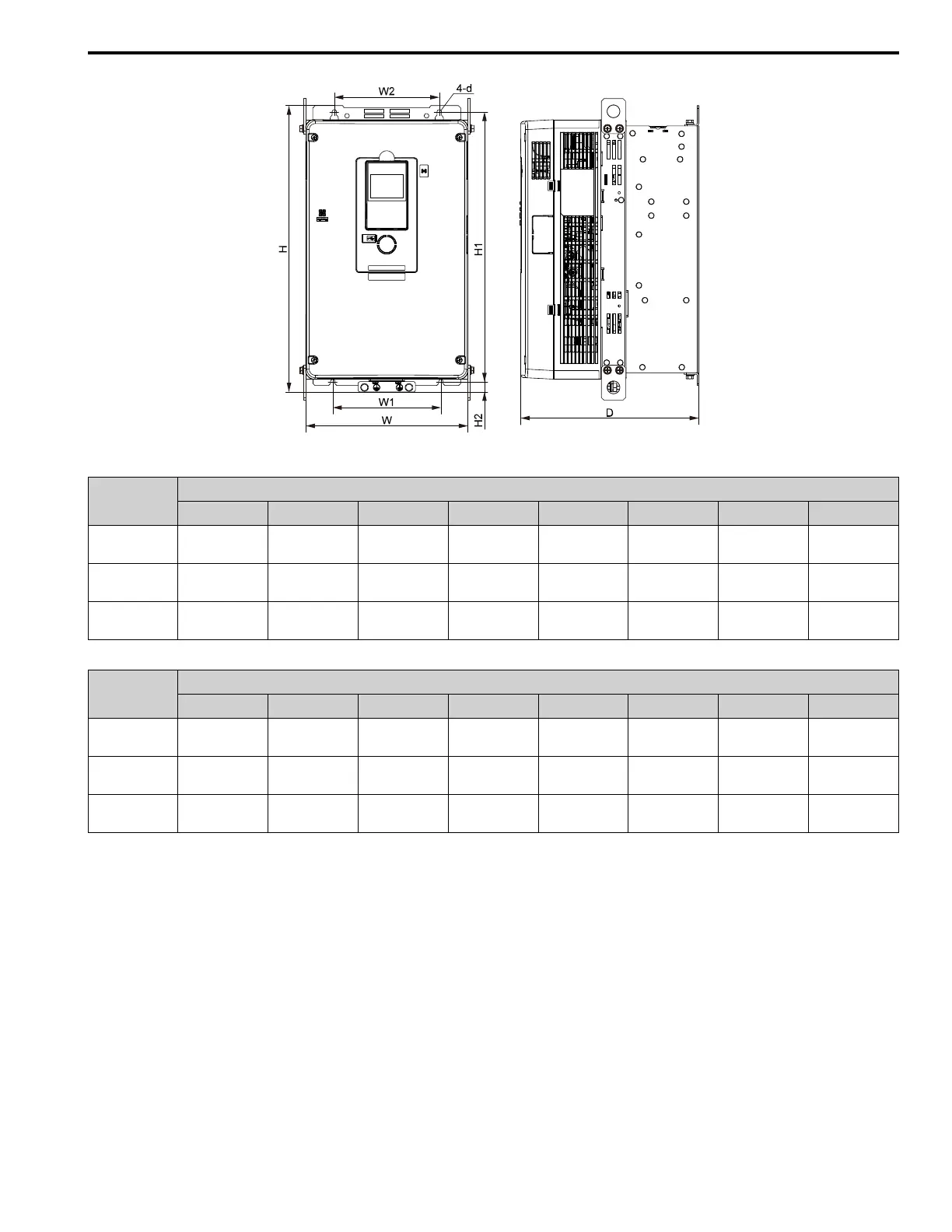

Table 6.3 IP20 Exterior and Mounting Dimensions for Models 2110 to 2211
Model
Dimensions mm (in)
W H D W1 W2 H1 H2 d
2110
240
(9.45)
400
(15.75)
280
(11.02)
195
(7.68)
186
(7.32)
375
(14.76)
17.5
(0.69)
M6
2138
255
(10.04)
450
(17.72)
280
(11.02)
170
(6.69)
165
(6.50)
424
(16.69)
16
(0.63)
M6
2169 - 2211
264
(10.39)
543
(21.38)
335
(13.19)
190
(7.48)
182
(7.17)
516
(20.31)
17.5
(0.69)
M8
Table 6.4 IP20 Exterior and Mounting Dimensions for Models 4075 to 4168
Model
Dimensions mm (in)
W H D W1 W2 H1 H2 d
4075
240
(9.45)
400
(15.75)
280
(11.02)
195
(7.68)
186
(7.32)
375
(14.76)
17.5
(0.69)
M6
4089 - 4103
255
(10.04)
450
(17.72)
280
(11.02)
170
(6.69)
165
(6.50)
424
(16.69)
16
(0.63)
M6
4140 - 4168
264
(10.39)
543
(21.38)
335
(13.19)
190
(7.48)
182
(7.17)
516
(20.31)
17.5
(0.69)
M8

YASKAWA GA800 Series Specifications

General

Series	GA800
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication	Ethernet/IP, Modbus RTU/TCP, PROFIBUS, PROFINET, DeviceNet
Safety	STO (Safe Torque Off)
Enclosure	IP00, IP20, IP55
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Ground Fault, Short Circuit
Enclosure Rating	IP00, IP20, IP55
Voltage Class	200V, 400V
