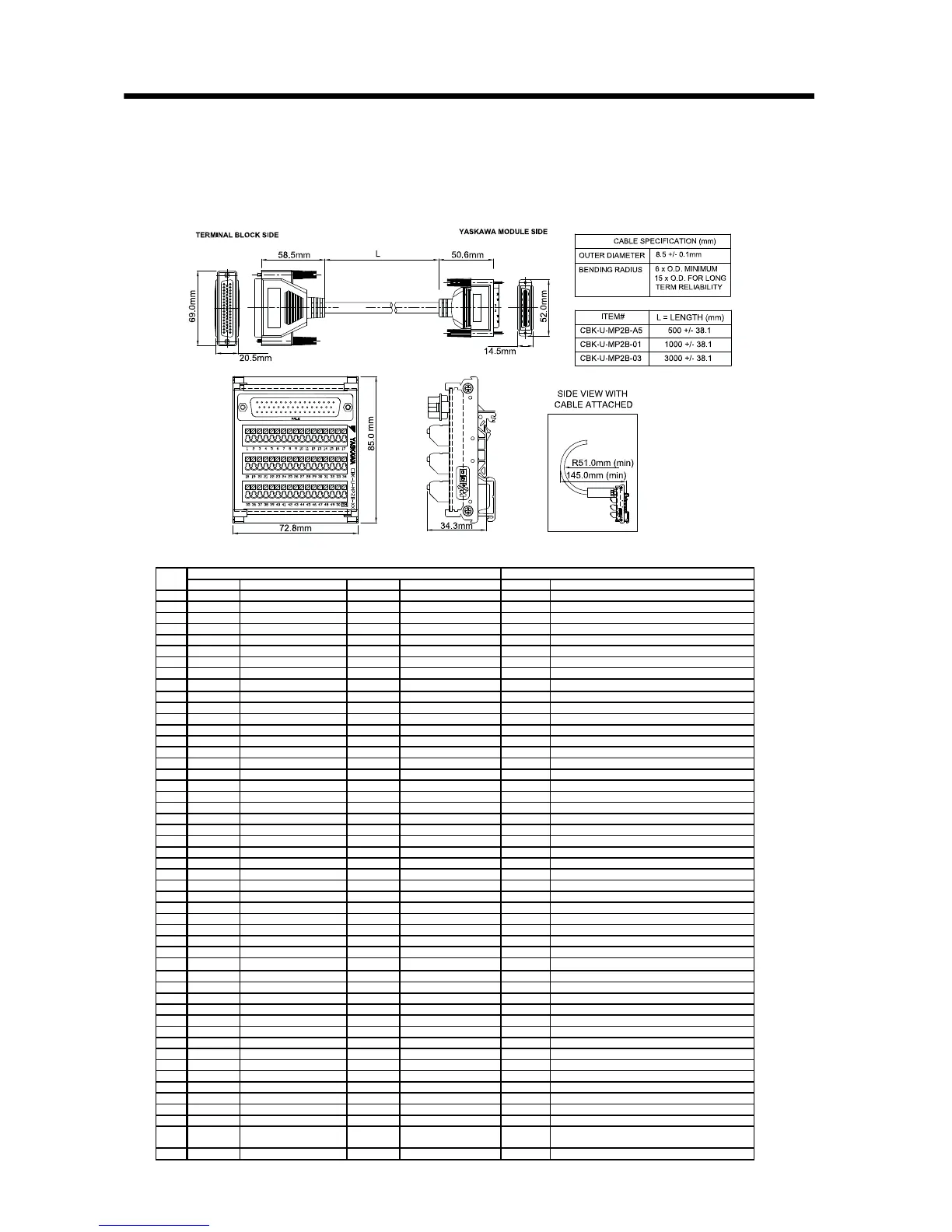

15.2 CBK-U-MP2B-xx
Terminal Block Kit for LIO-04/LIO-05/LIO-06
CN1 Signal CN1 Function CN2 Signal CN2 Function Signal Function
1 DICOM_1 Digital input common 1 DICOM_3 Digital input common 3 AO Analog output
2 DI_00
Digital input 0 DI_16 Digital input 16 AI Analog input
3 DI_02 Digital input 2 DI_18 Digital input 18 - -
4 DI_04 Digital input 4 DI_20 Digital input 20 PA+ Phase A pulse (+)
5 DI_06 Digital input 6 DI_22 Digital input 22 PA- Phase A pulse (-)
6 DICOM_2 Digital input common 2 DICOM_4 Digital input common 4 GND Encoder input ground
7 DI_08 Digital input 8 DI_24 Digital input 24 - -
8 DI_10 Digital input 10 DI_26 Digital input 26 - -
9 DI_12 Digital input 12 DI_28 Digital input 28 PILC5V
Phase-C latch pulse (-) for 5VDC input
10 DI_14 Digital input 14 DI_30 Digital input 30 PILC24V
Phase-C latch pulse (-) for 24VDC input
11 - - - - - -
12 DO_00 Digital output 0 DO_16 Digital output 16 - -
13 DO_02 Digital output 2 DO_18 Digital output 18 DICOM Digital input common
14 - - - - DI_00
Digital input 0
15 +24V_1 Digital output supply 1 +24V_3 Digital output supply 3 DI_02 Digital input 2
16 DO_04 Digital output 4 DO_20 Digital output 20 DI_04 Digital input 4
17 DO_06 Digital output 6 DO_22 Digital output 22 DI_06 Digital input 6
18 - - - - - -
19 DO_08 Digital output 8 DO_24 Digital output 24 - -
20 DO_10 Digital output 10 DO_26 Digital output 26 DO_24V Digital output 24V supply
21 - - - - DO_00 Digital output 0
22 +24V_2 Digital output supply 2 +24V_4 Digital output supply 4 DO_02 Digital output 2
23 DO_12 Digital output 12 DO_28 Digital output 28 DO_04 Digital output 4
24 DO_14 Digital output 14 DO_30 Digital output 30 DO_06 Digital output 6
25 - - - - DO_GND Digital output 0V common
26 - - - - AO_GND Analog output ground
27 DI_01
Digital input 1 DI_17 Digital input 17 AI_GND Analog input ground
28 DI_03 Digital input 3 DI_19 Digital input 19 - -
29 DI_05 Digital input 5 DI_21 Digital input 21 PB+ Phase-B pulse (+)
30 DI_07 Digital input 7 DI_23 Digital input 23 PB- Phase-B pulse (-)
31 - - - - GND Encoder input ground
32 DI_09 Digital input 9 DI_25 Digital input 25 - -
33 DI_11 Digital input 11 DI_27 Digital input 27 - -
34 DI_13 Digital input 13 DI_29 Digital input 29 PILC12V
Phase-C latch pulse (-) for 12VDC input
35 DI_15 Digital input 15 DI_31 Digital input 31 PIL Phase-C latch pulse (+)
36 - - - - - -
37 DO_01 Digital output 1 DO_17 Digital output 17 - -
38 DO_03 Digital output 3 DO_19 Digital output 19 DICOM Digital input common
39 0V_1 Digital output 0VDC 1 0V_3 Digital output 0VDC 3 DI_01
Digital input 1 (shared with pulse latch input)
40 - - - - DI_03 Digital input 3
41 DO_05 Digital output 5 DO_21 Digital output 21 DI_05 Digital input 5
42 DO_07 Digital output 7 DO_23 Digital output 23 DI_07 Digital input 7
43 - - - - - -
44 DO_09 Digital output 9 DO_25 Digital output 25 - -
45 DO_11 Digital output 11 DO_27 Digital output 27 DO_24V Digital output 24V supply
46 0V_2 Digital output 0VDC 2 0V_4 Digital output 0VDC 4 DO_01 Digital output 1
47 - - - - DO_03 Digital output 3
48 DO_13 Digital output 13 DO_29 Digital output 29 DO_05 Digital output 5
49 DO_15 Digital output 15 DO_31 Digital output 31 DO_07
Digital output 7 (shared with position agreement
'COIN' signal)
50 - - - - DO_GND Digital output 0V common
LIO-06 (JAPMC- IO2305-E)
LIO-04 (JAPMC-IO2303) / LIO-05 (JAPMC-IO2304)
Pin
No.
Functionality Chart for CBK-U-MP2B-xx
