YASKAWA MP2300Siec User Manual

1.2
MP23iec Appearance
1.2.1 MP2300Siec Appearance
4
1.2 MP23iec Appearance
1.2.1 MP2300Siec Appearance

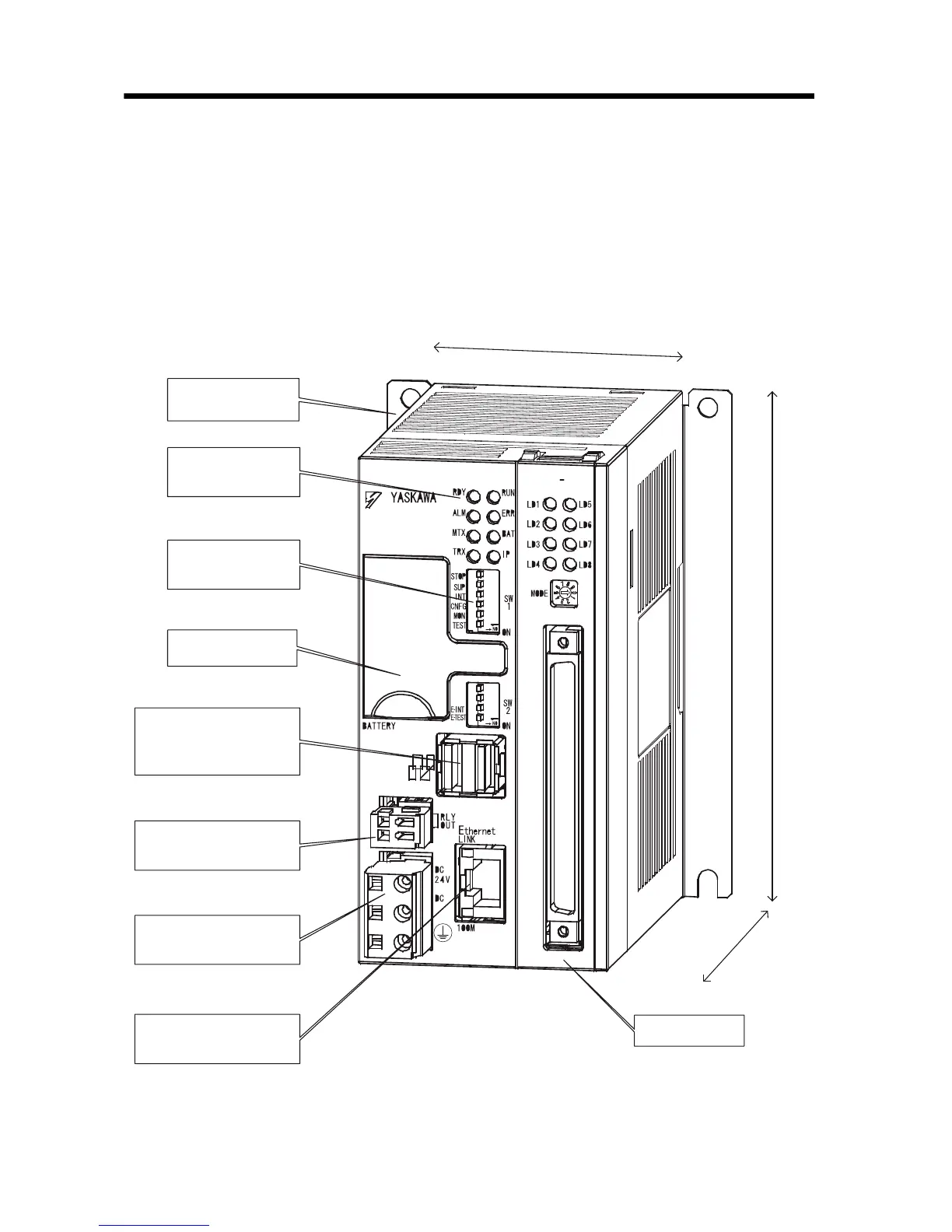

The following figure shows the external appearance of the Controller
with metal fittings for attachment. The dimensions in the figure do not
include the length of metal fittings.
Battery cover
MECHATROLINK- II
connector
(1 network, 2 ports)
DIP switch
(6 points+4 points)
Metal fittings
for attachment
LED
(8 points)
MP
LIO
3-pole connector
(24 VDC power supply)
Ethernet connector
with LEDs
2-pole connector
(RLY OUT)
Option slot
64 mm (2.52 in.)
130 mm
(5.12 in.)
108 mm
(4.25 in.)
0
0
01
23
Siec
0V
I/O
M-I/II
