14.5 LIO-04/05 Modules
14.5.1 External Appearance
77
14.5 LIO-04/05 Modules
14.5.1 External Appearance

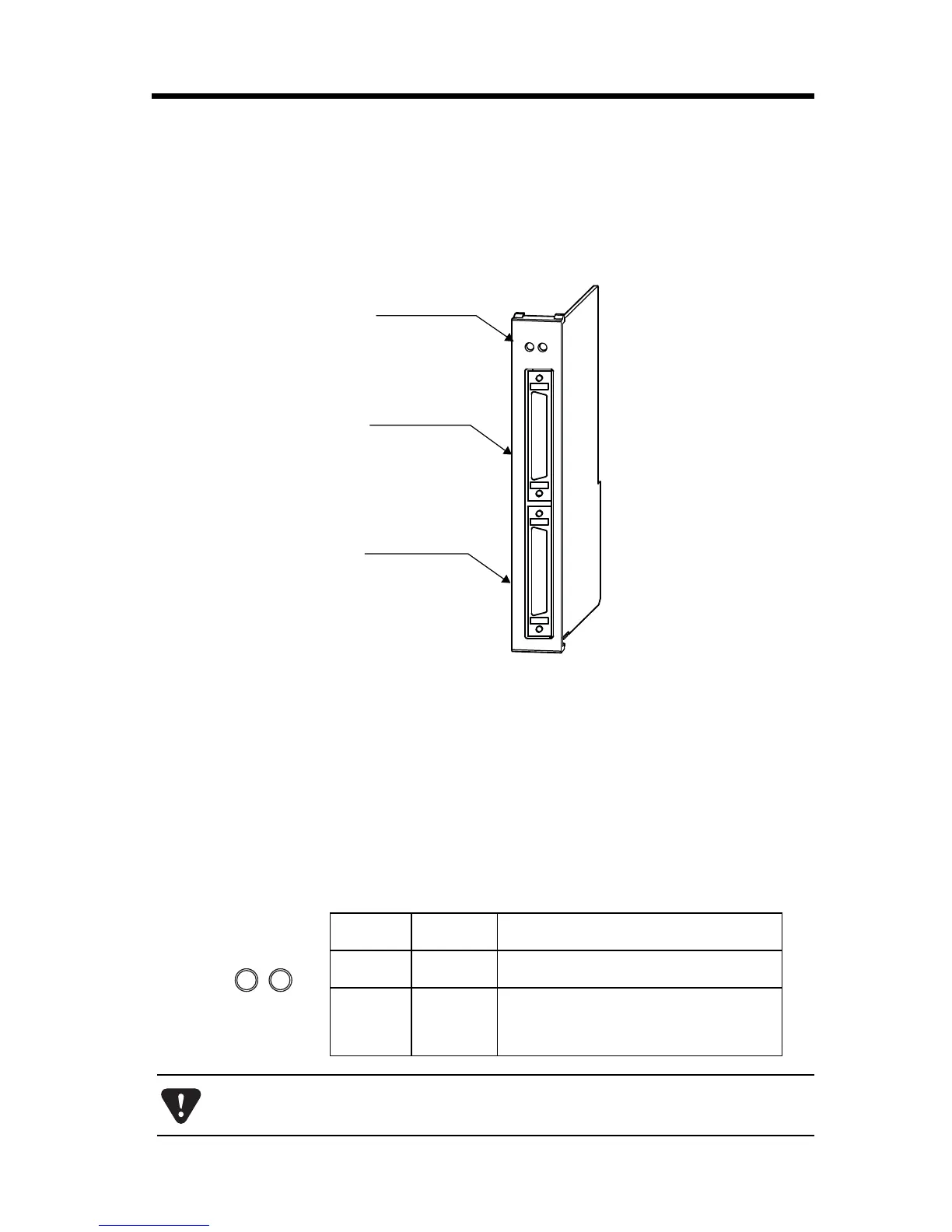

The following figure shows the external appearance of the LIO-04/05
Modules.
14.5.2 Outline of Functions
The LIO-04/05 Modules are Optional Boards for the MP2300Siec
which provide a digital I/O function. There are 32 digital inputs (DI)
and 32 digital outputs (DO) (sink mode outputs) for the digital I/O
function.
14.5.3 Indicators
The following table shows the status of LIO-04/05 Module LED
indicators.
Indicator
Name
Indicator
Color
Status
RUN
Green
Lit: Module normal
Not lit: Module error
FU
Red
Lit: One of the output protection fuses is
blown.
Not lit: All of the output protection fuses are
normal.
The burnout detection circuit will not function when there is no external 24V
power supply.
