14.2 AO–01 (Analog Output) Module

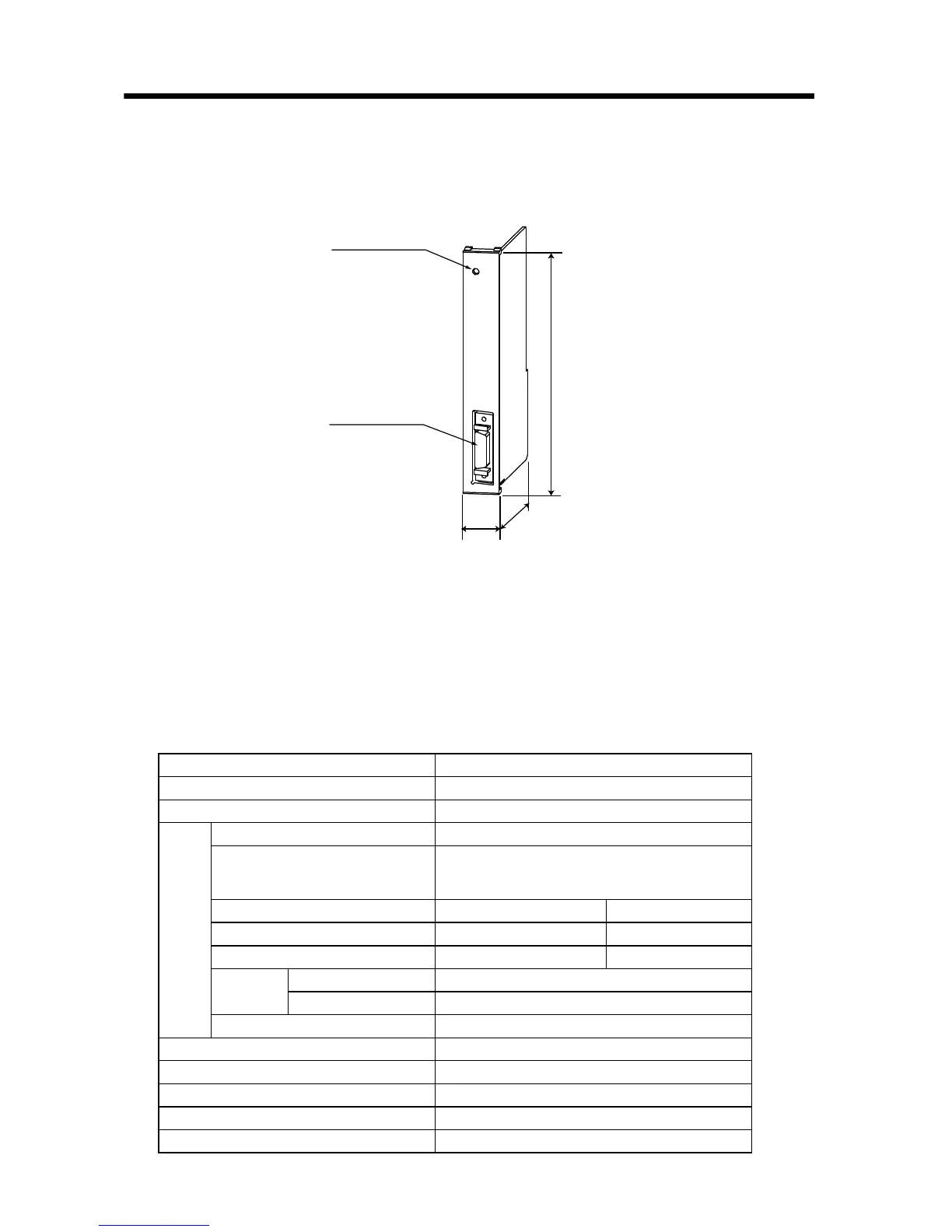

14.2.1 Appearance
58
14.2 AO–01 (Analog Output) Module
14.2.1 Appearance
14.2.2 Module Functions
The AO-01 module has four channels for analog output. Two types
of analog output ranges are available; -10 to +10V and 0 to +10V.
14.2.3 Module Specifications
The following table shows the AO-01 Module hardware
specifications..
Item
Specifications
Name AO-01
Model JAPMC-AN2310-E
Analog Output
Number of Channels 4
Isolation
Between channels: Not isolated.
Between output connector and system power
supply: Photocoupler isolation
Analog Output Range 10V
0 to +10V
Resolution 16-bit (-31276 to +31276)
15-bit
(
0 to +31276
)
Absolute Accuracy 100 mV Max
0.3 mA Max
Accuracy
25°C 0.1% (10 mV)
0 to 55°C 0.3% (30 mV)
Input Conversion Time 1.2 msec Max
Connectors CN1: Output connector
LED Indicator RUN (green)
Current Consumption 500 mA Max
Dimensions 125 × 95 (H×D)
Mass 90 g
AO-01
LED indicator
Analog output
connector CN1
RUN
CN1
125 mm
95 mm
19.3 mm
