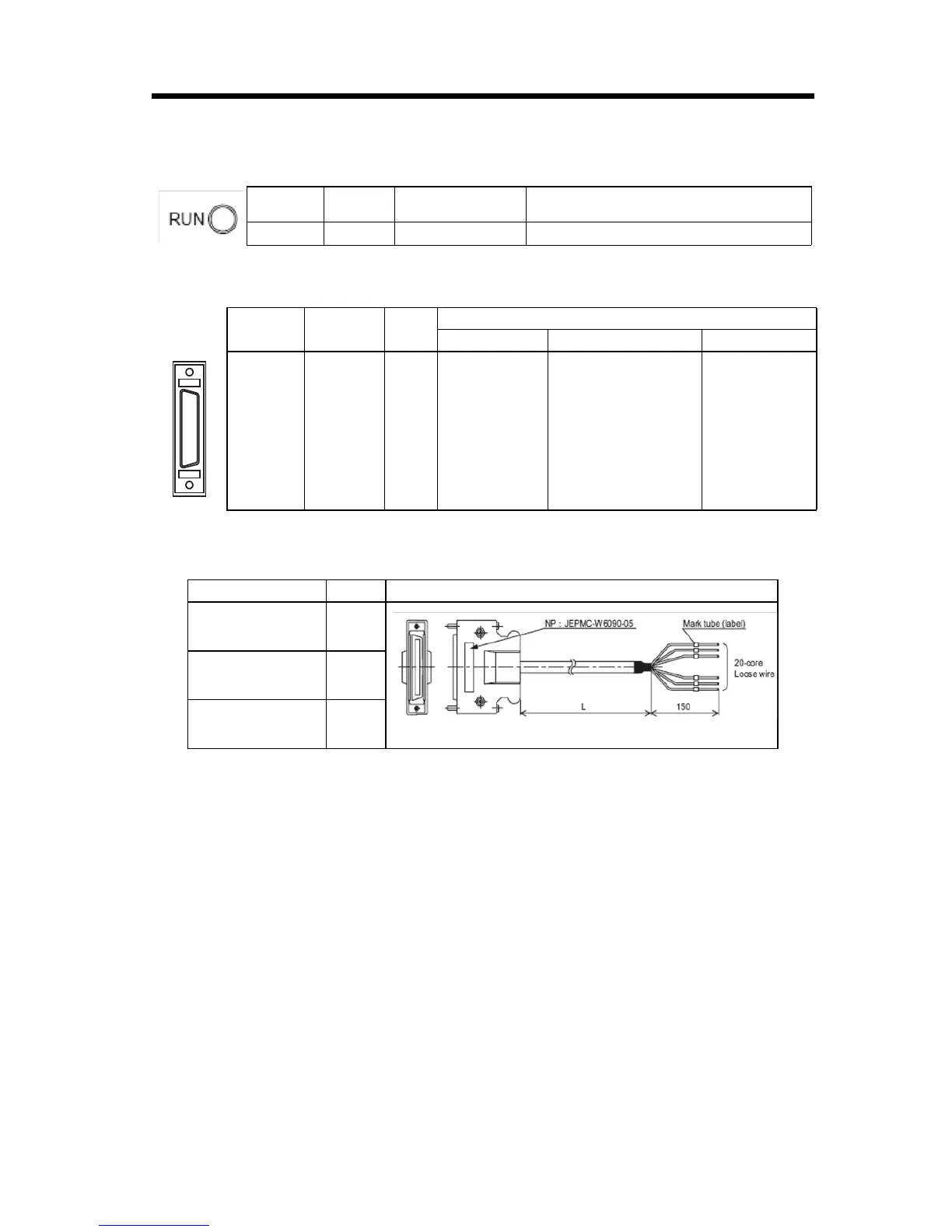

14.2 AO–01 (Analog Output) Module
14.2.4 Indicators
59
14.2.4 Indicators
14.2.5 Connector Specifications
Applicable Cable: JEPMC-W6090-Standard Cable Model and
External Appearance
Indicator
Indicator
Color
Status when Lit Status when not Lit
RUN Green
Normal operation Operation stopped (no access from CPU)
Name
Connector
Name
# of
Pins
Connector Model
Module Side Cable Side Manufacturer
Analog
Output
Connector
CN1
20
10220-52A3PL
• Connector
10126-3000VE
• Shell
10326-52A0-008
(Screw locking), or
10326-52F0-008
(One-touch locking)
Sumitomo 3M
Corporation
Model Length External Appearance (JEPMC-W6090-)
JEPMC-W6090-05 0.5 m
JEPMC-W6090-10 1.0 m
JEPMC-W6090-30 3.0 m
