YASKAWA MP2300Siec User Manual

5.1 DIN Rail Method
5.1.1 DIN Rails and Spacer
19
5 Mounting
There are two methods for mounting the controller.
• DIN rail (standard method for MP2300Siec)
• Screw mount (standard method for MP2310iec)
5.1 DIN Rail Method
5.1.1 DIN Rails and Spacer

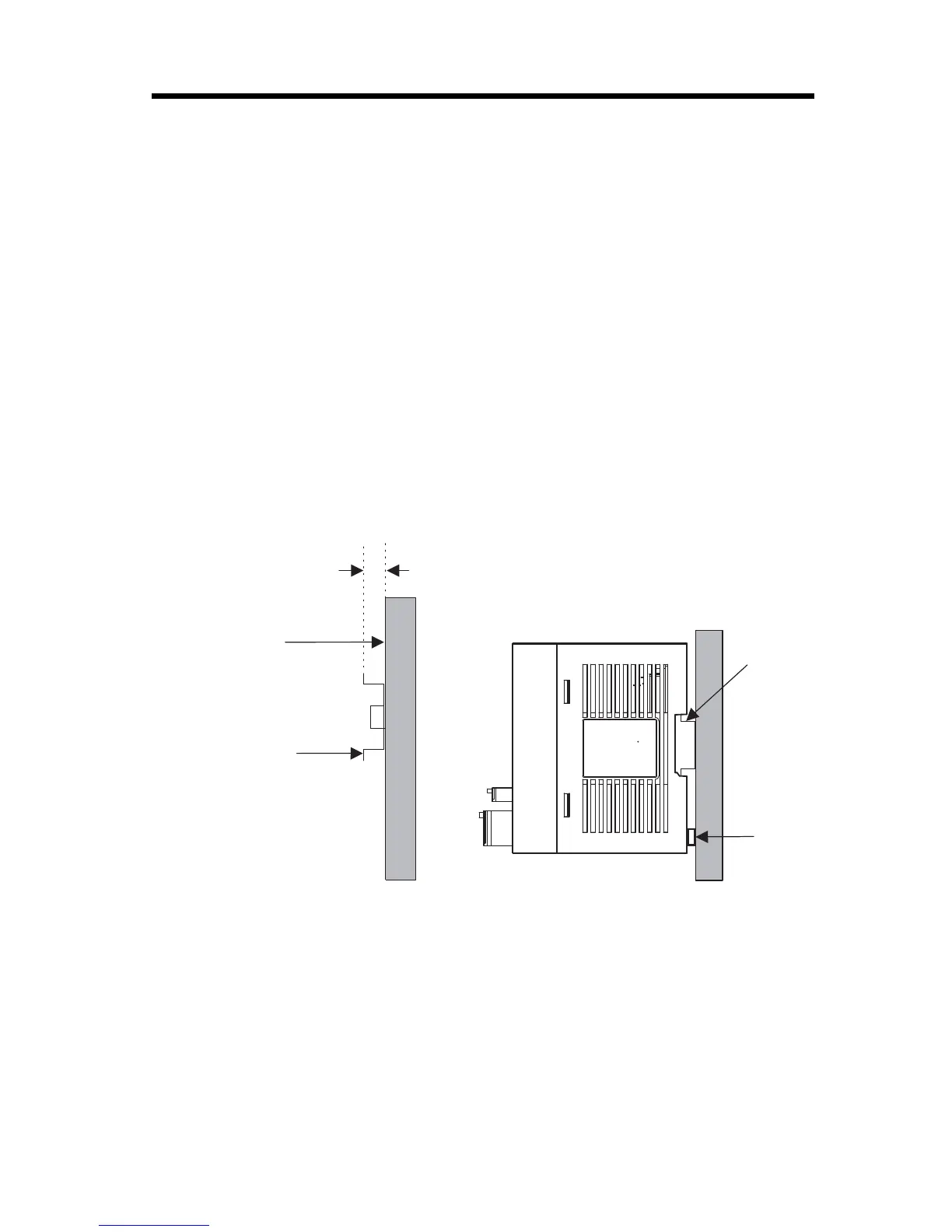

Several types of DIN rails are available: with 7mm to 15mm gap from
the mounting base as shown in the following diagram. If mounting a
MP23iec using DIN rail with 10 mm gap, install a spacer on
the rear of the MP23iec near the bottom to protect the
MP23iec from vibration and shock.
DIN rail clips may be ordered for mounting the MP2310iec (see
page 17)
Mounting base
DIN rail
Gap from mounting base: 7.0 mm to 15.0 mm
For a 10-mm gap
DIN rail
Space
r
