5.1
DIN Rail Method
5.1.2
Procedure for Mounting to DIN Rail
20
5.1.2 Procedure for Mounting to DIN Rail
Use the following procedure to attach the DIN rail mounting parts to
the MP23iec and then mount the MP23iec to the DIN
rail.
1.

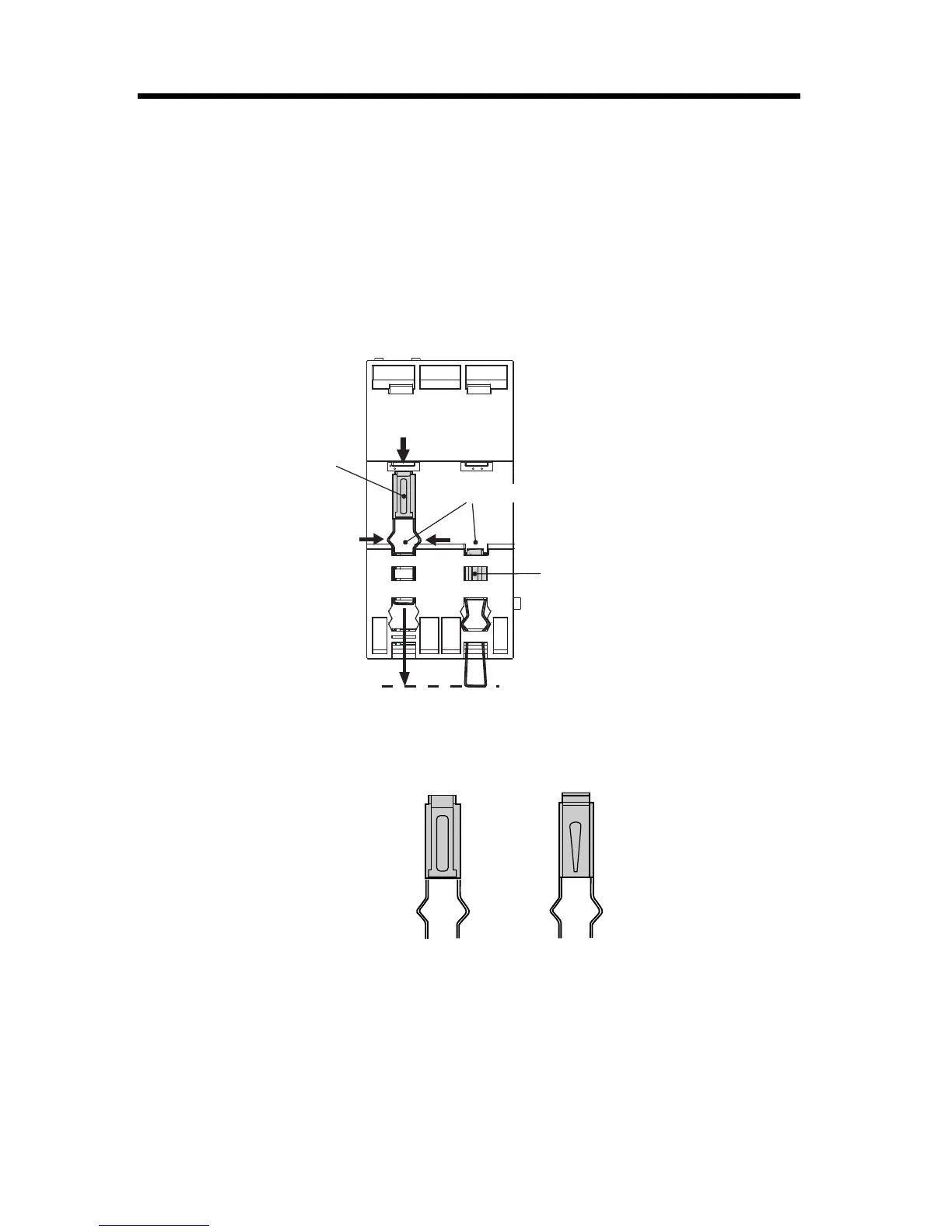

Insert the DIN rails to the dotted line in the two slots on the rear of
the MP23
iec as shown in the following figure.
 The following figure shows the front and back of a mounting clip. Insert
each clip so that its front faces outward.
MP2300Siec Rear Side
DIN rail mounting
bracket
(inserted position)
DIN rail
mounting bracket
Insert the parts in these positions
Front Back
