YASKAWA MP2300Siec User Manual

5.1 DIN Rail Method
5.1.2 Procedure for Mounting to DIN Rail
21
2. Pull the DIN rail mounting clips down to release them.
 Mounting the DIN rail

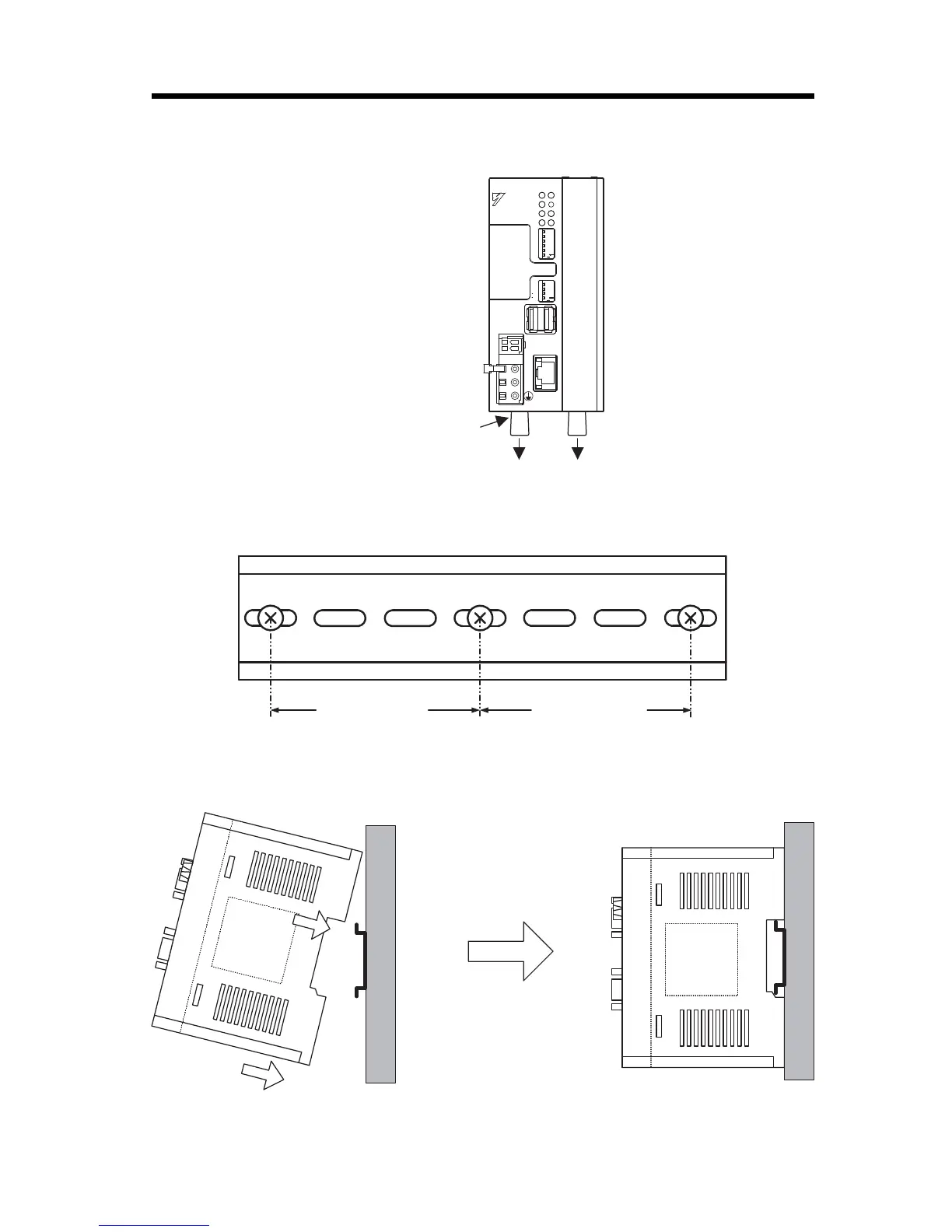

Make sure to fix a DIN rail at 300mm or less pitch as shown in the
figure below.
3.
Hook the MP23iec to the top of the DIN rail (a), and then
push it towards the mounting base to secure it in place (b).
Clip
&%
4.;
176
'VJGTPGV
&%
8
.+0-
/
0V
Option Slot
;#5-#9#
6'56
4&;
#./
/6:
64:
470
'44
$#6
+2
59

59

/10
%0()
+06
572
5612
$#66'4;
㪧㪦㪮㪜㪩
'
M-I/II
+0+6
01
01
'
6'56
MP2300Siec
300 mm or less 300 mm or less
