14.6 LIO-06 Module

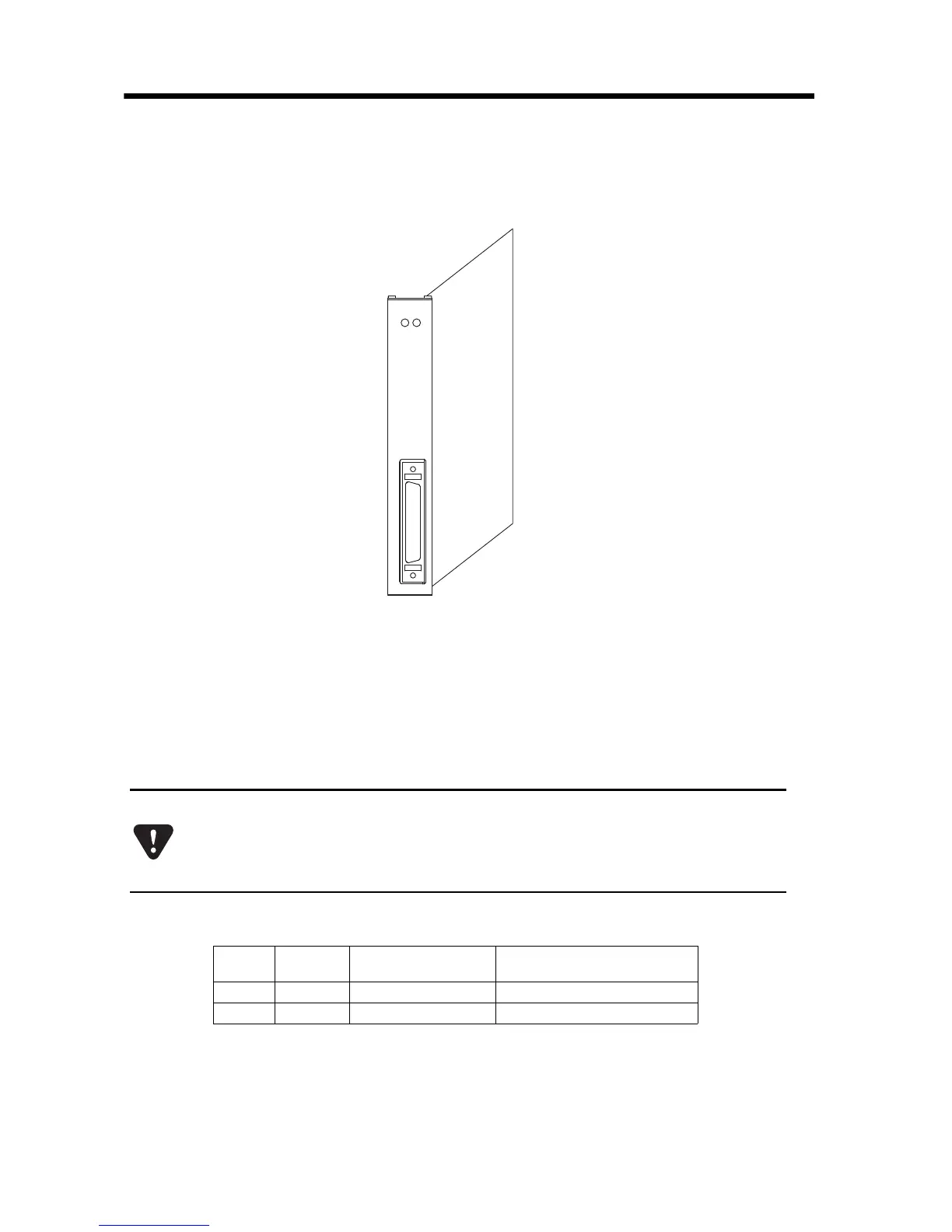

14.6.1 Module External Appearance
92
14.6 LIO-06 Module
14.6.1 Module External Appearance
14.6.2 Outline of Functions
The LIO-06 Module has digital I/O, analog I/O, and pulse encoder
functionality, including a registration latch input. The LIO-06 Module
is fully compatible with the MP940 I/O connector. This option card
also has a high speed output capability, which can set an output
within 13s of passing a specified encoder position.
14.6.3 LED Indicators and Switch Settings
The ALM light indicates the following conditions
• Fuse fault
• ASIC error
• A-phase disconnect
• B-phase disconnect
When converting equipment from the prior generation MP940 controller, users
should bear in mind that the analog inputs that had previously been wired to the
V-REF and T-REF inputs on the SGDH must now be connected directly to the
LIO-06 option module.
Display
Name
Color Status when Lit Staus when OFF
RUN
Green Normal Stopped. (No access by CPU)
ALM
Red Fault Normal operation
LIO-06
ALMRUN
CN1
