7.1 Switch Settings
7.1.1 SW1
33
7 DIP Switches
7.1 Switch Settings
The DIP switch settings are only needed when the power is initially
turned ON.

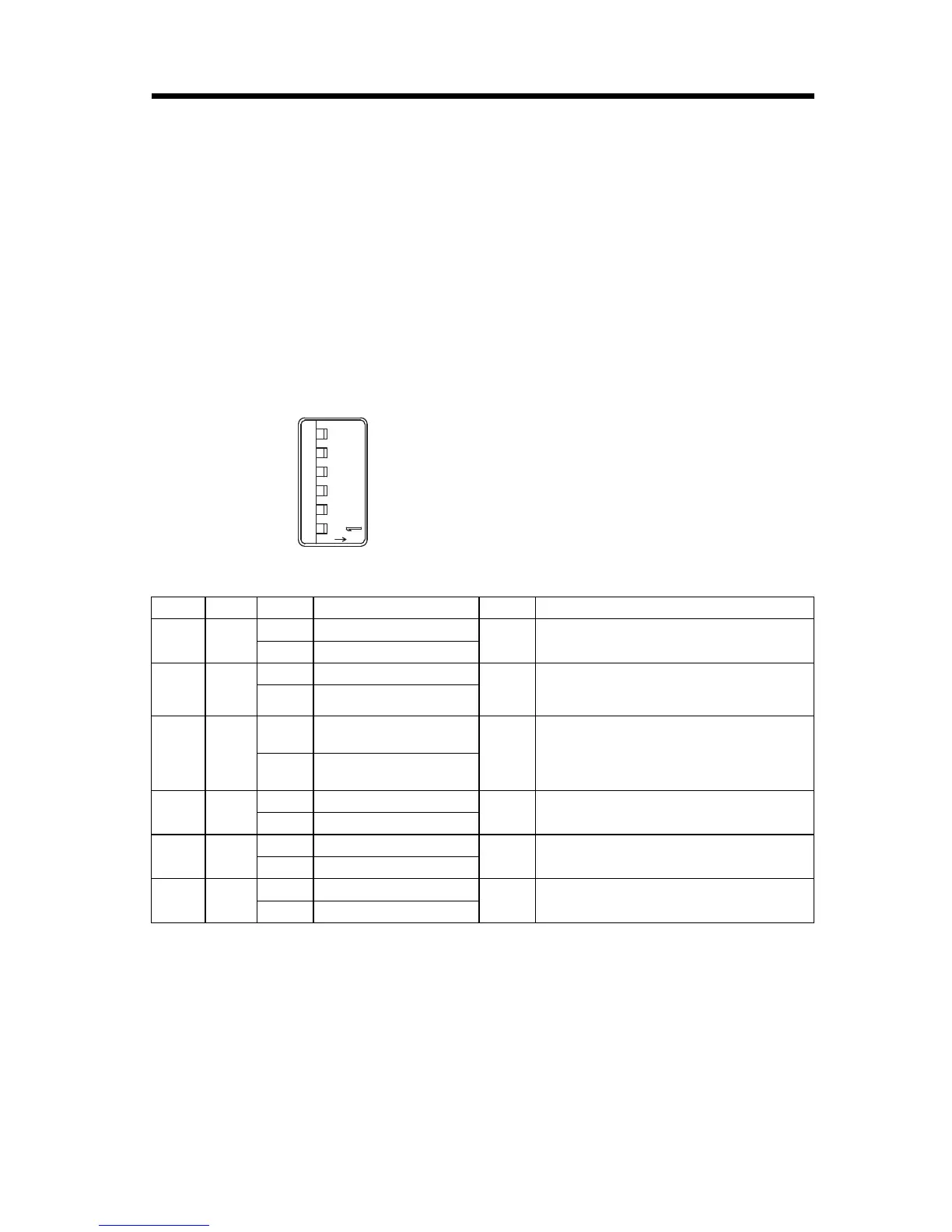

7.1.1 SW1
SW
1
TEST
MON
CNFG
INT
SUP
STOP
NO
Switch Name Setting Operating Mode Default Details
S1-6
STOP
ON User program stopped
OFF
Stops the user program execution.
OFF User program running
S1-5
SUP
ON Firmware Load
OFF
If set to ON, the controller boots up in the
mode that can upgrade the firmare. See
Section 17.
OFF Normal Operation
S1-4
INIT
ON
For diagnostic
purposes only
OFF
Always set to OFF.
OFF
For diagnostic
purposes only
S1-3
CNFG
ON Self-configuration Mode
OFF
Set to ON to execute self-configuration for
connected devices and option card.
OFF Normal Operation
S1-2
MON
ON Network Boot
OFF
Always leave set to OFF.
OFF ROM Boot
S1-1
TEST
ON System Use
OFF
Always leave set to OFF.
OFF Normal Operation
