14.1 AI-01 (Analog Input) Module
14.1.1 Appearance
51
14 Option
Cards
14.1
AI-01 (Analog Input) Module
14.1.1
Appearance
14.1.2
Module Functions
The AI–01 module is an analog
input module with voltage and/or
current in
put modes.

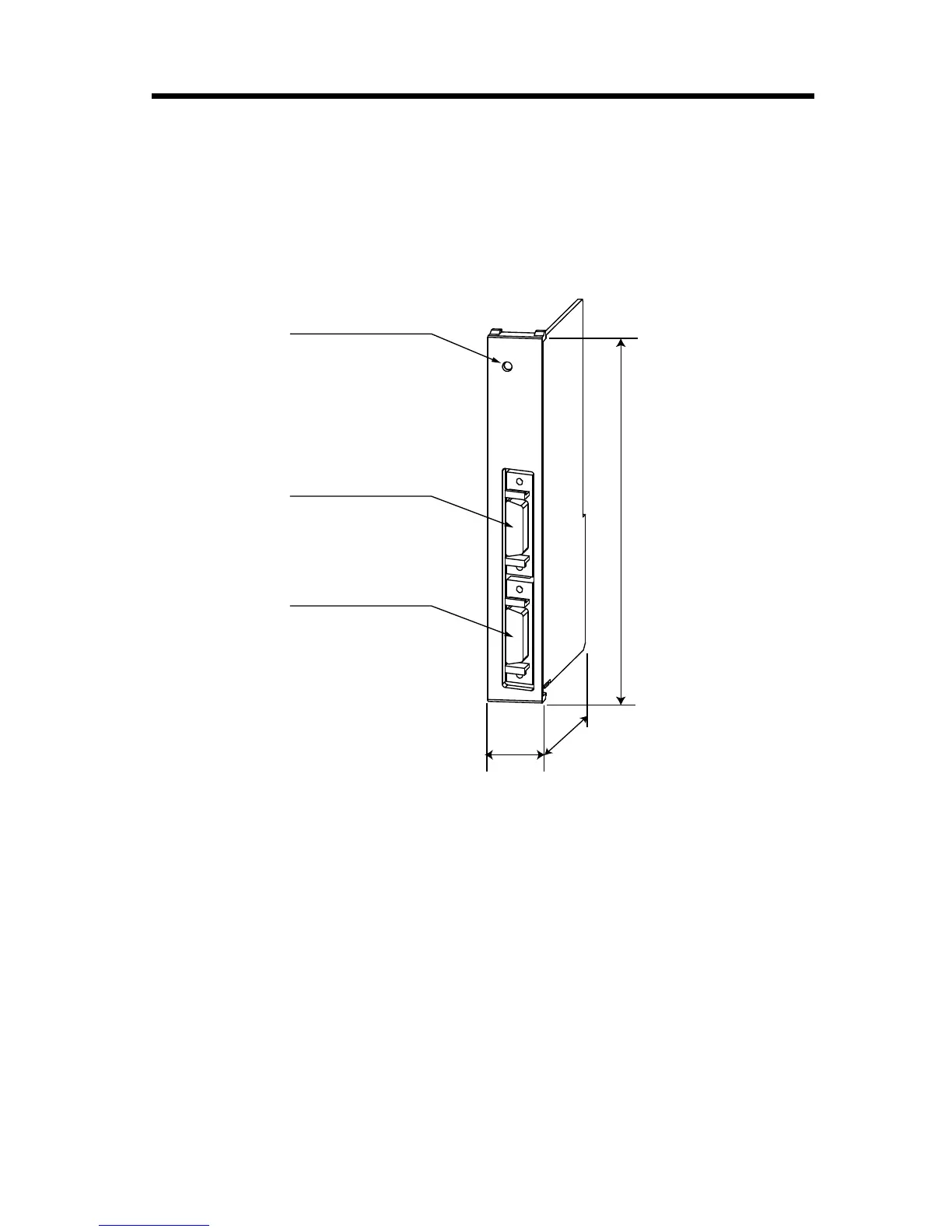

AI-01
LED indicator
Analog input
connector CN1
RUN
CN1
CN2
Analog input
connector CN2
125 mm
95 mm
19.3 mm
