14.4 LIO-01/02 Module
14.4.1 Appearance
67
14.4 LIO-01/02 Module
14.4.1 Appearance

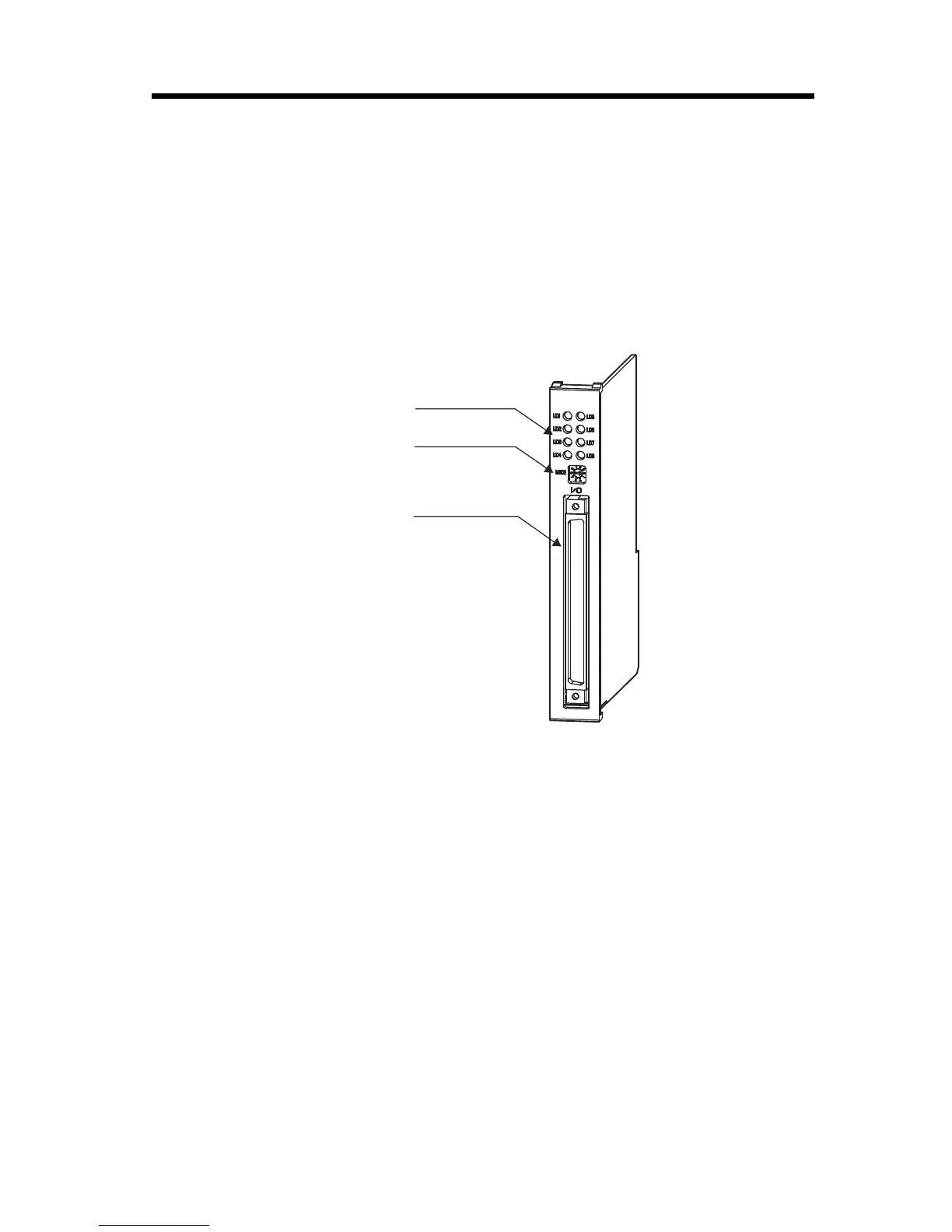

External Appearance
The following figure shows the external appearance of the
LIO-01/02 Modules
14.4.2 Outline of Functions
The LIO-01 Module provides digital I/O and encoder input functions.
There are 16 digital inputs (DI) and 16 digital outputs (DO) for the
digital I/O function. There is also one encoder input.
These option cards also have a high speed output capability, which
can set an output within 13s of passing a specified encoder
position.
The following diagram gives an outline of the LIO-01 Module
functions. The only functional difference betwteen the LIO-01 and
the LIO-02 is the active state of the output circuits (See 14.4.8
LIO-01 Digital Output Circuit (Sink Mode Output) Connection
Example and 14.4.9 LIO-02 Digital Output Circuit (Source Mode
Output) Connection Example).
To Next Page
