YASKAWA MP2300Siec User Manual

2.1
Power Supply Connector
2.1.2
Connection Procedure
10
2.1.2 Connection Procedure
The power supply terminal has a removable connector. Use the
following procedure to wire the terminal to the power supply
connector. Use 0.2 mm
2
to 0.51 mm
2
(AWG24 to AWG20) twisted-
pair cable.

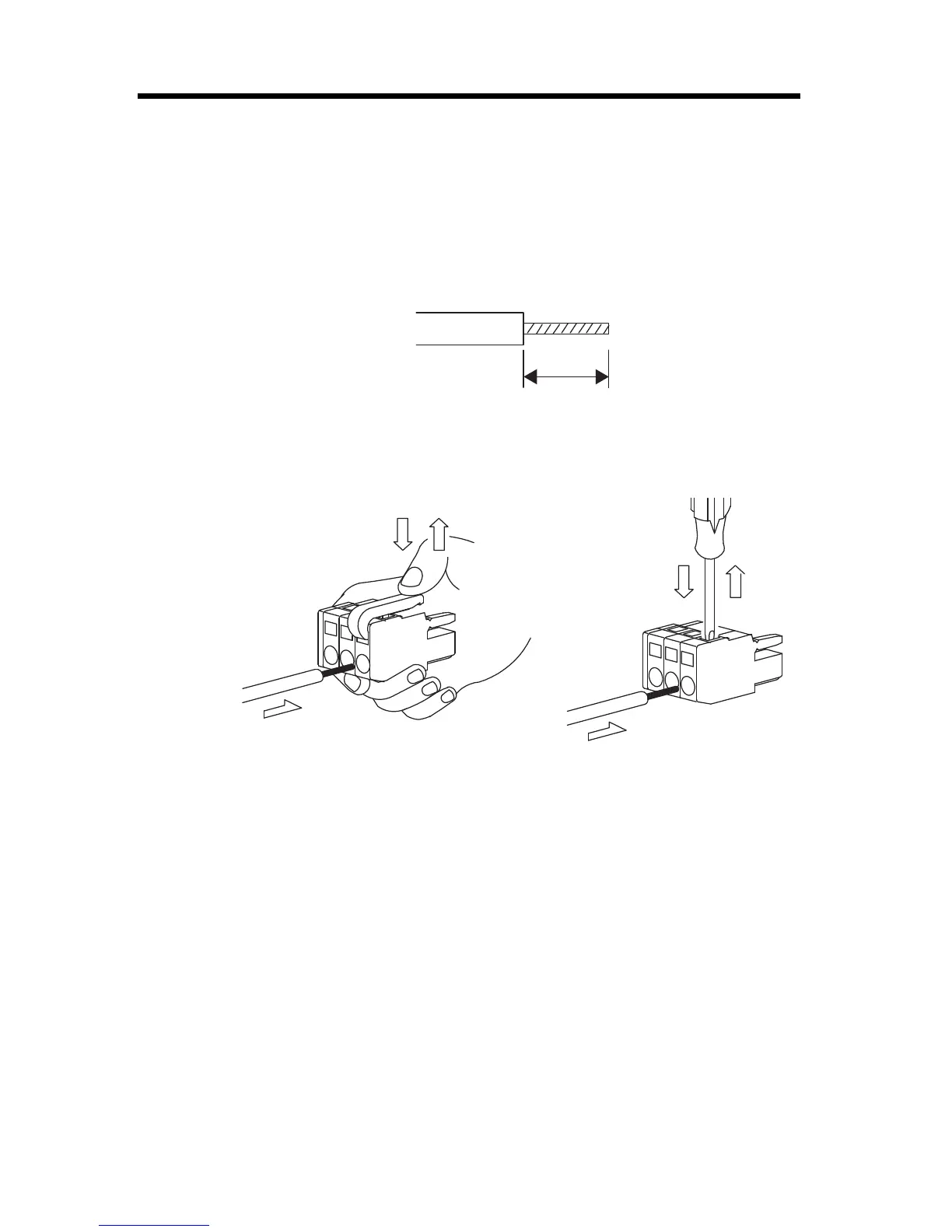

1.
Strip approx. 6.5 mm from the end of the wire.
2. Open the wire insert opening on the terminal with the tool shown in
Fig. A or Fig. B.
3. Insert the wire into the opening and then close the opening by
releasing the lever or removing the screwdriver.
6.5 mm
Fig. A (with lever) Fig. B (with screwdriver)
