5.1 DIN Rail Method
5.1.3 Screw Mount Method
23
5.1.3 Screw Mount Method
Use a panel mounting bracket (JEPMC-OP2300S-E) using the
following procedure to mount an MP23iec on the panel. This
adapter is only required if screw mounting an MP2300Siec.
1.
Release DIN fixing locks (two) at the center of the panel mounting
clamp.
2. Insert two convex portions at the top of the panel mounting clamp
into holes of the controller chassis.
3. Push the clamp as indicated by an arrow above onto the controller
chassis and use the DIN fixing locks to secure the mounting
clamp.

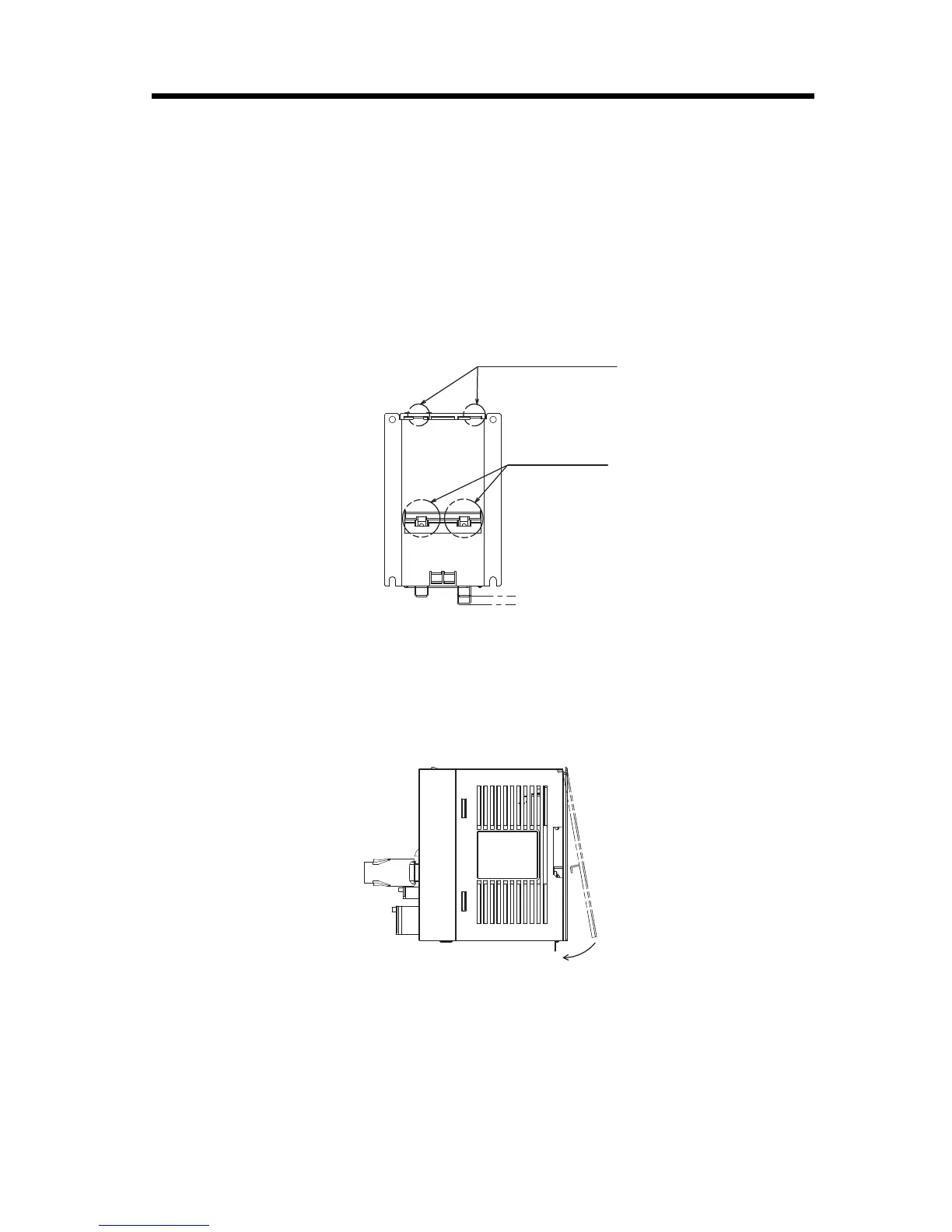

Two convex clamps
Two DIN fixing
lock positions
When locked
When released
Attachment for mounting bracket
