14.3 DO–01 (Digital Output) Module
14.3.4 DO-01 Digital Output Circuit (Sink Mode Output) Connection Example
63

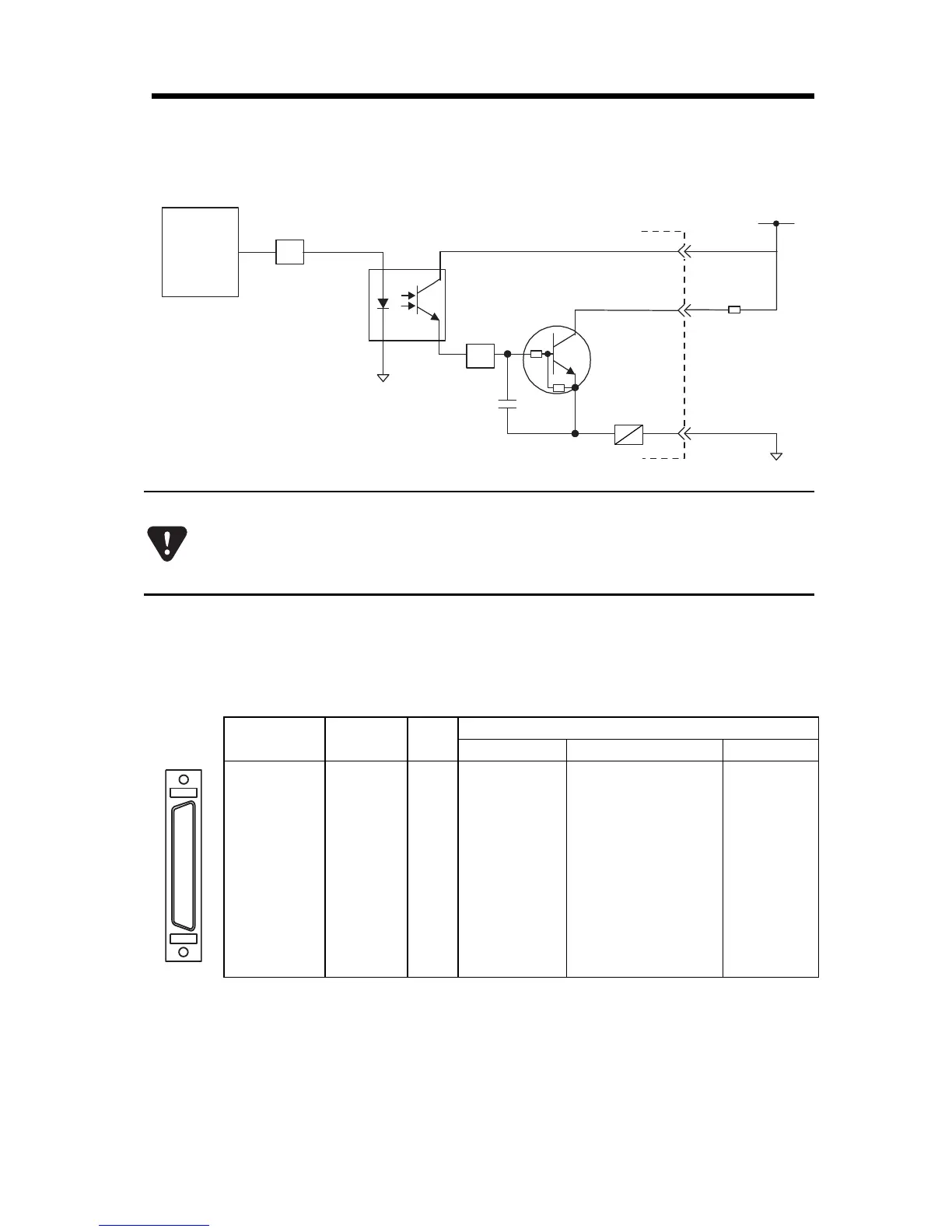

14.3.4 DO-01 Digital Output Circuit (Sink Mode Output)
Connection Example
14.3.5 DO-01 Module Connections
Connects the DO-01 Module to external output signals.
External outputs: 64 points
Applicable Cable: JEPMC-W6060-
A fuse is inserted into the output common line of the DO-01 Module for circuit
protection. However, the fuse may not be blown out in the cases such as layer
shorts in outputs. To ensure the circuit protection, provide a protective element
such as fuse in each output as shown in the above diagram.
Name
Connector
Name
No of
Pins
Connector Model
Module Side Cable Side Manufacturer
External I/O
Connector
CN1/CN2
50
10250-52A2JL
• Connector
• 10150-3000VE
• Shell
• 10350-52A0-008
• (Screw locking), or
• 10350-52F0-008
• (One-touch locking)
Sumitomo
3M
Corporation
To Next Page
