YASKAWA SGDV User Manual

5.2 Setting Common Basic Functions
5-15
5
Operation

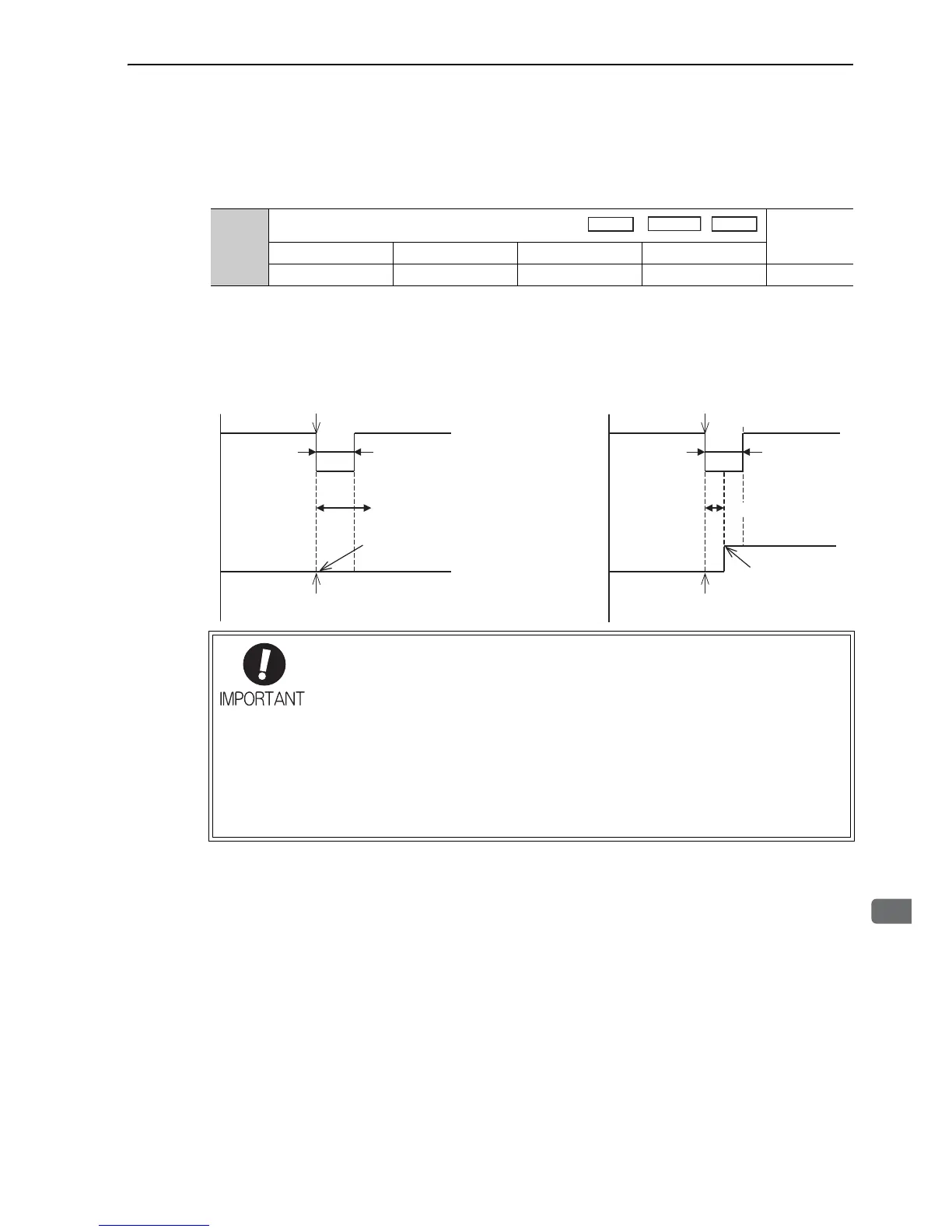

5.2.6 Instantaneous Power Interruption Settings
Determines whether to continue operation or turn the servomotor’s power OFF when the power supply voltage
is interrupted.
An instantaneous power interruption will be detected when the main circuit power supply is turned OFF. If the
time required to restore the main circuit power supply is less than the parameter set value, the servo will con-
tinue operation. If the restoration time is the equal to or greater than the set value, the servomotor’s power is
turned OFF.
If the uninterruptible power supplies are used for the control power supply and main circuit power supply, the
SERVOPACK can withstand an instantaneous power interruption period in excess of 1000 ms.
Pn509
Instantaneous Power Cut Hold Time
Classification
Setting Range Setting Unit Factory Setting When Enabled
20 to 1000 1 ms 20 Immediately Setup
• The holding time of the control power supply for the 200 V SERVOPACKs is approxi-
mately 100 ms, but the time of the control power supply for the 100 V SERVOPACKs
is approximately 65 ms. If the control power supply makes control impossible during
an instantaneous power interruption, the same operation will be performed as for nor-
mally turning OFF the power supply, and the setting of the parameter will be ignored.
• The holding time of the main circuit power supply varies with the output of the SER-
VOPACK. If the load on the servomotor is large and an undervoltage alarm (A.410)
occurs, the parameter will be ignored.
• The holding time of the control power supply (24 VDC) for the 400 V SERVOPACKs
depends on the capability of the power supply (not included). Check the power supply
before using the application.
Speed
Position
Torque
Instantaneous power interruption
Set value for Pn509 ≥ OFF time (t)
Instantaneous power interruption
OFF time (t)
Power OFF
Set value for
Pn509 ≥ OFF time (t)
Set value for Pn509 <
OFF time (t)
Main circuit
power supply
Set value for
Pn509
Servomotor
status
Power ON
Instantaneous power interruption
Set value for Pn509 < OFF time (t)
Instantaneous power interruption
Forced OFF.
OFF time (t)
Main circuit
power supply
Set value for
Pn509
Servomotor
status
Power ON
Operation
continues.

YASKAWA SGDV Specifications

General

Protection Class	IP20
Communication Protocols	MECHATROLINK-III, EtherCAT
Feedback	Incremental encoder, Absolute encoder
Type	Servo Drive
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Encoder error
Ambient Temperature	0°C to 55°C
Storage Temperature	-20°C
Vibration Resistance	5.9 m/s² (0.6G)
