Stopping Methods
6-13
* 0 or 1 for flux vector control and open-loop vector 2 control.
îš„Deceleration to Stop
If the Stop Command is input (i.e., the Run Command is turned OFF) when b1-03 is set to 0, the motor decel-
erates to a stop according to the deceleration time that has been set. (Factory setting: C1-02 (Deceleration
Time 1))
If the output frequency when decelerating to a stop falls below b2-01, the DC injection brake will be applied
using the DC current set in b2-02 only for the time set in b2-04.
For deceleration time settings, refer to page 6-18 Setting Acceleration and Deceleration Times.

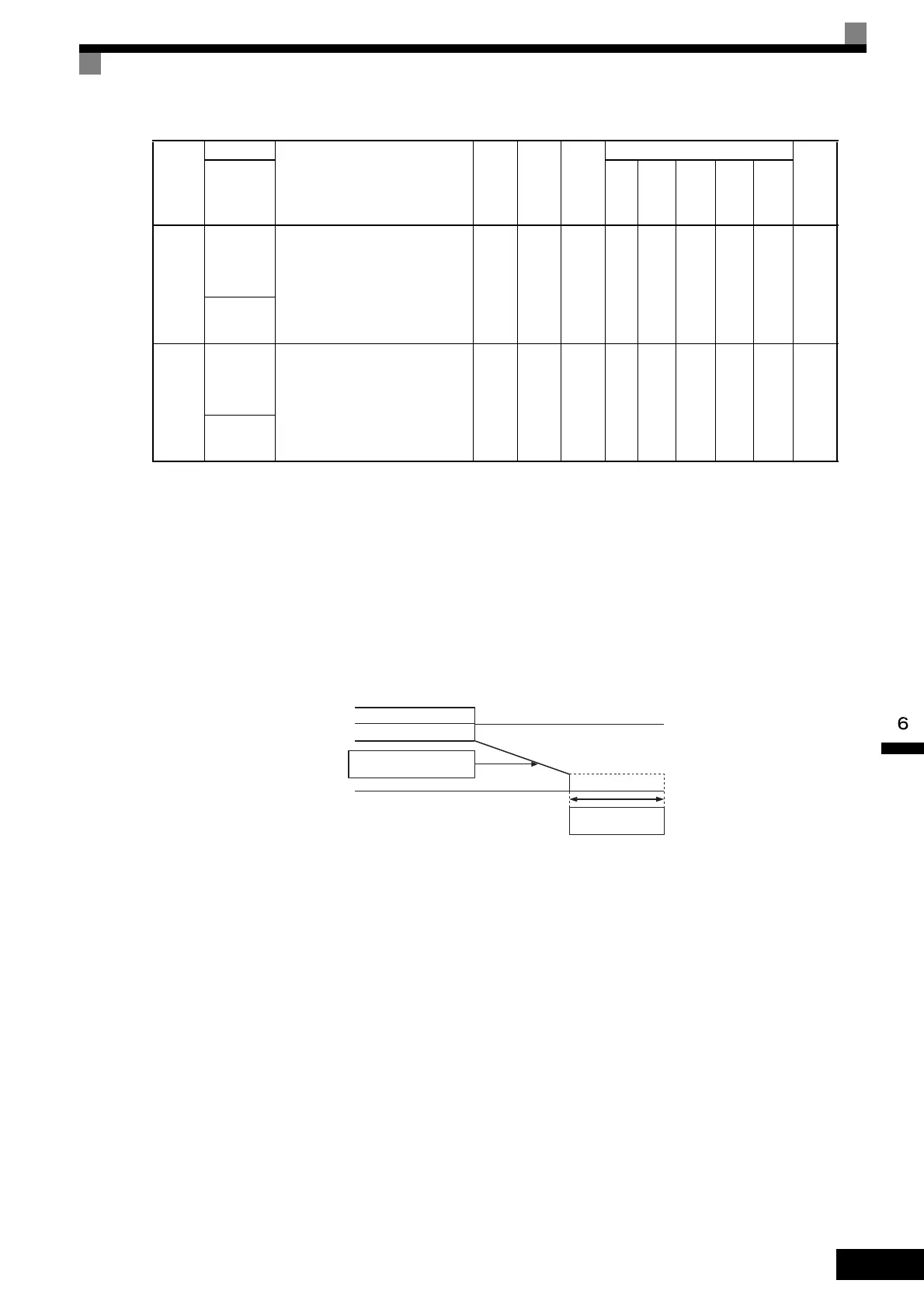

Fig 6.13 Deceleration to Stop
b2-03
DC injec-
tion brak-
ing time at
start
Used to set the time to perform DC
injection braking at start in units of 1
second.
Used to stop coasting motor and
restart it. When the set value is 0, DC
injection braking at start is not per-
formed.
0.00
to
10.00
0.00 s No A A A A A 18BH
DCInj
Time@Start
b2-04
DC injec-
tion brak-
ing time at
stop
Used to set the time to perform DC
injection braking at stop in units of 1
second.
Used to prevent coasting after the
Stop Command is input. When the set
value is 0.00, DC injection braking at
stop is not performed.
0.00
to
10.00
0.50 s No A A A A A 18CH
DCInj
Time@Stop
Con-
stant
Number
Name
Description
Setting
Range
Factory
Setting
Change
during
Opera-
tion
Control Methods
MEMO-
BUS
Regis-
ter
Display
V/f
V/f
with
PG
Open-
loop
Vec-
tor
1
Flux
Vec-
tor
Open
Loop
Vec-
tor
2
Decelerates to stop at
deceleration time
Output frequency
Run command
ON
OFF
DC injection brake time
when stopping (b2-04)
DC injection brake
To Next Page
