Confirmations upon Delivery
1-5
îš‹ Component Names

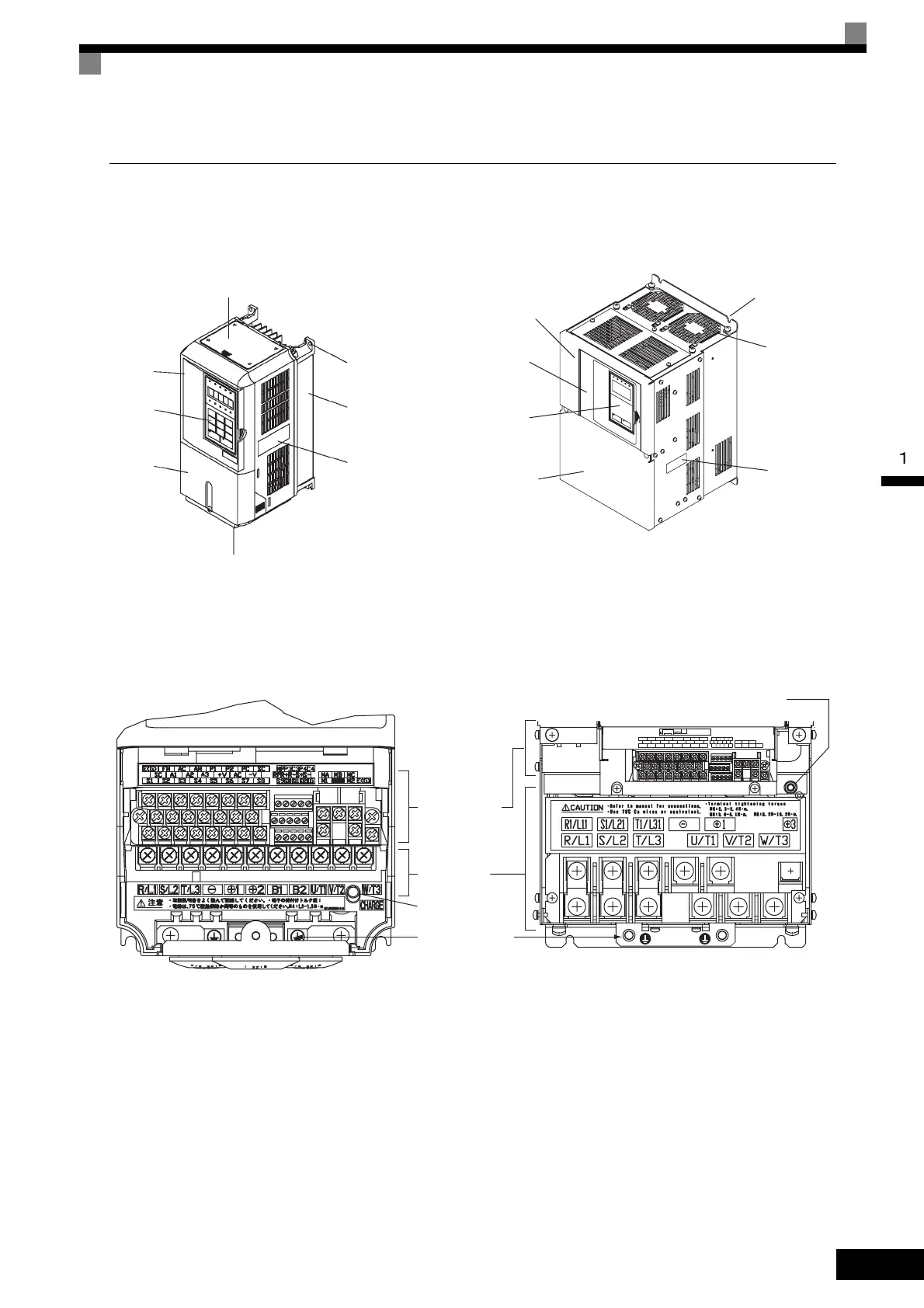

The external appearance and component names of the Inverter are shown in Fig 1.4. The Inverter with the ter-
minal cover removed is shown in Fig 1.5.
Fig 1.4 Inverter Appearance
Fig 1.5 Terminal Arrangement
Inverter cover
Mounting
hole
Cooling
fan
Nameplate
Front cover
Digital
Operator
Terminal
cover
Top protective cover
Bottom protective cover
15 kW or Less 18.5 kW or More
Mounting hole
Front
cover
Digital
Operator
Terminal
cover
Diecast case
Nameplate
Control circuit
terminals
Charge indicator
Main circuit
terminals
Charge indicator
Ground terminal
15 kW or Less
18.5 kW or More
