Specifications of Options and Peripheral Devices
The following options and peripheral devices can be used for the Inverter. Select them according to the
application.
* 1. Use a ground fault interrupter with a current sensitivity of 200 mA minimum and an operating time of 0.1 s minimum to prevent operating errors. The interrupter
must be suitable for high-frequency operation.
Example: NV series by Mitsubishi Electric Corporation (manufactured in or after 1988)
EG, SG series by Fuji Electric Co., Ltd. (manufactured in or after 1984)
* 2. The finement zero-phase reactor is manufactured by Hitachi Metals.

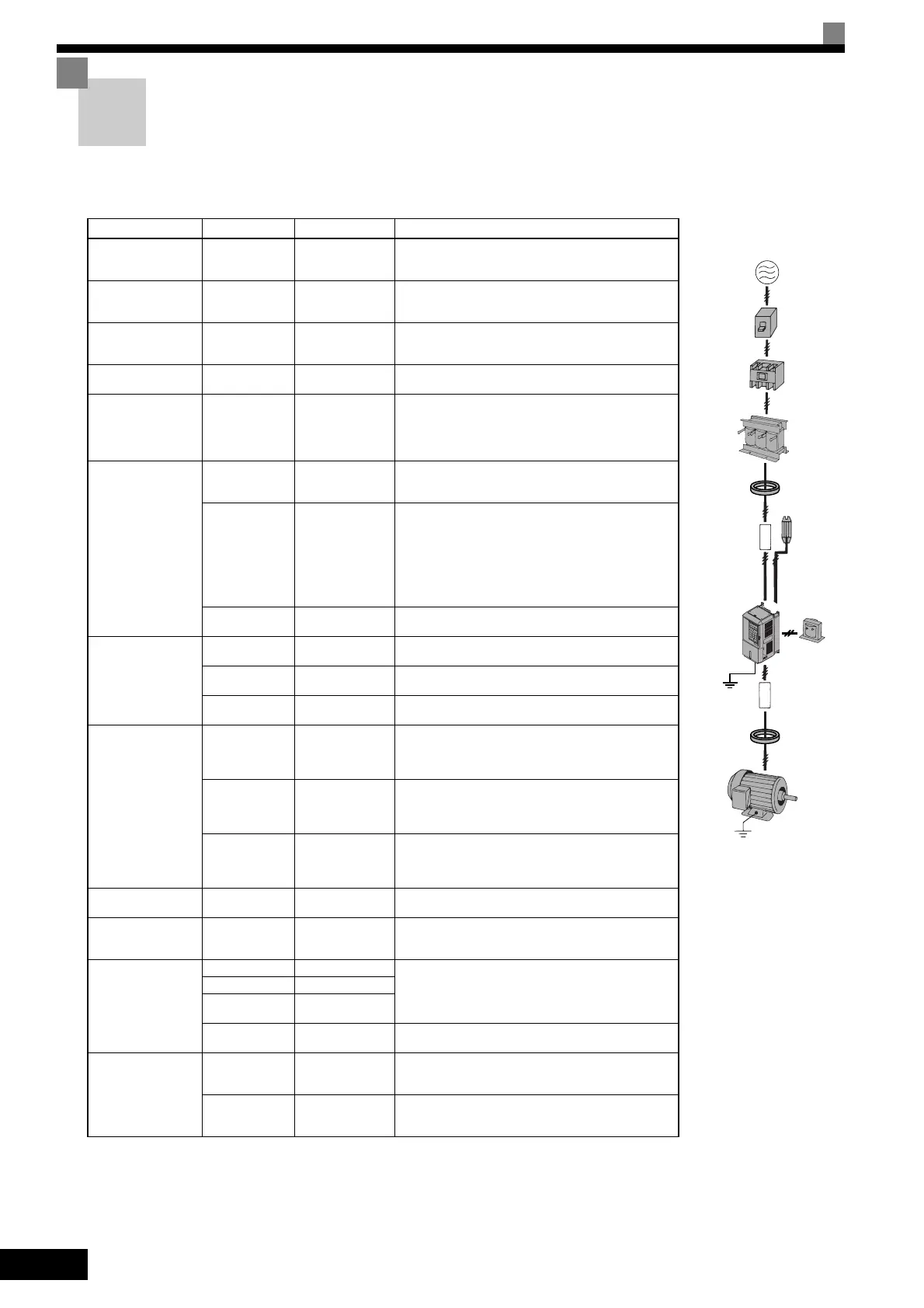

Table 9.4 Options and Peripheral Devices
Purpose Name Model (Code) Descriptions
Protect Inverter wiring
MCCB or Ground
Fault Interrupter
*1
NF
Always connect a breaker to the power supply line to protect
Inverter wiring. Use a ground fault interrupter suitable for high
frequencies.
Prevents burning when
a Braking Resistor is
used.
Magnetic
Contactor
SC series
Install to prevent the braking resistor from burning out when
one is used. Always attach a surge absorber to the coil.
Contains switching
surge
Surge Absorber DCR2-
Absorbs surge from the magnetic contactor and control relays.
Connect surge absorbers to all magnetic contactors and relays
near the Inverter.
Isolates I/O signals Isolator DGP
Isolates the I/O signals of the Inverter and is effective against
inductive noise.
Improve the input
power factor of the
Inverter
DC Reactor
AC Reactor
UZDA-
UZBA-
Used to improve the input power factor of the Inverter. All
Inverters of 18.5 kW or higher contain built-in DC reactors.
These are optional for Inverters of 15 kW or less. Install DC
and AC reactors for applications with a large power supply
capacity (600 kVA or higher).
Reduce the affects of
radio and control device
noise
Input Noise Filter
LNFD-
FN-
Reduces noise coming into the Inverter from the power supply
line and to reduce noise flowing from the Inverter into the
power supply line. Connect as close to the Inverter as possible.
Finemet zero-
phase reactor to
reduce radio
noise
*2
F6045GB
(FIL001098)
F11080GB
(FIL001097)
F200160BP
(300-001-041)
Reduces noise from the line that sneaks into the Inverter input
power system. Insert as close to the Inverter as possible.
Can be use on both the input side and output side.
Output Noise Fil-
ter
LF-
Reduces noise generated by the Inverter. Connect as close to
the Inverter as possible.
Enable stopping the
machine in a set time
Braking Resistor
ERF-150WJ
(R00)
Consumes the regenerative motor energy with a resistor to
reduce deceleration time (use rate: 3% ED).
Braking Resistor
Unit
LKEB-
(75600-K0)
Consumes the regenerative motor energy with a resistor to
reduce deceleration time (use rate: 10% ED).
Braking Unit
CDBR-
(72600-R0)
Used with a Braking Resistor Unit to reduce the deceleration
time of the motor.
Operates the Inverter
externally
VS Operator
(small plastic
Operator)
JVOP-95•
(73041-0905X-)
Allows frequency reference settings and ON/OFF operation
control to be performed by analog references from a remote
location (50 m max.).
Frequency counter specifications: 60/120 Hz, 90/180Hz
VS Operator
(Standard steel-
plate Operator)
JVOP-96•
(73041-0906X-)
Allows frequency reference settings and ON/OFF operation
control to be performed by analog references from a remote
location (50 m max.).
Frequency counter specifications: 75 Hz, 150 Hz, 220 Hz
Digital Operator
Connection Cable
1 m cable: (72606-
WV001)
3 m cable: (72606-
WV003)
Extension cable to use a Digital Operator remotely.
Cable length: 1 m or 3 m
Controls an Inverter
system
VS System Mod-
ule
JGSM-
A system controller that can be match to the automatic control
system to produce an optimum system configuration.
Provides Inverter
momentary power loss
recovery time
Momentary Power
Loss Recovery
Unit
P000
(73600-P000)
Handles momentary power losses for the control power supply
for models 7.5 kW or less (maintains power for 2 s).
Set/monitor frequen-
cies and voltages exter-
nally.
Frequency Meter DCF-6A
Devices to set or monitor frequencies externally.
Frequency Setter RV30YN20S (2 kΩ)
Frequency Setter
Knob
CM-3S
Output Voltmeter SCF-12NH
Measures the output voltage externally and designed for use
with a PWM Inverter.
Correct frequency refer-
ence input, frequency
meter, ammeter scales
Variable Resistor
Board for Fre-
quency Reference
2 kΩ (ETX003270)
20 kΩ (ETX003120)
Connected to the control circuit terminals to input a frequency
reference.
Frequency Meter
Scale Correction
Resistor
(RH000850) Calibrates the scale of frequency meters and ammeters.
Power supply
Molded-case
circuit breaker
or ground fault
interrupter
Magnetic con-
tactor (MC)
Zero phase reactor
Zero phase
reactor
Motor
Ground
Input noise filter
Output noise filter
Inverter
Ground
Braking resistor
DC reactor
for power
factor
improvement
AC reactor for power
factor improvement
Varispeed F7
