2-2
Connections to Peripheral Devices

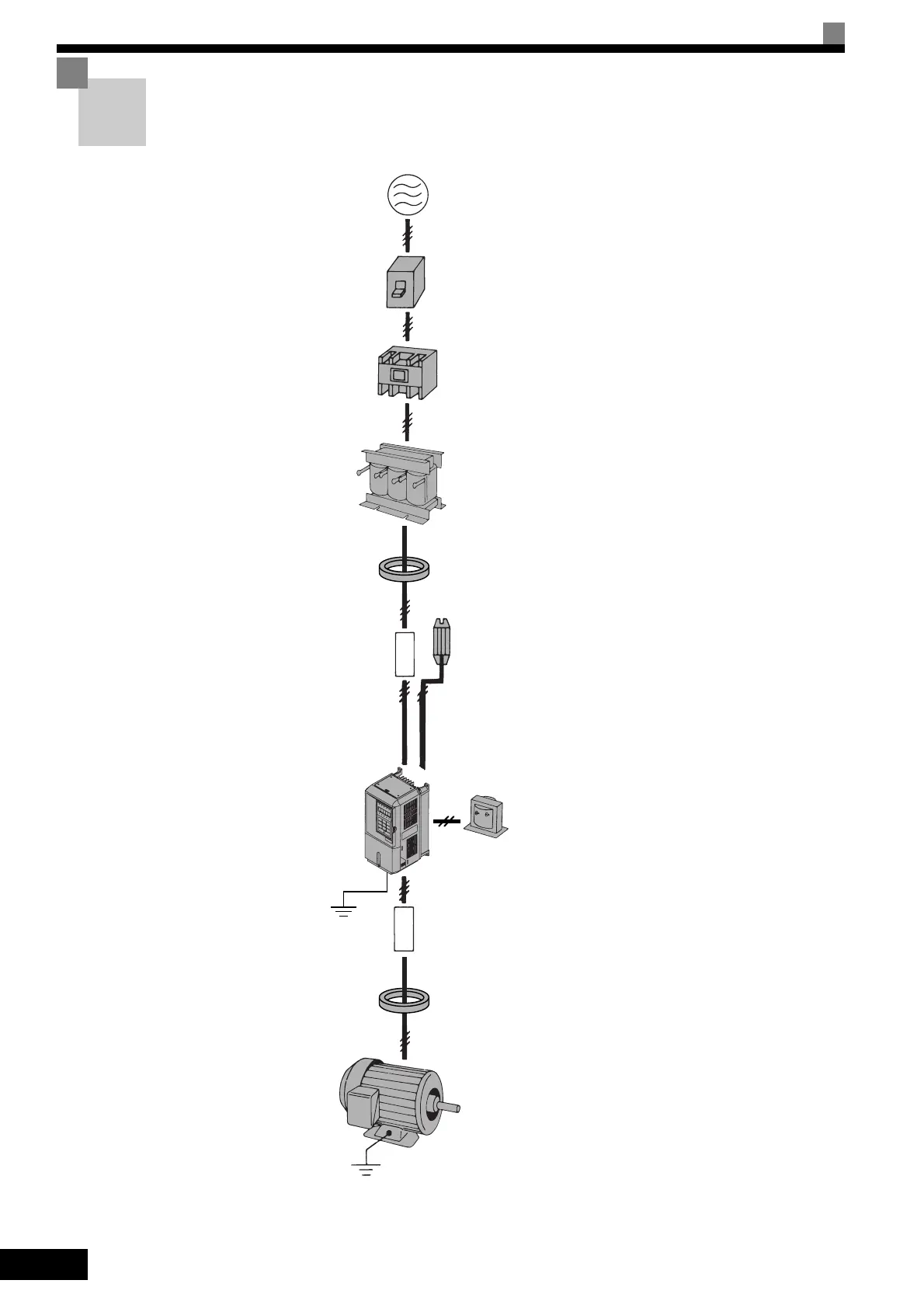

Examples of connections between the Inverter and typical peripheral devices are shown in Fig 2.1.
Fig 2.1 Example Connections to Peripheral Devices
Power supply
Molded-case
circuit breaker
or ground fault
interrupter
Magnetic con-
tactor (MC)
Zero phase reactor
Zero phase reactor
Motor
Ground
Input noise filter
Output noise filter
Inverter
Ground
Braking resistor
DC reactor for power
factor improvement
AC reactor for power
factor improvement
Varispeed F7
