7. Programming Features
159
Factory Settings
Note: Terminals S5 through S7 can be used only from DeviceNet communica-
tions. There are no corresponding external terminals.

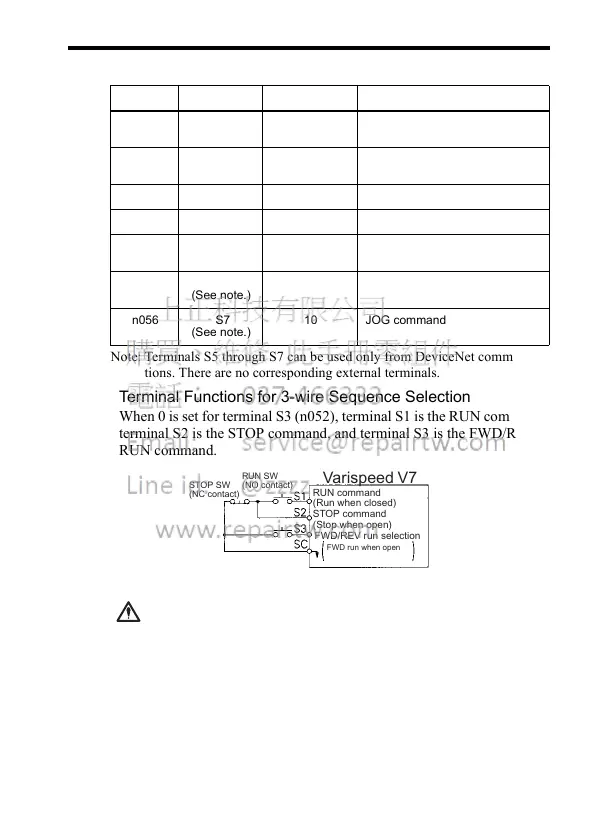

Terminal Functions for 3-wire Sequence Selection
When 0 is set for terminal S3 (n052), terminal S1 is the RUN command,
terminal S2 is the STOP command, and terminal S3 is the FWD/REV
RUN command.
To select the 3-wire sequence, set terminal S3 (n052)
to 0.
Failure to observe this warning may result in injury.
No. Terminal Factory Setting Function
n050 S1 1 FORWARD RUN command (2-
wire sequence)
n051 S2 2 REVERSE RUN command (2-
wire sequence)
n052 S3 3 External fault
n053 S4 5 Fault reset
n054 S5
(See note.)
6 Multi-step speed reference 1
n055 S6
(See note.)
7 Multi-step speed reference 2
n056 S7
(See note.)
10 JOG command
RUN command
(Run when closed)
STOP command
(Stop when open)
FWD/REV run selection
FWD run when open
REV run when closed
RUN SW
(NO contact)
STOP SW
(NC contact)
Varispeed V7
WARNING
