Yealink SIP-T43U Administrator's Guide

Phone Provisioning
98
Example: Keeping User’s Personalized Settings
This section shows you how to keep the personalized settings.
Parameters Settings:
static.auto_provision.custom.protect =1
After provisioning, if the users make changes via the phone user interface or web user interface, the MAC-local.cfg
file with non-static personal settings generates locally.

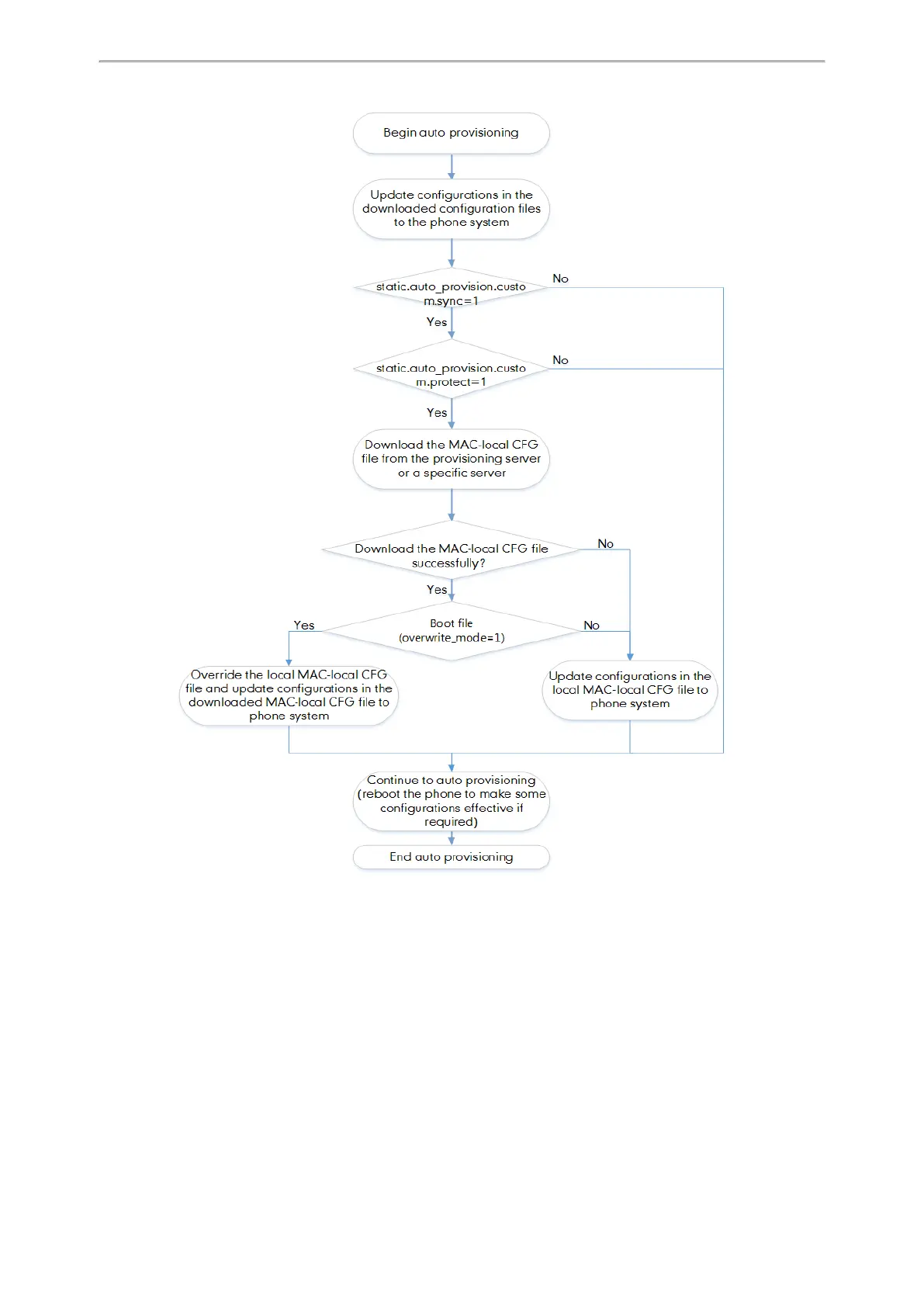

Scenario: Keeping user’s personalized settings when upgrading the firmware
If you set “ static.auto_provision.custom.sync =1 ”, then the phones attempt to upload the MAC-local.cfg file to the pro-
visioning server each time the file updates. When performing auto provisioning, they download their own MAC-

Yealink SIP-T43U Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Gray
Wall mountable	Yes
Sustainability certificates	REACH, RoHS
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Power consumption (typical)	2.2 W
Bluetooth version	4.1
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv6, LLDP/CDP/DHCP VLAN
USB 2.0 ports quantity	2
Lines quantity	12 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
Voice codecs	AGC, AJB, AMR-NB, AMR-WB, G.711Mu, G.711a, G.723.1, G.726, G.729ab, OPUS, PLC, VAD, iLBC
Number of handles included	1 pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	3.7 \
Display resolution	360 x 160 pixels
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	206.2 mm
Width	224.9 mm
Height	174.9 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
