Yealink SIP-T54S User Manual

User Guide for the SIP-T54S Media IP Phone
190

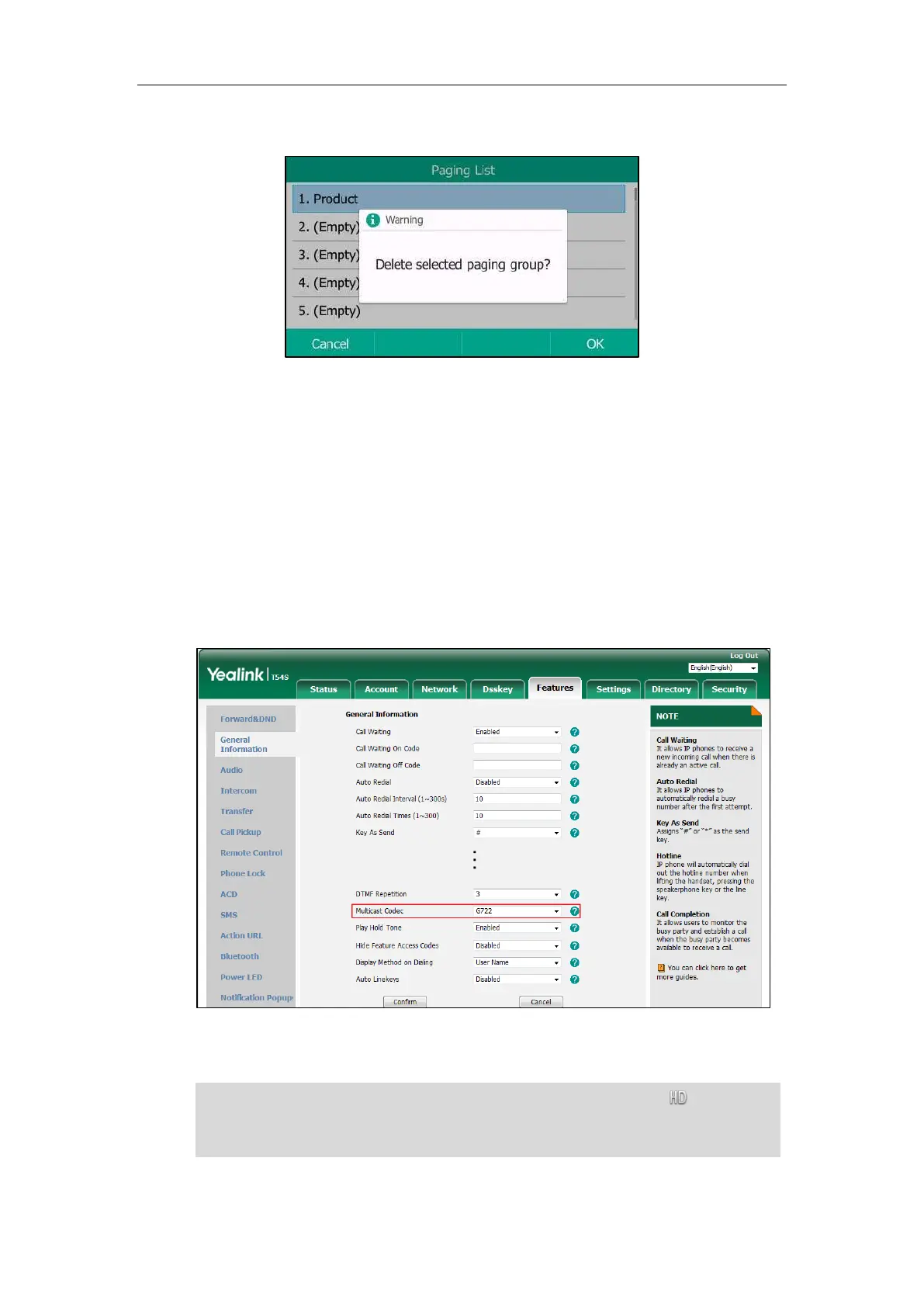

The LCD screen prompts “Delete selected paging group?”.
4. Press the OK soft key to accept the change or the Cancel soft key to cancel.
If you want to delete all paging groups, you can press the Delete All soft key.
You can also configure the phone to use a default codec for sending multicast RTP stream via
web user interface.
To configure a default codec for multicast paging via web user interface:
1. Click on Features->General Information.
2. Select the desired codec from the pull-down list of Multicast Codec.
The default codec is G722.
3. Click Confirm to accept the change.
Note
If G722 codec is used for multicast paging, the LCD screen will display the icon to indicate
that it is providing high definition voice.
Default codec for multicast paging is configurable via web user interface only.

Yealink SIP-T54S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	-
Bluetooth version	2.1+EDR
Ethernet LAN interface type	Gigabit Ethernet
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
AC adapter input voltage	100 - 240 V
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Voice codecs	G.722, G.723, G.723.1, G.726, G.729B, OPUS, iLBC
Front camera	No
Volume control	Digital
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Operating system installed	Linux

Weight and Dimensions

Depth	218.8 mm
Width	233 mm
Height	172.6 mm
