Yealink VC110 - Audio Settings

Administrator‘s Guide for Yealink VC110 Video Conferencing Endpoint
140

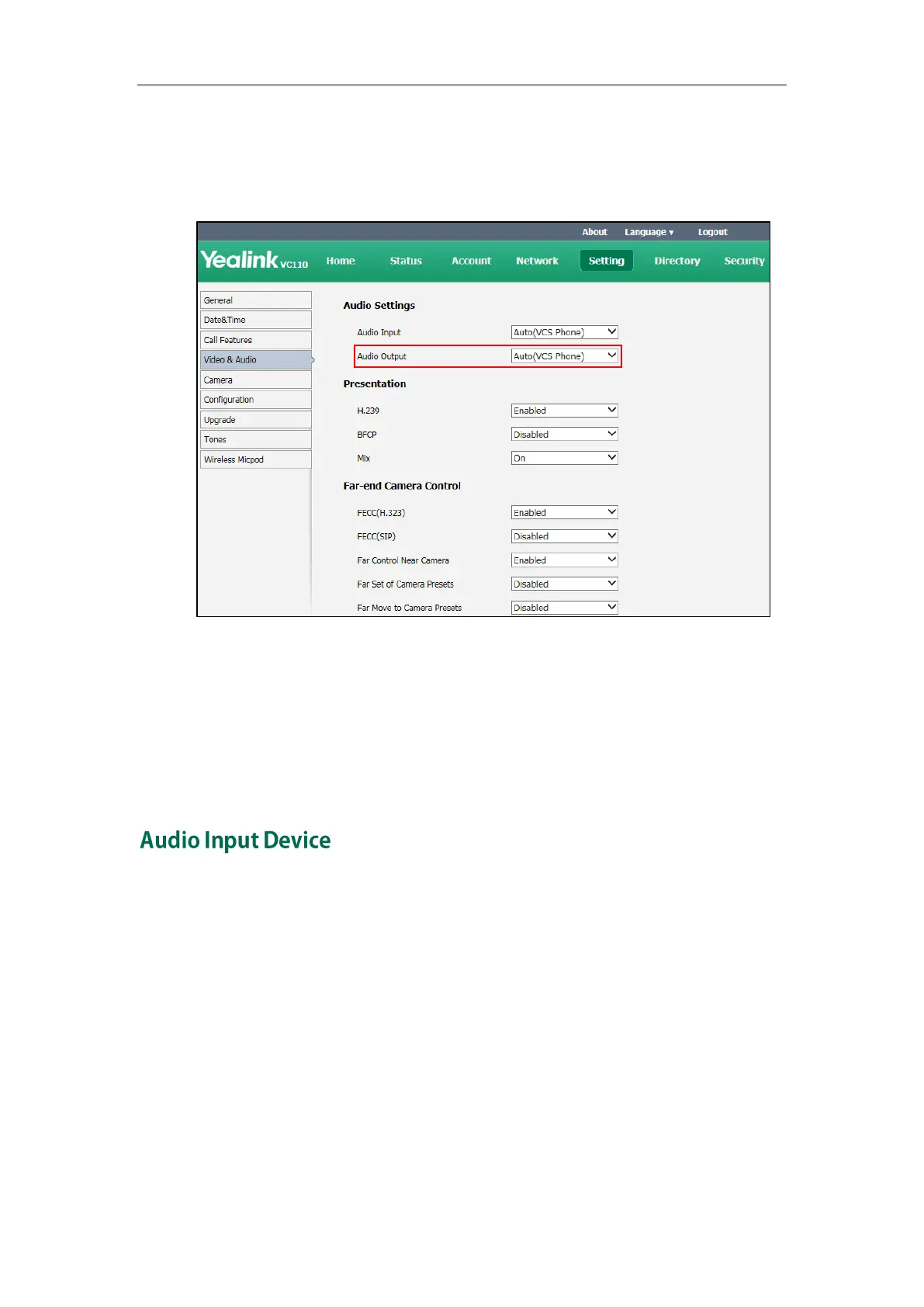

To configure the audio output device feature via the web user interface:
1. Click on Setting->Video & Audio.
2. Select the desired value from the pull-down list of Audio Output.
3. Click Confirm to accept the change.
To configure the audio output device via the remote control:
1. Select Menu->Video & Audio->Audio Settings.
2. Select the desired value from the pull-down list of Audio Output.
3. Press the Save soft key to accept the change.
The endpoint supports the following audio input devices:
 Auto (select the audio input device with highest priority)
 VCS Phone (VCP40 phone)
 Wired Micpod (VCM30)
 Wireless Micpod (VCM60)
 Built-in Micphone (built-in micphone of VC110)
 Line Input (microphone connected to the Line In port on the VC110 all-in-one unit)
 Line In + VCS Phone
 Line In + Wired Micpod
 Line In + Wireless Micpod
