Administrator‘s Guide for Yealink VC110 Video Conferencing Endpoint
162
It will prevent importing the title of the contact information which is located in the
first line of the CSV file.
6. (Optional.) Check the Delete Old Contacts checkbox.
It will delete all existing contacts while importing the contact list.

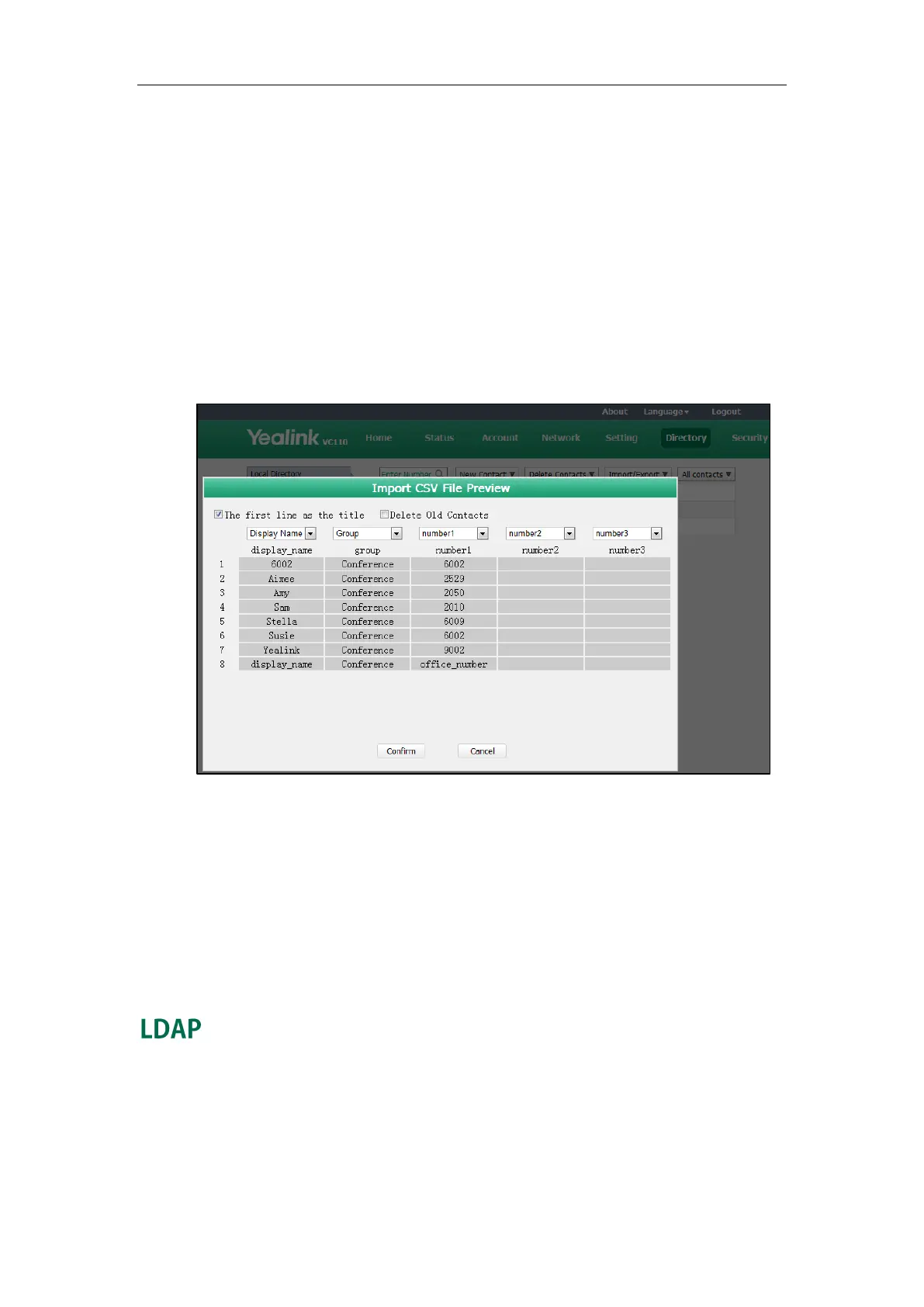

7. Select the desired value from the pull-down list.
- If Ignore is selected, this column will not be imported to the endpoint.
- If Display Name is selected, this column will be imported to the endpoint as the
contacts‘ name.
- If number1/2/3 is selected, this column will be imported to the endpoint as the
contacts‘ number.
8. Click Confirm to complete importing the contact list.
The web user interface prompts "Contacts imported successfully!".
To export a XML/CSV file of the contact list via the web user interface:
1. Click on Directory->Local Directory.
2. Click Import/Export, and select Export XML or Export CSV.
3. The contact list is saved to your local endpoint.
LDAP (Lightweight Directory Access Protocol) is an application protocol for accessing
and maintaining information services for the distributed directory over an IP network.
Yealink VC110 endpoint is configurable to interface with a corporate directory server
that supports LDAP version 2 or 3. The following LDAP servers are supported:

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
