(4) Z Analysis Setting
Set the analysis method for multi-Z images. Either one in following
table must be selected.
3D image generated from Multi-Z images is analyzed
MIP image generated from Multi-Z images is analyzed
MIP is a function to build a single image by putting together pixels
associated with the largest signals (smallest signals in transmission
illumination image) among identical pixels from multiple image data
captured on the confocal plane in the Z-axis direction
It is able to display and analyze 3D objects as one image
Sum image generated from Multi-Z images is analyzed
Sum is a function to create a single image by putting together pixels
associated with the summation signals among identical pixels from
multiple image data captured on the confocal plane in the Z-axis
direction
It is able to display and analyze 3D objects as one image
It is efficient if fluorescent intensity of sample is low
Select Z slice images to analyze
Select all Z slices for analysis target

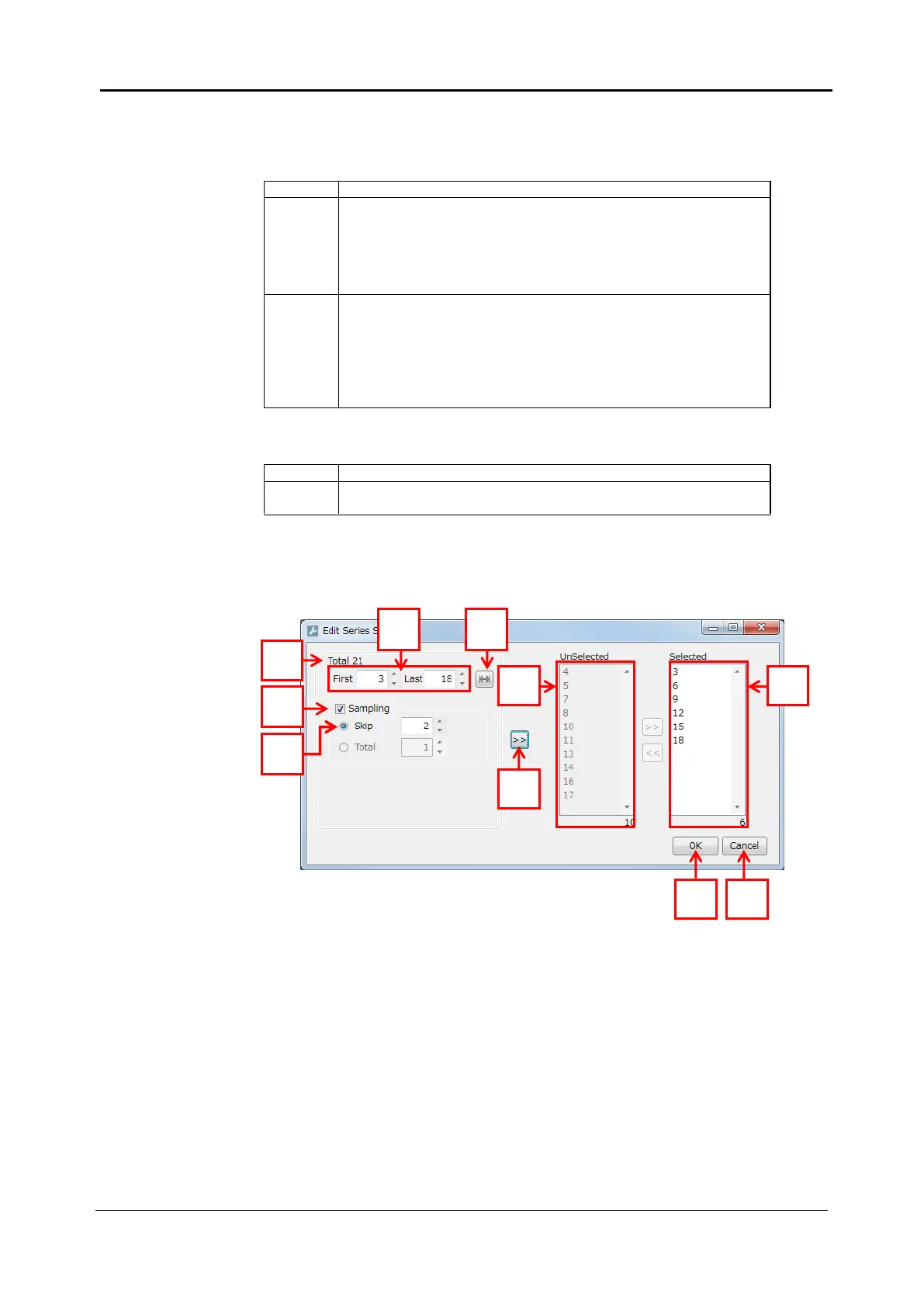

Select Z slices for analysis target by following menu opened by
“Option” button
Click “Option” button and select Z slices for analysis target by following
menu.
Total
Show all acquired Z slices number.
Range selection
Set range of Z slices to select for analysis target.
All range selection
Set whole range of Z slices to select for analysis target.
Sampling
Select Z slices for analysis target by interval designated by “Skip”.
Skip
Input interval of Z slices selection.
